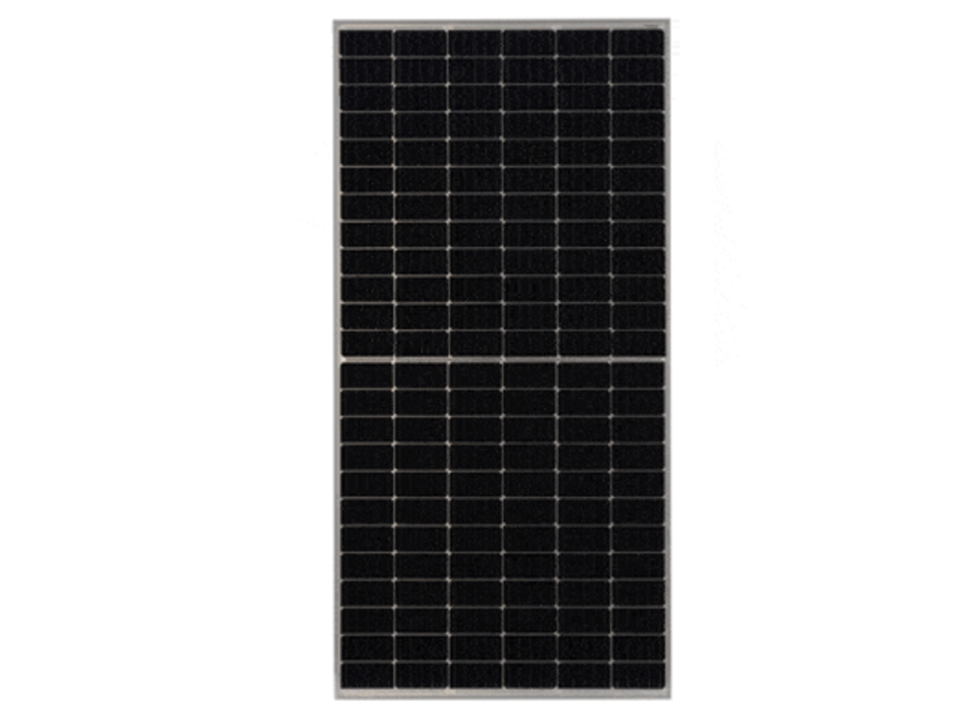

550W JA Solar Mono PERC Half-Cell MBB MC4 with 30mm frame thickness Solar Panel
#1: JAM72S-30-550-MR-F30-EVO2
JA Solar 550W Data Sheet
JA Solar 550W Manual
JA Solar 550W Warranty
JA Solar 550W MCS
Minimum order for this panel: 5 panels.
For orders with no minimum please visit our Single Panels page.
Other panels have a minimum order of 4 or 5 panels.
Automatic discount for 14+: 5%/panelAutomatic discount for 22+: 6%/panelAutomatic discount for 30+: 7%/panel
Please note: volume discount is not in addition to trade discounts.
*Collections are not permitted due to health & safety regulations*
*Please note, due to the size of these panels they can only be hand lifted off by the customer.
JAM72S30 is the latest in JA Solar's 72-cell range. This module with its 11-bus-bar half-cell configuration can reach a peak power output of 550W. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range include:
This module The frame thickness for this module has been improved from 35mm to 30mm.is equipped with Staubli MC4 connectors.
The panel has a design life of 25 years and a 12-year warranty period.
Weight: 28.1 kgRated Power: 550 WMCS Reference: BABT 8515-218-545WLength: 2,278 mmWidth: 1,134 mmDepth: 30 mmVMPP: 41.96 VIMPP: 13.11 AIsc: 14 AVoc: 49.9 VTemp. Coefficient (Mpp): -0.35 %Clamp position on panel: Long side onlyConnector Type: MC4Efficiency: 21.3 %Pallet Size: Oversized
