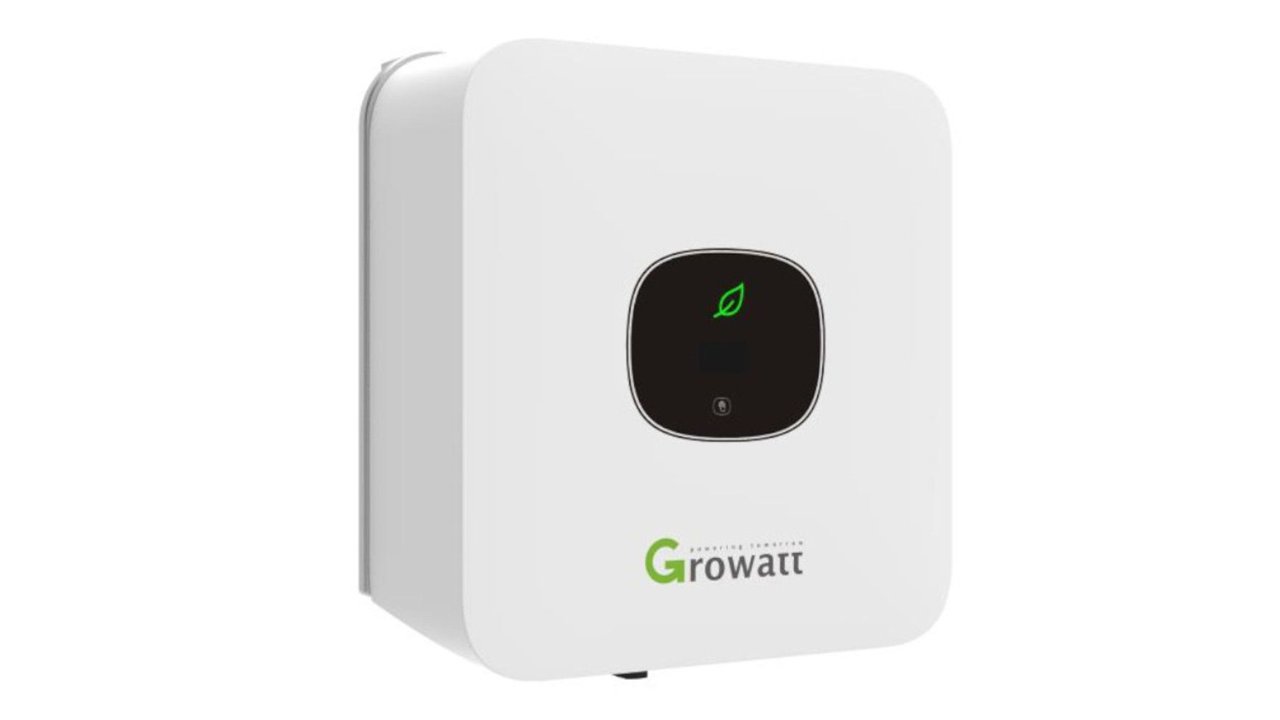

GROWATT MIC 1000TL X Single MPPT with DC Solar Inverter
#1: GROWATT-MIC1000-TL-X-DC Inverters - Main Units
GROWATT 2000TL X Data Sheet
GROWATT 2000TL X Manual
GROWATT 2000TL X Warranty
GROWATT 2000TL X G100 Certificate
*Collections are not permitted due to health & safety regulations*
GROWATT 2000TL X Single MPPT
Rating: 1,000W
Phases: 1
Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.
The Growatt inverter range has the following leading-edge technology.
- MPPT tracking accuracy of 99%
- Max. Efficiency 97.6%, European Efficiency 96.5%
- Transformerless design, offer lighter and more convenient installation
- Power factor continuously adjustable
- Flexible interface
- Touch key & OLED display
This is the Non-DC version
Weight: 6.5 kg
Rated Power: 1,000 W
Min PPT Voltage: 50 V
Max PPT Voltage: 500 V
DC Startup Voltage: 50 V
DC Shutdown Voltage: 50 V
Max Input Voltage: 500 V
Max DC Power: 1,400 W
Max AC Power (5 Minutes): 1,000 W
Surge AC Power (1 Second): 1,000 W
Max DC Current: 13 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 1
Euro Efficiency: 96.5 %
Transformer: None
MPPT Quantity : 1
Has Integrated DC Switch: Yes
Warranty: 10 years
