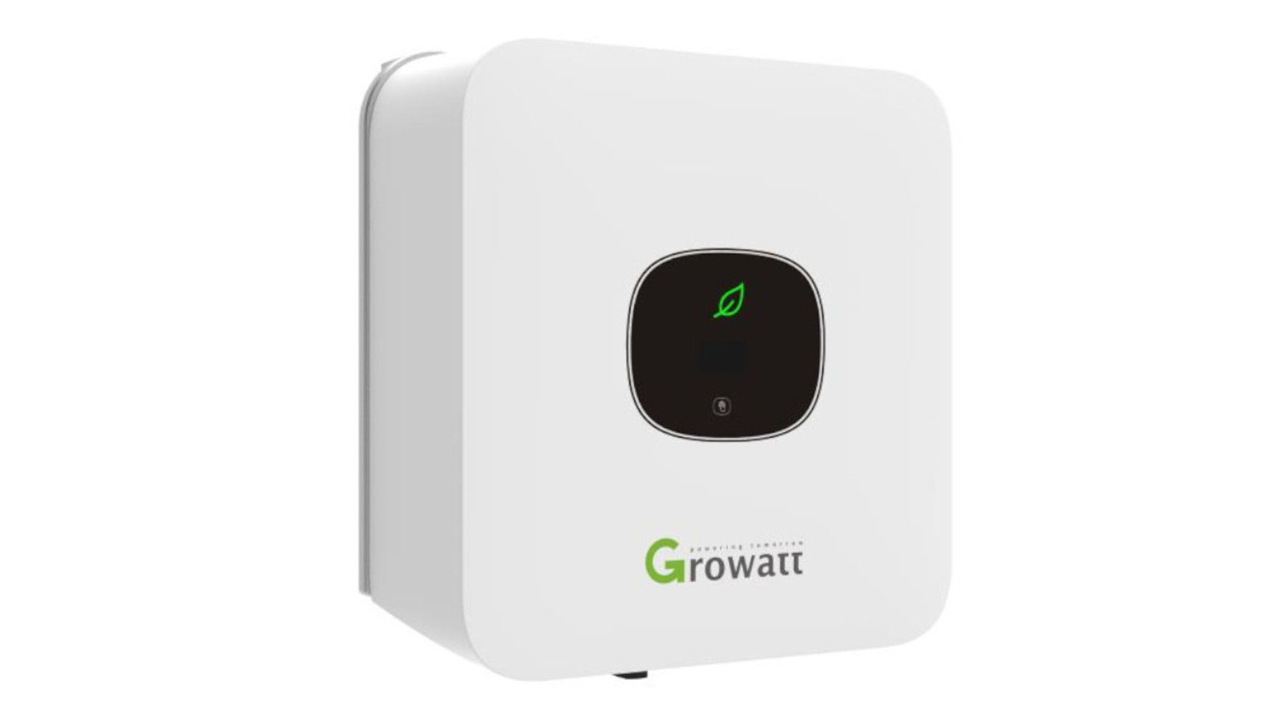

GROWATT MIC 2500TL X Single MPPT with DC
Rating: 2,500W
Phases: 1
Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.
The Growatt inverter range has the following leading-edge technology.
- MPPT tracking accuracy of 99%
- Max. Efficiency 97.6%, European Efficiency 96.5%
- Transformerless design, offer lighter and more convenient installation
- Power factor continuously adjustable
- Flexible interface
- Touch key & OLED display
Weight: 6 kg
Rated Power: 2,500 W
Min PPT Voltage: 80 V
Max PPT Voltage: 550 V
DC Startup Voltage: 80 V
DC Shutdown Voltage: 65 V
Max Input Voltage: 550 V
Max DC Power: 2,800 W
Max AC Power (5 Minutes): 2,500 W
Surge AC Power (1 Second): 2,500 W
Max DC Current: 13 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 1
Euro Efficiency: 97 %
Transformer: None
MPPT Quantity : 1
Has Integrated DC Switch: Yes
Warranty: 10 years
