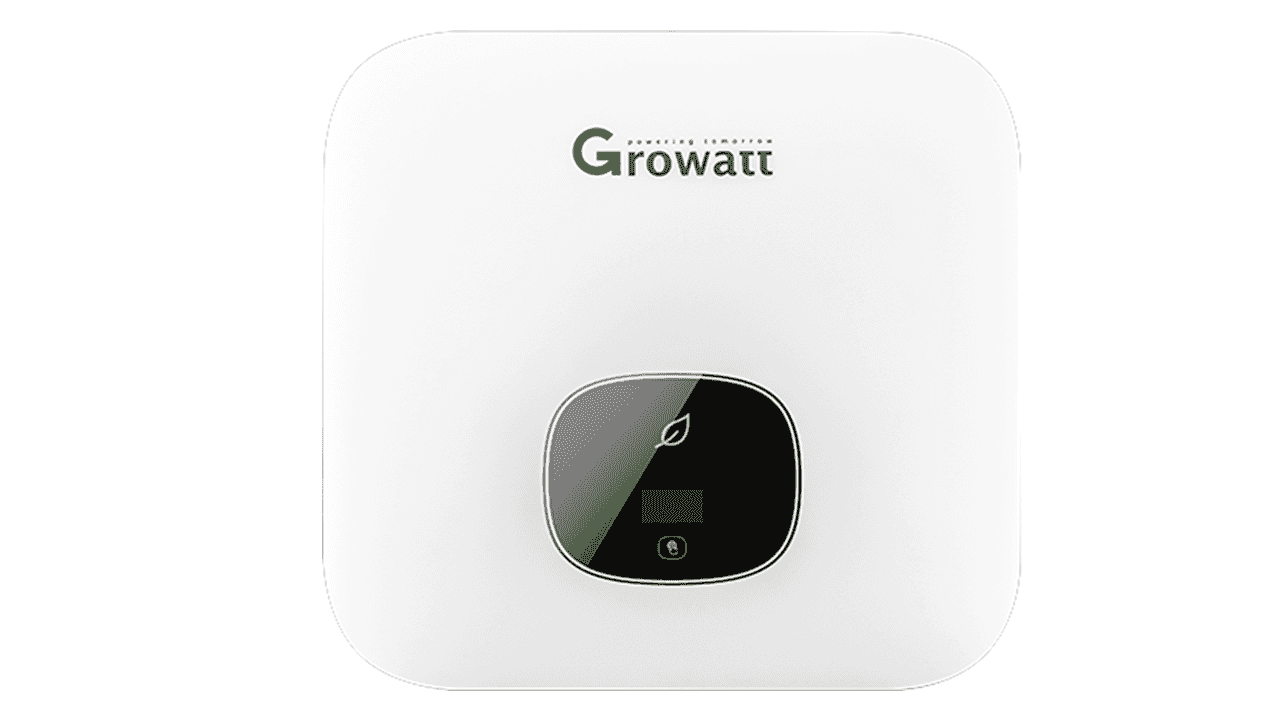

Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.
The Growatt inverter range has the following leading-edge technology.
MPPT tracking accuracy of 99%
Max. Efficiency 97.6%, European Efficiency 96.5%
Transformerless design, offer lighter and more convenient installation
Power factor continuously adjustable
Flexible interface
Touch key & OLED display
This is the Non-DC version
UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. It means all installers will need to register an ‘Installer Code’ for using the Growatt monitoring platform. This installer code can be provided to the end user by the installer to allow for the viewing of your customers devices from your installer-level monitoring account.
Please note: In order to achieve anti reflux function on TL-X and TL-XE range, you must use Meter SPM-E. Using a CT clamp to try and achieve this is not possible. Please contact us for more details.
Weight: 6 kg
Rated Power: 3,000 W
Min PPT Voltage: 80 V
Max PPT Voltage: 550 V
DC Startup Voltage: 80 V
DC Shutdown Voltage: 65 V
Max Input Voltage: 550 V
Max DC Power: 3,500 W
Max AC Power (5 Minutes): 3,000 W
Surge AC Power (1 Second): 0 W
Max DC Current: 13 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 0
Euro Efficiency: 97.1 %
Transformer: None
MPPT Quantity : 1
Has Integrated DC Switch: Yes
Warranty: 10 years
