Growatt MOD 6000 TL3-X Three Phase Inverter £570 +VAT

£683.45 incl. VAT

Growatt MOD 6000 TL3-X Three Phase Inverter £570 +VAT

£683.45 incl. VAT
Contact Us
Product description

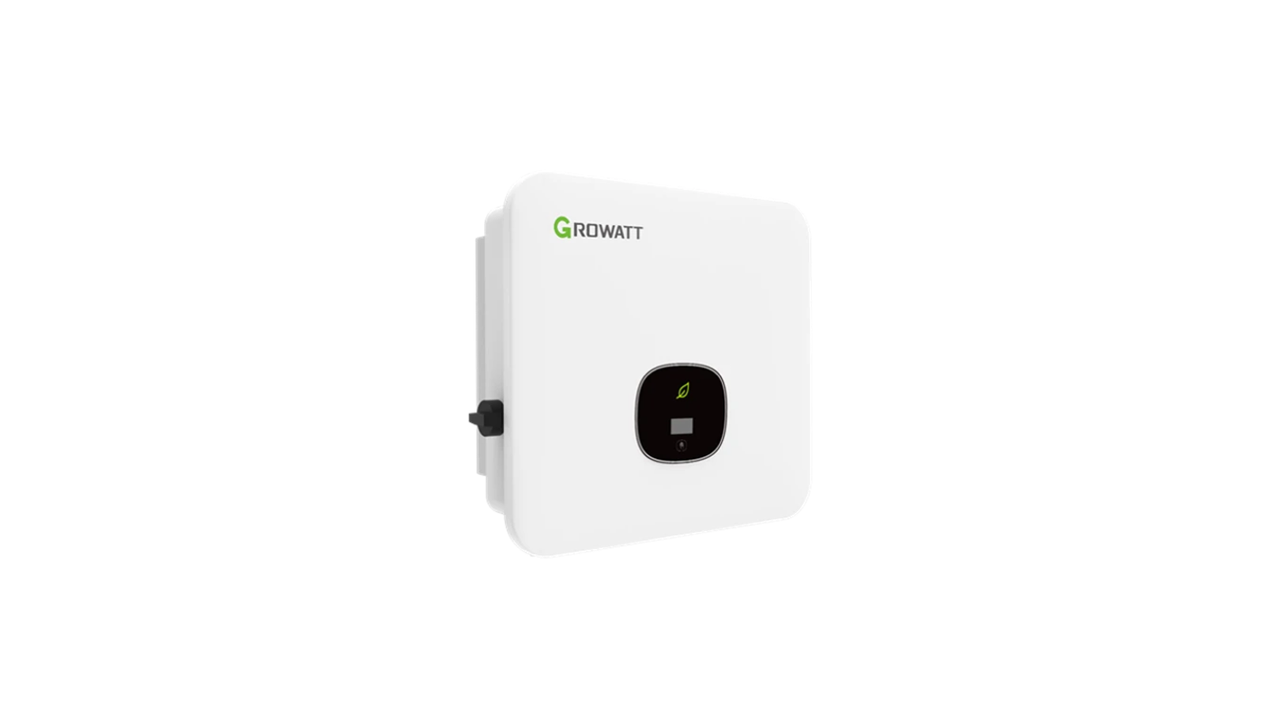

Growatt MOD 6000 TL3-X Three Phase Inverter



#3: 4242


Pdf free icon Growatt 6000 TL3-X Datasheet

Pdf free icon Growatt 6000 TL3-X Manual



Pdf free icon Growatt 6000 TL3-X Quick Guide



Pdf free icon Growatt 6000 TL3-X System Guide



Pdf free icon Growatt 6000 TL3-X Warranty



*Collections are not permitted due to health & safety regulations*

The Growatt TL3-X series are compact and light three phase inverters. This range is best suited for larger 3-phase residential systems and smaller commercial systems. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, suitable for connecting two different panel arrays.

The ultra-low start-up and wide working voltages enable wider power generation windows.

Features

  • Compact design
  • Easy install
  • Efficiency: 98.3%
  • Dual independent MPPTS
  • Built-in DC switch
  • OLED display and Touch button
  • String monitoring
  • AFCI Optional
  • IP66 rated
  • 5 year warranty / 10 year extended

Specs

  • Weight: 12.5kg
  • Max AC Power: 6,000W
  • Max AC Current: 10.0A
  • Number of phases: 3
  • Max DC Power: 9,000W
  • Max Isc current: 16A
  • Max Voltage: 1000V
  • Start up voltage: 160V
  • Number of MMPT: 2
  • V range of  MMPT: 140 - 1000V
  • Dimensions (HxWxD): 425*387*178mm
