Product description

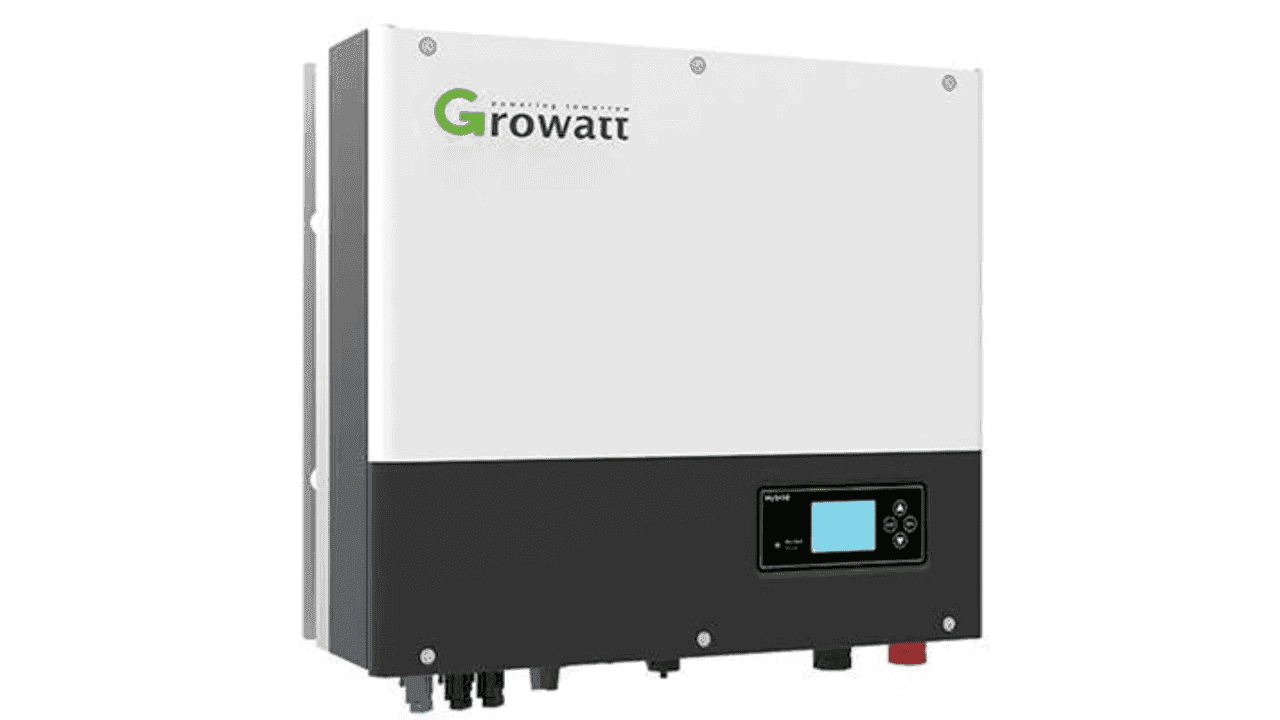

Growatt SPH 5kW Dual MPPT Hybrid Inverter



#3: 5548


Pdf free icon 5kW Growatt Datasheet

Pdf free icon 5kW Growatt Manual


*Collections are not permitted due to health & safety regulations*


The Growatt SPH BL-UP 3kW hybrid inverter enables design flexibility with 2 MPPTs  and an IP65 rating that allows for the inverter to be installed outside.

The SPH BL-UP comes with EPS functionality built in, with <10ms changeover time keeping the power on during blackouts. The SPH BL-UP can be paired with up to 6 x 3.3kWh ML33TRA (19.8kWh) or 4 x 6.5kWh GBLI batteries (26kWh).


Key features


  • Flexible
    • Storage ready solution, batteries can be added later.
    • Dynamic feed-in control.
    • Settable charging and discharging times.
  • Reliable
    • Natural cooling, no additional fans.
    • Integrated backup feature, 0.5s transfer time.
  • Enhanced Safety
    • Smart battery management ensures battery safety.
    • Comprehensive whole system protection


Max DC Power: 8000W
Max DC Voltage: 550V
Start-up Voltage: 120V
No. Mpp Trackers: 2
Max Mpp Current: 12A
Max power: 4999W
Max current: 22A
Number of phases: 1
Max Power Output: 3000W
Rated Output Current: 13A
Switch Time: <550ms
Protection Rating: IP6
Weight: 27Kg
Dimensions (HxWxD): 547*516*170mm
