Current Transformer 200A (incl. fly lead)
#1: CT-200A Display - Current Sensor Clamps

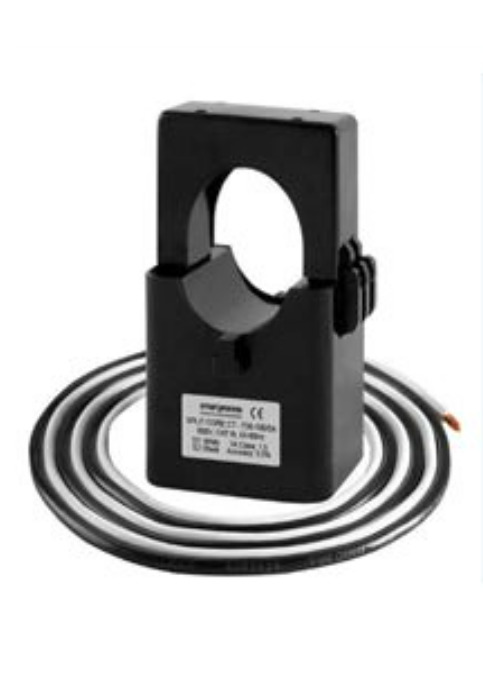

200A Split Core Current Transformer Clamp – SCT24 200/5
The SCT24 200/5 Split Core Current Transformer (CT) is a precision-engineered current sensor clamp, designed for accurate monitoring of electrical systems in solar, energy management, and industrial applications. With ±1% accuracy and robust build quality, it is ideal for integration with metering, display systems, and load monitoring equipment.
Key Features
-
High Accuracy: ±1% measurement accuracy between 20% – 120% of rated current.
-
Wide Application Range: Suitable for power metering, energy monitoring, and system integration.
-
Split-Core Design: Easy installation without disconnecting existing wiring.
-
Durable Build: Case made from flame-retardant PC / UL94-V0 with epoxy internal structure for reliability.
-
Safe & Reliable:
-
Insulation voltage: 600V AC
-
Maximum primary voltage: 5000V AC
-
Dielectric strength: 2.5KV / 1mA / 1min
-
Versatile Performance: Operates across 50–60Hz frequency with wide temperature tolerance.
Technical Specifications
-
Model / Part No.: SCT24 200/5
-
Current Rating: 200A primary / 5A secondary
-
Frequency Range: 50–60Hz
-
Accuracy: ±1% (20% – 120% of rated current)
-
Insulation Voltage: 600V AC
-
Maximum Primary Voltage: 5000V AC
-
Dielectric Strength: 2.5KV / 1mA / 1min
-
Operating Temperature: -15°C to +60°C
-
Operating Humidity: <85%
-
Case Material: PC / UL94-V0 flame-retardant
-
Bobbin Material: PBT
-
Core Material: Permalloy
-
Internal Structure: Epoxy encapsulated
-
Design: Split Core with fly lead
Applications
-
Solar inverters and battery storage systems
-
Energy monitoring & management systems
-
Smart metering and display integration (compatible with Landis and similar displays)
-
Industrial equipment monitoring
-
Building energy efficiency projects
👉 The 200A Split Core CT Clamp offers a safe, reliable, and accurate solution for monitoring energy consumption and current flow, making it a trusted choice for both solar and electrical professionals.
