SolarEdge

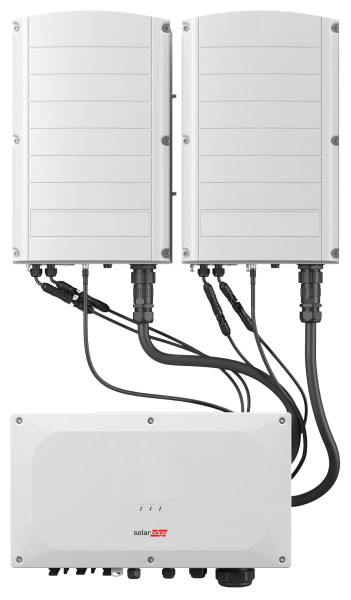

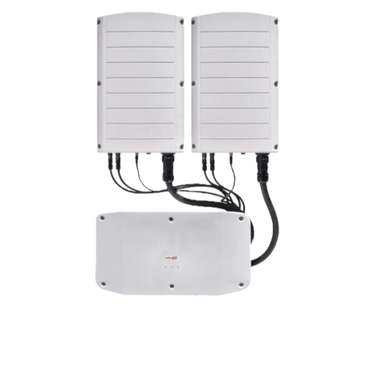

90kW Synergy Manager SWITCH DC Switch, MC4, DC SPD] #2: SE-90000-SWITCH-FULL Inverters - Main Units SolarEdge 90kW Datasheet SolarEdge 90kW Manual SolarEdge 90kW Warranty     Three Phase Synergy Inverter – 90kW The Three Phase Synergy Inverter is a high-performance, modular inverter designed for large-scale commercial and industrial PV systems. With advanced safety features, superior efficiency, and simplified installation, it delivers maximum energy output while reducing downtime and installation costs. 🔑 Key Features Efficient & Reliable Operation 90kW rated power with 98% Euro efficiency Modular design with independent Synergy Units for higher uptime and easier servicing Built-in PID mitigation to maximise system performance Advanced Safety & Protection Pre-commissioning feature for automated system validation before grid connection Integrated thermal sensors detect faulty wiring for enhanced protection Built-in arc fault protection with optional rapid shutdown Monitored, field-replaceable surge protection devices (Type 2 DC SPDs included, optional Type 2 AC SPD) Installation Made Easy Lightweight modular units allow easy 2-person installation Integrated DC safety switch removes the need for external DC isolators Plug-and-play wiring and smart monitoring for faster commissioning ⚙️ Technical Specifications Rated Power: 90,000 W Max DC Power: 45,000 W Max AC Power (5 Minutes): 90,000 W Surge AC Power (1 Second): 90,000 W Max Input Voltage: 1,000 V Max DC Current: 43.5 A Max DC Inputs: 9 Efficiency (Euro): 98 % Connector Type: MC4 (18 included) Weight: 114 kg Transformer: None (transformerless) Integrated DC Switch: Yes Warranty: 12 years ✅ Benefits Lower installation costs with modular, lightweight design Improved reliability thanks to independent Synergy Unit operation Maximum uptime with fast serviceability Enhanced system safety with built-in protection features Designed for large-scale commercial & industrial solar PV systems

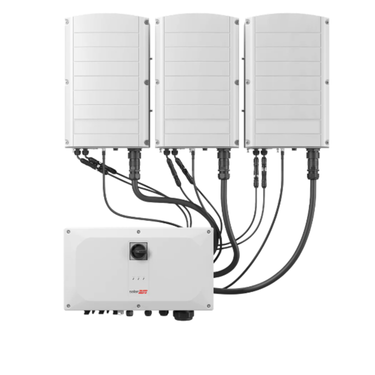

100kW Synergy Manager SWITCH DC Switch, MC4, DC SPD #1: SE-100000-SWITCH-FULL Inverters - Main Units SolarEdge 100kW Datasheet SolarEdge 100kW Manual SolarEdge 100kW Warranty   SolarEdge Three Phase Synergy Inverter – 100kW The SolarEdge Three Phase Synergy Inverter is a high-capacity, modular solution engineered for large-scale commercial and industrial solar installations. Designed for ease of installation, maximum safety, and superior uptime, this inverter combines advanced monitoring with scalable power. With its lightweight modular design, independent Synergy Unit operation, and integrated safety features, the Synergy Inverter is a trusted choice for businesses looking to optimise solar energy performance and reduce operational downtime. ⚡ Key Features Pre-Commissioning Validation – Automated system checks before grid connection ensure fast and reliable installation. Modular & Lightweight Design – Easy 2-person installation with 2–3 Synergy Units plus a Synergy Manager. High Uptime & Serviceability – Independent Synergy Unit operation allows continuous energy production and easy maintenance. Built-In Safety Protections – Thermal sensors detect faulty wiring; integrated arc fault protection and optional rapid shutdown. PID Mitigation – Built-in Potential Induced Degradation (PID) protection ensures long-term performance. Advanced Surge Protection – Integrated RS485 and Type 2 DC SPDs, with optional Type 2 AC SPD. Integrated DC Safety Switch – Eliminates the need for additional external DC isolators. 🔧 Technical Specifications Rated Power: 100,000 W (100 kW) Weight: 114 kg Max Input Voltage: 1,000 V Max DC Current: 144.75 A Connectors: MC4 (12 included) DC Fuses: 12 Euro Efficiency: 98% Integrated DC Switch: Yes Warranty: 12 years 🌍 Applications Large-scale commercial rooftop solar systems Industrial solar energy projects Utility-scale PV installations Systems requiring maximum uptime and robust safety features 👉 The SolarEdge Three Phase Synergy Inverter delivers reliable, scalable, and efficient power conversion for large solar PV projects. Its modular build ensures simplified installation, improved serviceability, and long-term energy optimisation.

SolarEdge Home Battery V2 10kWh 1ph package #2: SE-BATTERY02-10KWH-PACK Storage Systems - Li-ion Battery System SolarEdge V2 10kWh Datasheet SolarEdge 10Kwh Installation Manual Branch Connector required for adding additional battery SolarEdge Energy Bank 10kWh V2 Battery is specifically designed to complement SolarEdge StorEdge with HD-Wave/Home Wave technology inverters. It integrates with the entire SolarEdge residential offering, for a seamless user experience. This V2 10kWh Single phase battery bundle consists of: 1 x SolarEdge Home Battery - 1PH 400V 9.7kWh Battery v02 (SE-BATTERY02-10KWH) 1 x PH/3PH 230/400V SolarEdge Energy Meter K2 with Modbus Connection (SE-WND-3Y400-MB-K2) 1 x SolarEdge Handles for Manoeuvring Home Battery 400V (IAC-RBAT-HANDLE-01) 1 x 100A Split-Core Current Transformer for SolarEdge Energy Meter with Modbus Connection (SE-CT-SPL-100A-A) 1 x SolarEdge Branch Connectors for Home Battery 400V (IAC-RBAT-RWYCBL-01) To connect the battery to your inverter, you'll need the appropriate plug, dependent on the inverter type: For SetAPP Inverters: ENET-HBCL-01 For NET Inverters: ENET-HBNP-01 The package includes the Energy Net Plug-In for SetApp inverters, 4 handles for easy carrying, a pair of Staubli MC4 Y connectors (useful if the PV inverter has only 1 pair of DC inputs), and optional accessories for floor mounting. Please note that ancillaries provided may not be needed for every installation, so it's recommended to review and remove any items not required. If your installation already has a SolarEdge Modbus meter, the additional meter in this system is not necessary.
