Solis 0.7kW Mini S6 Single Tracker with DC isolator
#2: SOL-0.7-MINI-S6-DC
#4: S5-GR1P0.7K-M-DC
Solis Inverter 0.7kW Data Sheet
Solis Inverter 0.7kW Manual
Solis Inverter 0.7kW Warranty
Solis Inverter 0.7kW G100 Certificate
For remote monitoring: Solis Data Logging Stick.
For additional 10 year warranty - click here

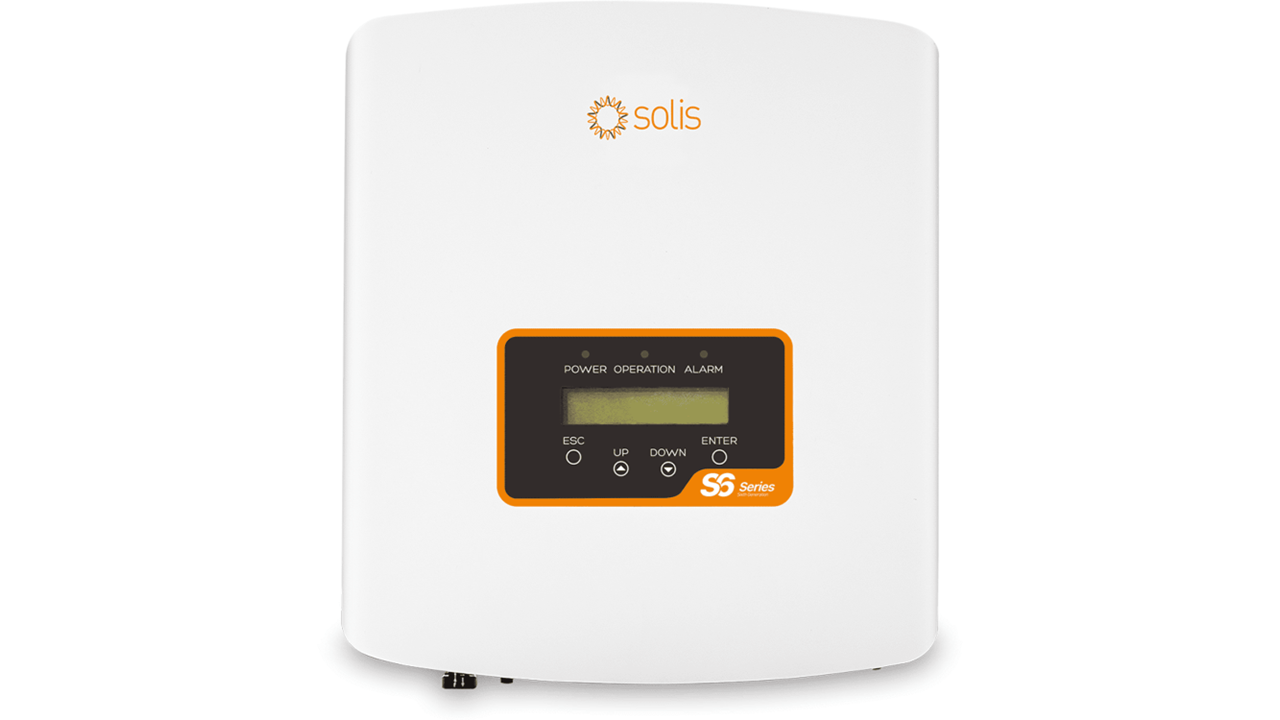

Solis Mini 6S 700W Grid-Tie Inverter – Compact, Quiet & Reliable
The Solis Mini 6S Series 700W Grid-Tie Inverter is the perfect solution for small-scale residential solar systems. Designed with a compact and lightweight build, it allows for quick and easy installation while operating quietly at less than 20 dBA thanks to its fanless cooling system.
This inverter is fully compatible with high-efficiency solar modules and bifacial panels, ensuring maximum energy production for your home.
🔑 Key Features
-
Compact & Lightweight – Easy installation and space-saving design
-
Ultra Quiet – Fanless cooling keeps noise levels under 20 dBA
-
High Efficiency – Super high-frequency switching with 96.6% maximum efficiency
-
Smart Grid Ready – Integrated DRM (Demand Response Mode) with backflow power control
-
Wide Voltage Range – Ultra-low 60V startup and up to 600V input
-
Built-in Safety – Integrated AFCI arc-fault protection and DC switch for safe maintenance
-
Export Power Manager (EPM) – Ensures smooth power export and grid compliance
-
Reliable Warranty – 5 years standard warranty for peace of mind

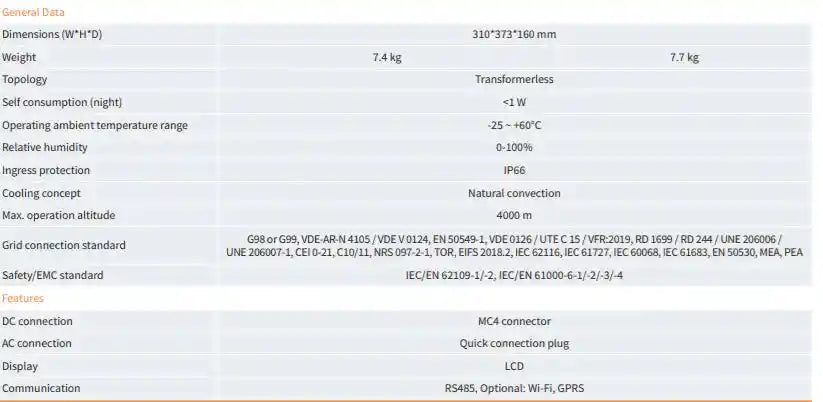

⚙️ Technical Specifications
-
Weight: 7.4 kg
-
Rated Power Output: 700 W
-
Max DC Power: 1,100 W
-
MPPT Voltage Range: 60 – 500 V
-
Startup Voltage: 60 V
-
Shutdown Voltage: 50 V
-
Max Input Voltage: 600 V
-
Max AC Power (5 Minutes): 770 W
-
Surge AC Power (1 Second): 770 W
-
Max DC Current: 14 A
-
DC Inputs: 1 (MC4 connector included)
-
Euro Efficiency: 95%
-
MPPT Trackers: 1
-
Integrated DC Switch: Yes
-
Design: Transformerless for reduced weight and improved efficiency
⚡ The Solis Mini 6S 700W Inverter is a cost-effective, efficient, and ultra-quiet choice for residential solar PV systems – delivering long-term performance and reliability.
