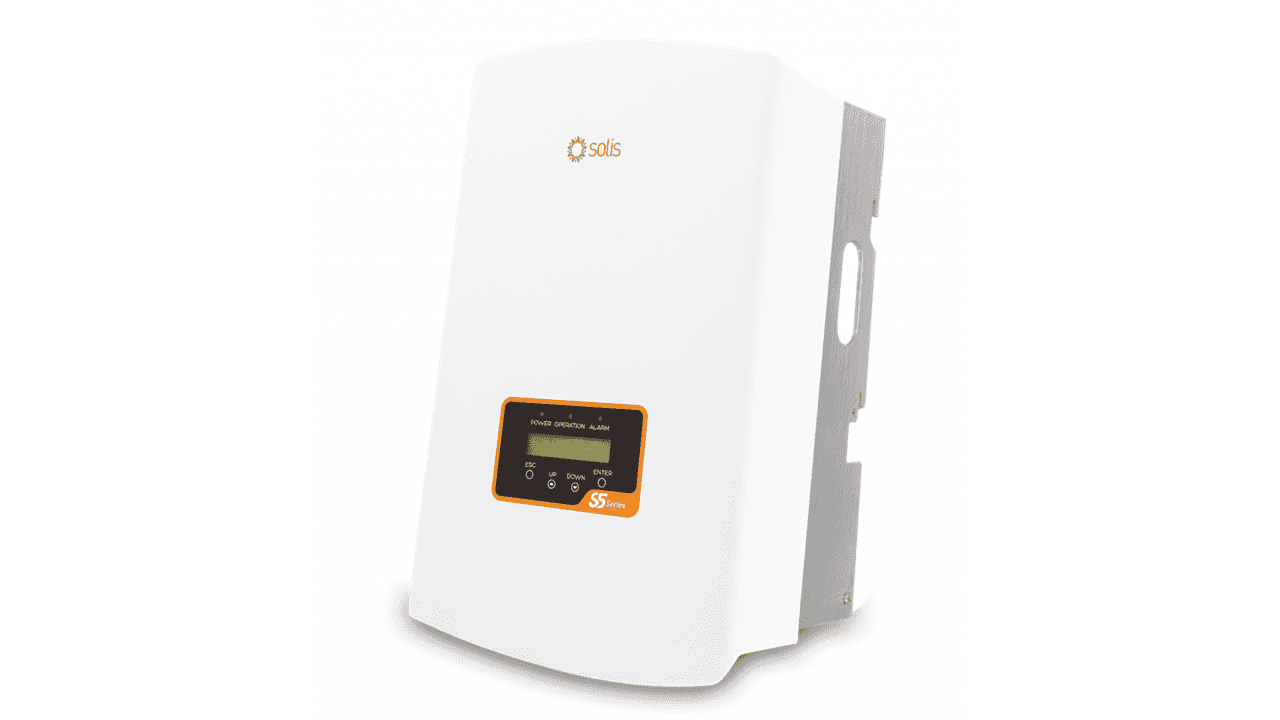

Solis S6 is the latest generation of residential inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.
Features
- Maximum string input current 14A
- Easy installation: Integrate with export power control function and DRM function.
- Max. Efficiency over 97.7% European efficiency over 97.1%
- Wide input voltage range for better generation and low startup
- Dual MPPT design with precise MPPT algorithm
- Export Limitation built in - Requires CT clamp (sold separately)
- Integrated AFCI (DC arc-fault circuit protection)
- Rated IP66
With built in DC switch.
Specs
- Weight: 11.2 kg
- Rated Power: 3,000 W
- Min PPT Voltage: 90 V
- Max PPT Voltage: 520 V
- DC Startup Voltage: 120 V
- DC Shutdown Voltage: 90 V
- Max Input Voltage: 600 V
- Max DC Power: 4,500 W
- Max AC Power (5 Minutes): 3,300 W
- Surge AC Power (1 Second): 3,300 W
- Max DC Current: 28 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 2
- Euro Efficiency: 96.6 %
- Transformer: None
- MPPT Quantity : 2
- Has Integrated DC Switch: Yes
- Warranty: 5 years
