Solis 6kW Hybrid 5G Energy Storage Inverter with DC switch for solar battery storage

Solis 6kW Hybrid Energy Storage Inverter

#2: SOL-6K-RHI-48ES-5G-DC Storage Systems - Hybrid Inverter
#4: S5-EH1P6K-L

Solis 6kW Data Sheet

Solis 6kW User Manual

Solis 6kW Warranty

Solis 6kW G99 Certification

For additional 5 year warranty click here.

Solis S5-EH1P6K-L Hybrid Inverter – Backup & Peak-Shaving Energy Solution

The Solis S5-EH1P6K-L is part of the new 5G Hybrid Inverter range, designed to deliver efficient solar energy management, load shedding support, and peak demand savings. Ideal for both residential and commercial applications, this inverter comes with a fanless IP65 design, intelligent BMS, and advanced energy management features.

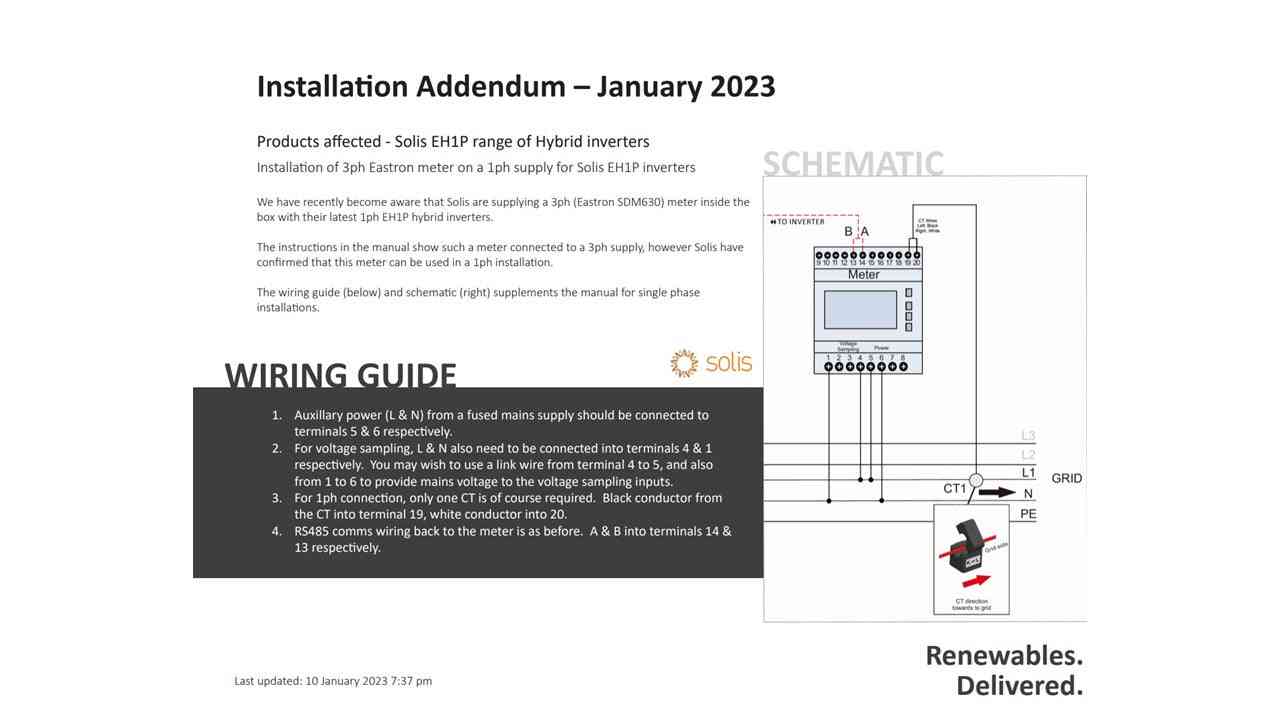

Note: This product includes a 3-phase Eastron SDM630 energy meter and CT clamp, which can also be used for single-phase installations, providing flexibility and easy setup.

Key Features & Benefits

✔ Efficient & Reliable

• Fanless IP65-rated design for quiet and weather-resistant operation.

• High charge and discharge efficiency for optimal energy usage.

• Two MPPTs for maximum solar harvest.

✔ Intelligent Energy Management

• 24-hour real-time monitoring and energy management.

• Supports multiple work modes to maximise self-consumption.

• Intelligent BMS function ensures safe battery operation.

✔ Smart & Flexible

• Remote control and upgrade via Solis monitoring platforms.

• Includes energy meter and CT clamp for accurate measurement and control.

• Supports power for important loads during load shedding.

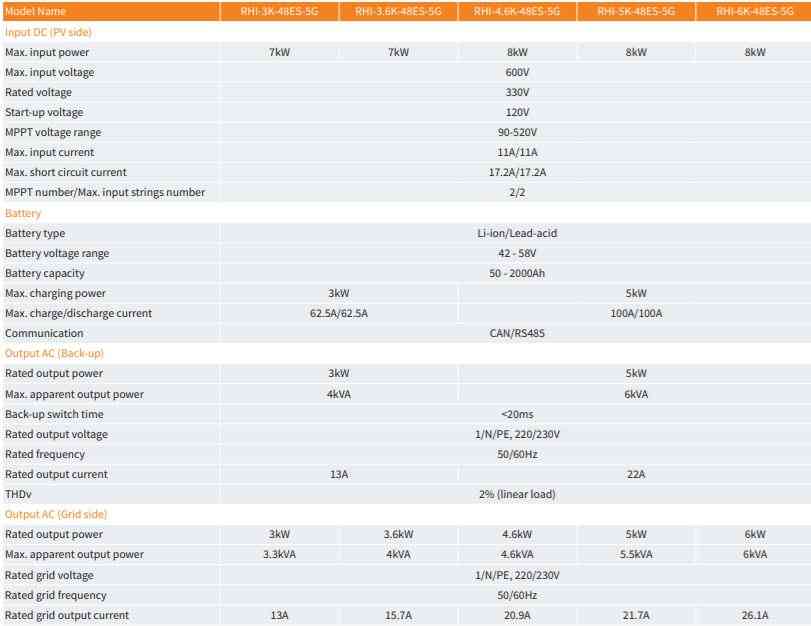

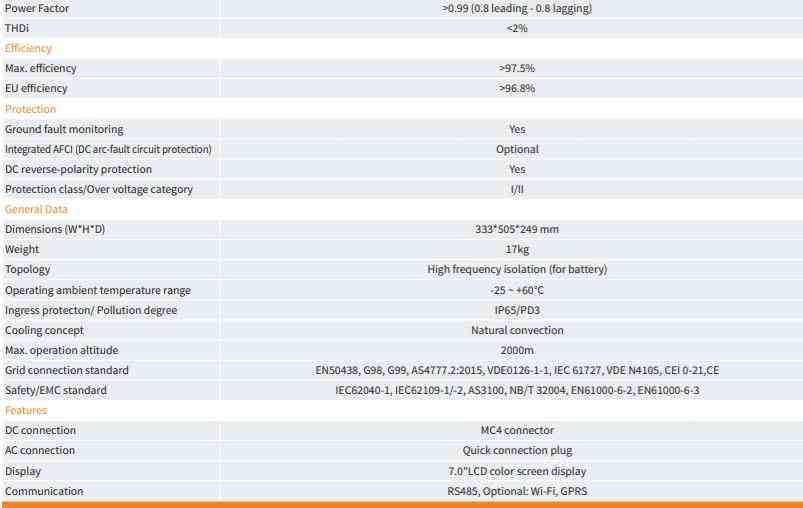

Technical Specifications

• Supplier Part No: S5-EH1P6K-L

• Weight: 22 kg

• Rated Power: 6,000 W

• Min MPPT Voltage: 120 V

• Max MPPT Voltage: 520 V

• DC Startup Voltage: 120 V

• DC Shutdown Voltage: 90 V

• Max Input Voltage: 600 V

• Max DC Power: 8,000 W

• Max AC Power (5 min): 6,001 W

• Surge AC Power (1 sec): 6,600 W

• Max DC Current: 30 A

• Max DC Inputs: 2

• DC Fuses: None

• Connector Type: MC4

• Included Connectors: 4

• Euro Efficiency: 96.8%

• Transformer: None

• MPPT Quantity: 2

• Integrated DC Switch: Yes

• Warranty: 5 years

Why Choose Solis S5-EH1P6K-L Hybrid Inverter?

• Provides backup power during load shedding and optimises energy usage during peak demand.

• Fanless, IP65 design ensures quiet, durable, and maintenance-free operation.

• Supports remote monitoring and smart energy management for efficient home or business solar systems.

• Meter and CT included for easy installation and precise energy tracking.

⚡ Maximise your solar energy efficiency with the Solis S5-EH1P6K-L Hybrid Inverter – a flexible, reliable, and intelligent solution for residential and commercial energy management.
