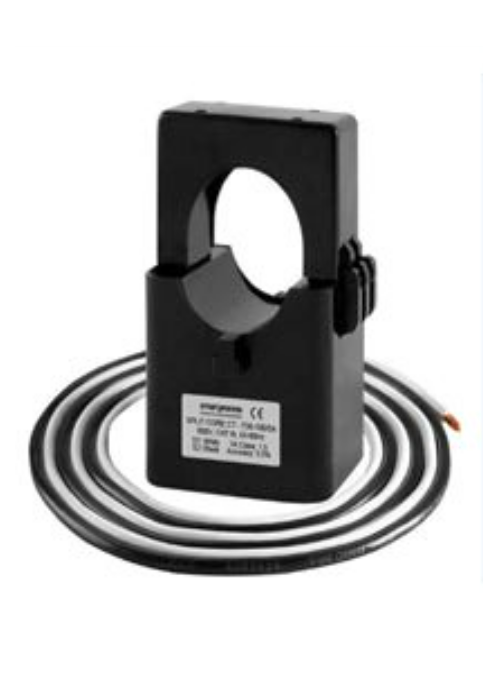

SCT36-500/5A Split Core Current Transformer
500A Current Transformer clamp
Frequency: 50-60Hz
Accuracy: ±1% between 20% - 120% Insulation voltage: 600V AC Maximum primary voltage: 5000V AC Dielectric strength: 2.5KV/1mA/1min Operating temperature: -15 °C to +60 °C Operating humidity: <85% Case material: PC / UL94-V0 Bobbin: PBT Core: Permalloy Internal structure: Epoxy
Split core Current Transformer ( incl. fly lead )
Part No as per datasheet: SCT36-500/5A
