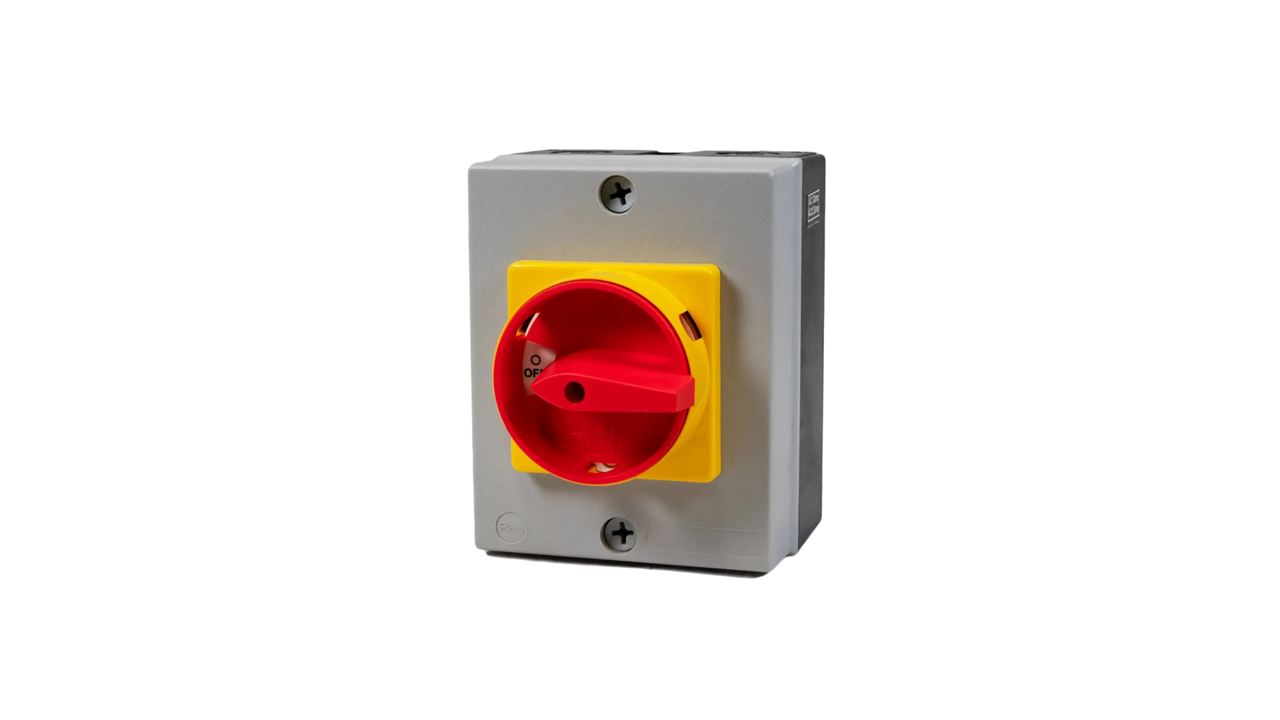

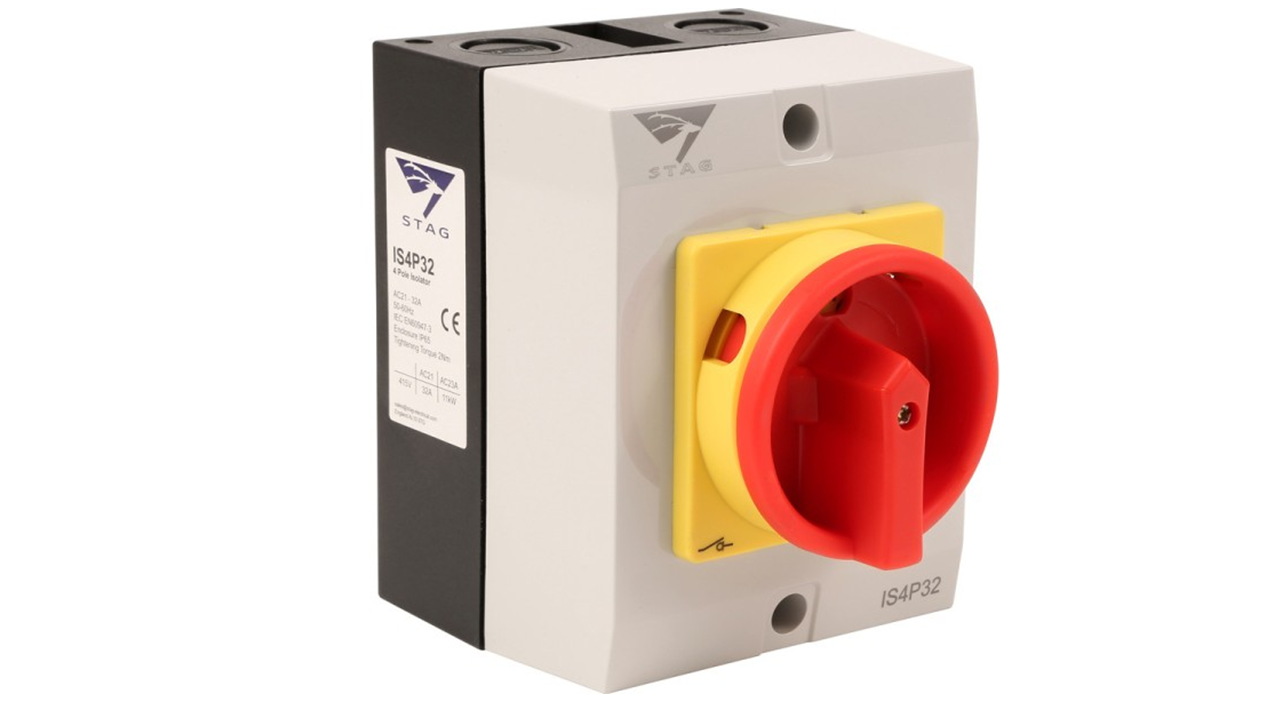

IMO Stag AC Isolator 4 Pole 32 Amp

IMO Stag AC Isolator 4 Pole 32 Amp

#1: IMO-IS4P32 Switches - AC Isolators

#17: *32A 4-pole* AC Isolator - IMO Stag

Stag AC Isolator Switch - 4 Pole Enclosed 32A AC Switch Isolator

• IP65 Protection Rating (enclosure)
• EN 60947-3 Compliant
• Multiple Gland Knockouts
• Lockable Rotary Handle
• Flame Retardant
• External Mounting Points
• Additional Earth Connection
• Interlocked Enclosure Lid

Measurements

• H - 125
• W - 100
• D - 85
• D (including handle) - 120

Weight: 0.52 kg
Rated Power: 22,144 W
Poles: 4
Max Cable: 10 mm2
Max Voltage: 690 V
Rated Current: 32 A
Rated Voltage: 415 V
Rated Current: 32 A
