Libbi 5kW Hybrid + 10kWh Battery All in one Battery Storage System
SPECIAL OFFER LIBBI PACKAGES - BUY 2 BATTERIES GET 1 FREE AVAILABLE HERE
#3: 4716
2: MYEN-LIBBI-505SH
Libbi 5kW Datasheet
Libbi 5kW Installation Manual
Libbi 5kW Operation Instructions
Libbi 5kW G99 Certificate
The libbi, myenergi's latest hybrid inverter and battery package, combines a 5kW hybrid inverter with seamless integration capabilities across all myenergi devices. You can enhance its energy storage potential by incorporating up to 4 batteries in parallel, providing a maximum capacity of 20kWh. Additionally, the libbi offers the valuable feature of emergency power supply (EPS) backup, ensuring a reliable power source during blackouts.
Control
- Your surplus self generated electricity, decreasing your dependency on the electricity grid
Optimise
- The best time to capture grid electricity at its cheapest, based around your time of use tariff
Integrate
- With your myenergi devices, prioritising stored electricity to power your home, eddi or zappi
This Kit Includes:
- 1 x 5kW Libbi Inverter
- 1 x 5kWh Libbi Home Battery

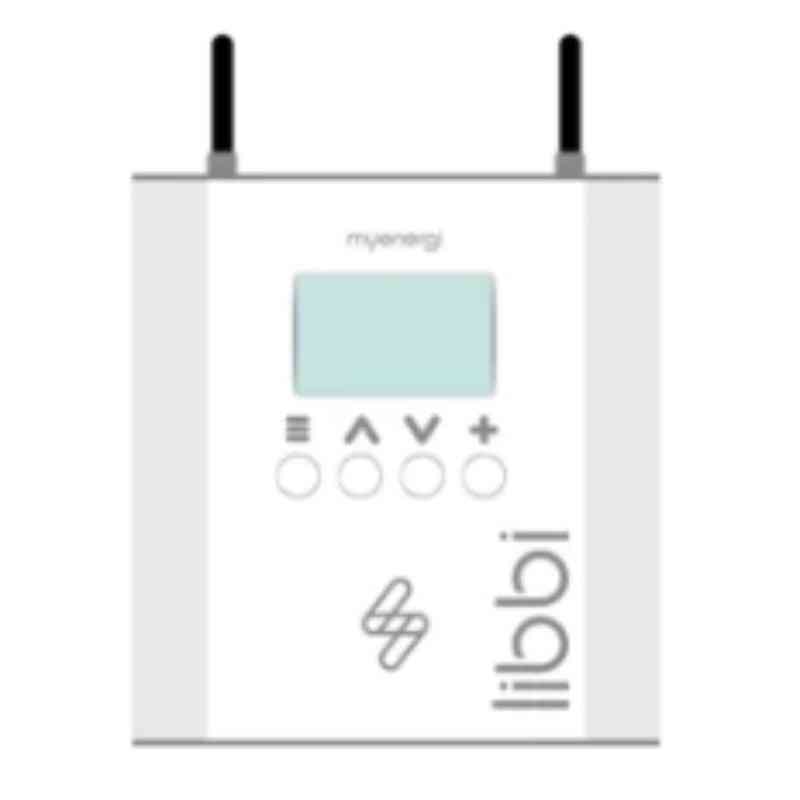

- 1 x Myenergi Controller

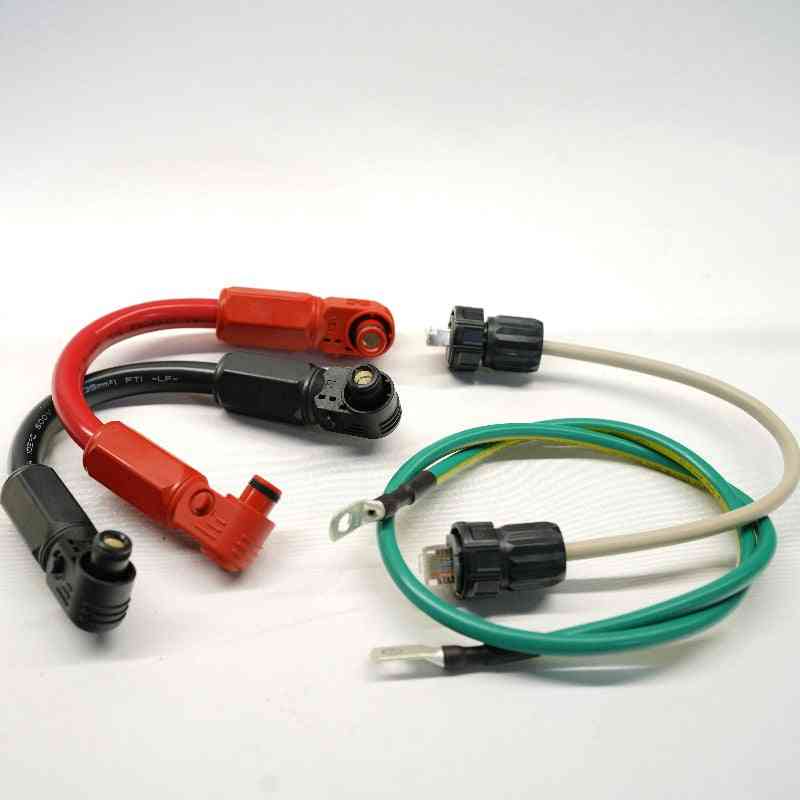

- 1 x Libbi Cable Expansion Kit for 5kWh
-
myenergi Ecosystem - Integrate with your myenergi devices, prioritising stored electricity to power your home, eddi or zappi.
-
Ultimate Control - Choose whether you want to charge your libbi from solar, grid or a mixture of both. When charging from grid libbi optimises around your time of use or dynamic tariff.
-

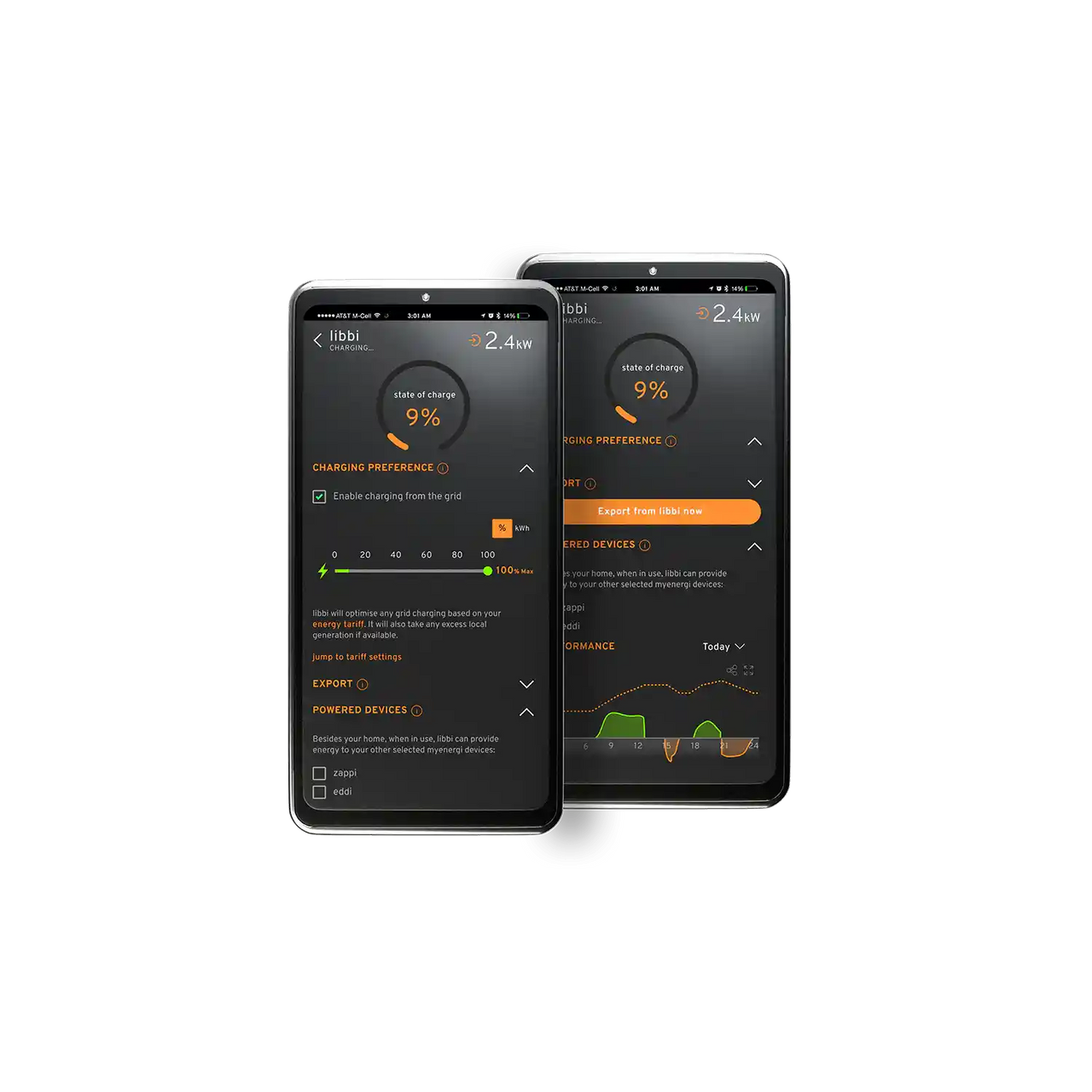

Remote Access - myenergi app allows you to access and control your libbi from anywhere in the world. Live displays allow you to monitor your imported and exported electricity, all in one place.
-
Modular Storage By Design - Each battery module stores 5kWh of electricity. Combining four together provides up to 20kWh of storage.
-
Flexible Install - libbi works as both an AC and DC coupled battery system with solar PV. Connect PV without the need for a separate inverter or retrofit to any existing PV system.
-
Optional Blackout Back Up - Instant energy availability to a dedicated socket or lighting circuit in the event of a power cut*
AC Output
Max power - 5000W
Max current - 22A
Number of phases - 1
System
Max efficiency - 97.6%
IP rating - IP65
Built in protection - AC and DC surge protection Type II, arc fault
Export limitations - Possible using CT or meter
Weight - 32kg
Dimensions - 540 x 590 x 240mm
Communication- 1 x LAN port, RJ45 connector
Warranty - 5 years
DC attributes (Inverter)
Number of MPPT -2
V range of MPPT- 120 - 550V
Max power - 65000W
Max current - 18A
Max voltage - 580V
Start up voltage - 130V
DC Attributes (Battery Input)
Max charge current - 100A
Max discharge current - 100A
Max charge power - 4600W
Max discharge power - 5000W
Nominal batt voltage - 51.2V
Battery Type - LiFePO4
