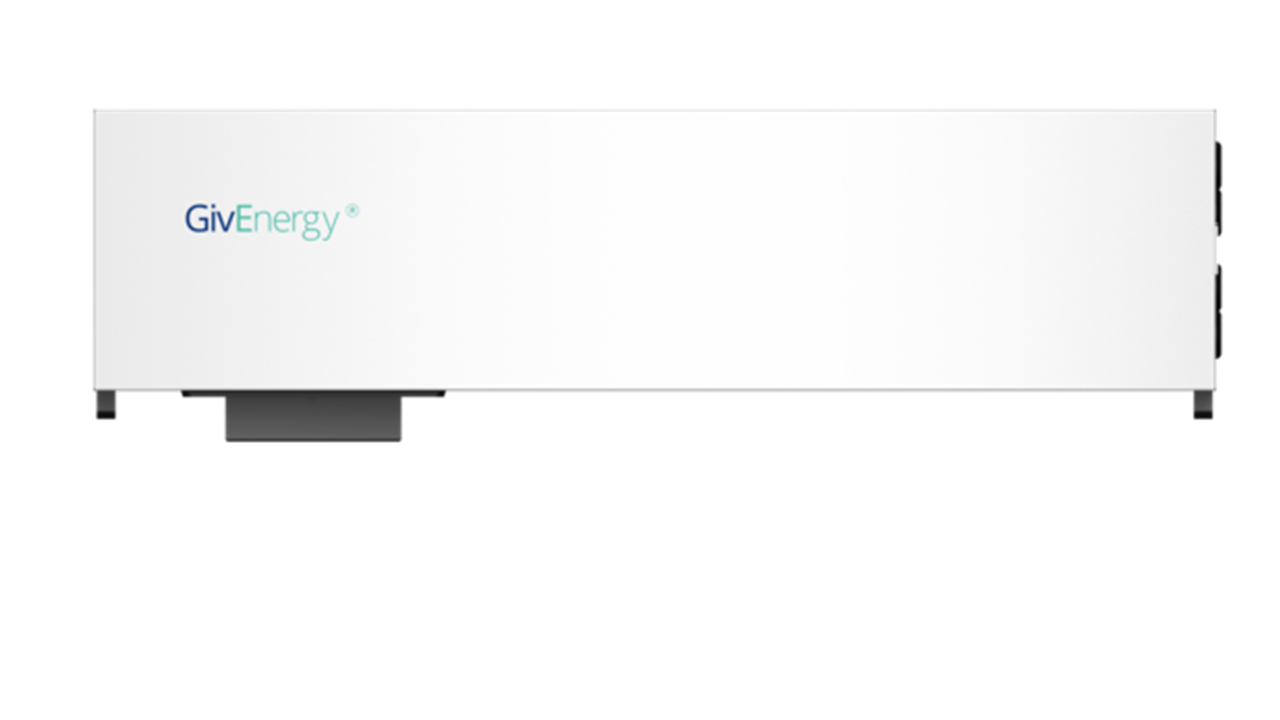

GivEnergy All In One 2 | MPPT Box

GivEnergy All In One 2 MPPT Box

2: GIV-AIO2-MPPT-BOX

3: 7578

GivEnergy Gateway for All In One 2

GivEnergy All In One 2 12kW / 13.5kWh System

GivEnergy AIO 2 Expansion battery

GivEnergy AIO 2 Manual

The GivEnergy All-in-One 2 (AIO2) delivers exceptional flexibility, power and resilience for modern UK homes and commercial properties. Combining a 12kW inverter with 13.5kWh usable battery capacity, it offers a powerful and intelligent solution for customers looking to maximise savings, support grid services and ensure full energy independence.

Optional hybrid capability is available with the GivEnergy MPPT Box, featuring six independent PV trackers for advanced control, solar optimisation and improved generation performance across complex roof layouts.

Key Features

Flexible Hybrid Energy System

• 12kW inverter paired with 13.5kWh lithium battery storage.

• Optional MPPT Box enables hybrid functionality with six MPPTs, ideal for multi-orientation solar arrays.

• Suitable for residential, commercial and light industrial energy systems.

Grid Services Ready

Energy suppliers and aggregators are increasingly paying customers who can reduce their electrical consumption at peak times.
The AIO2 is fully compatible with grid services and demand-side response programmes, enabling users to unlock additional income streams.

Whole-House Backup Capability

• Acts as a true UPS, keeping your entire property powered during outages.

• Seamless off-grid operation until grid supply is restored.

• Requires GIV-AIO2-GATEWAY2 for backup functionality.

Optimised for Flexible Rate Tariffs

• Charge the battery during cheaper off-peak periods.

• Power your home or business during peak-rate hours for maximum bill reduction.

• Perfect for users on EV tariffs or dynamic energy tariffs.

Technical Specifications

General Information

• Supplier Part Number: MPPT Box

• Weight: 18kg

• Battery Type: Lithium-Ion

• Nominal Energy: 13.5kWh

• Depth of Discharge: 100%

• Nominal Voltage: 307V

Performance Ratings

• Continuous Discharge Power: 1 battery - 6,000W, 2 batteries 12,000W

• Maximum Discharge Power (5 minutes): 1 battery - 6,000W, 2 batteries 12,000W

• Surge Discharge Power (15 seconds): 1 battery - 6,000W, 2 batteries 12,000W

• Maximum Charge Power (5 minutes): 1 battery - 6,000W, 2 batteries 12,000W

System Weights

• AIO2 (with batteries): 181.3kg

• AIO2 (without batteries): 56.5kg

• Individual battery module: 31.2kg (×4)

• MPPT Box: 17.8kg

Installation Notes

• As of 1 May 2024, the GIV-AIO-GATEWAY is only required for home backup.

• When installing without a Gateway, use GIV-GM120CT-P for accurate monitoring and export limitation.

• The GM120 meter is essential for installations not using a Gateway.
