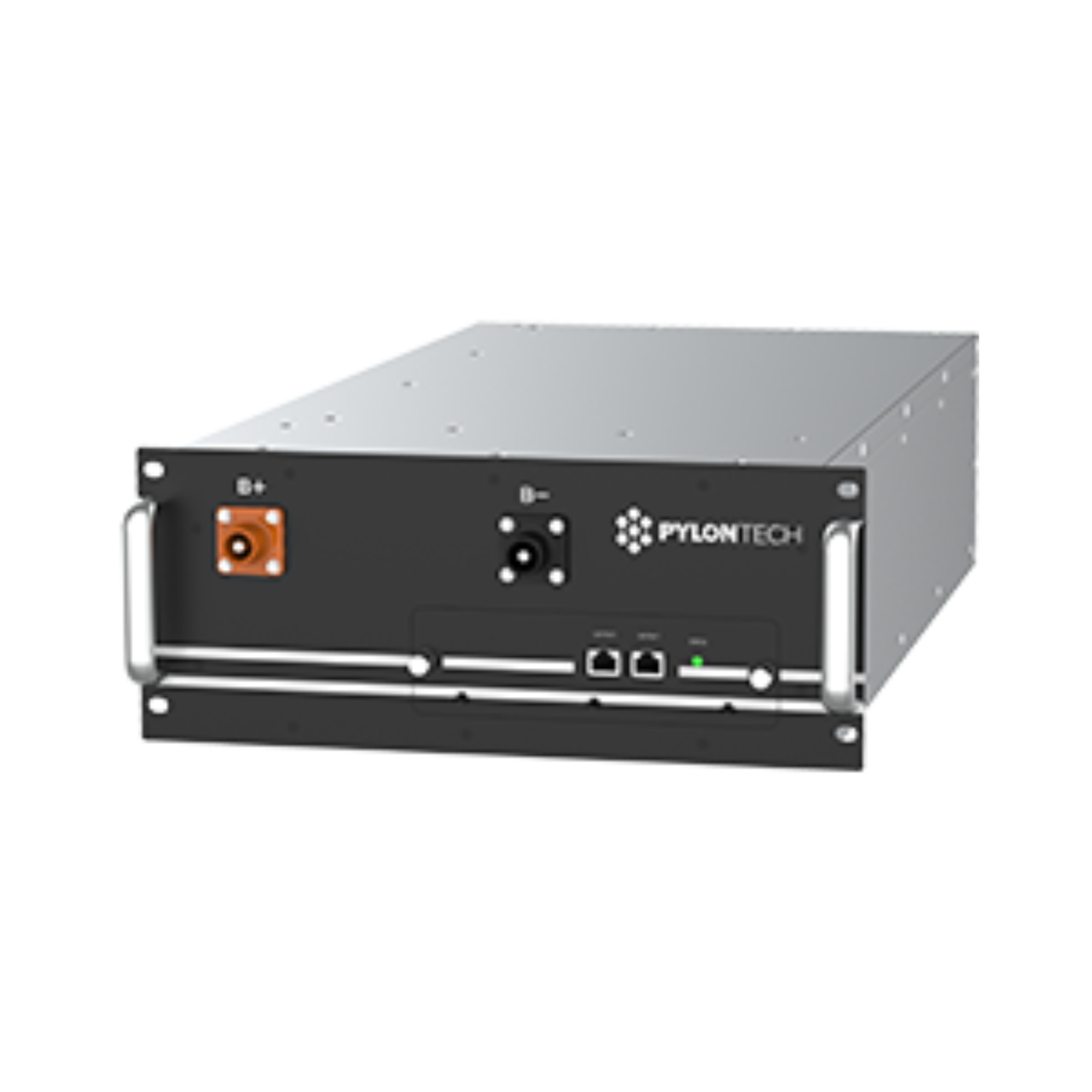

PylonTech PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection (H48074)

Pylontech PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection(H48074)

#2: PYL-PC-H2-BATT Storage Systems - Li-ion Battery Pack

Pylon PowerCube H2 Datasheet

Pylon PowerCube H2 Operation Manual

Pylon PowerCube H2 Warranty

Collections not possible

To view complete Pylon kits please visit our Pylontech main page

Pylontech's Powercube has a modular design, allowing for maximum flexibility for both rack mounted and container based constructions.

PylonTech Modular Lithium-Ion Battery System

Power your high-voltage solar or energy storage installation with the PylonTech Modular Lithium-Ion Battery System, designed for flexibility, safety, and long-lasting performance. Ideal for residential, commercial, and industrial applications requiring scalable energy storage.

Key Features

• Modular & Scalable: Configure 5–12 modules per rack, with up to 6 racks in parallel

• High Voltage Applications: Supports flexible BMS voltage range from 240VDC to 576VDC

• Safe & Reliable Technology: Uses LiFePO4 chemistry for long cycle life and enhanced safety

• Comprehensive BMS Protection: Monitors charge, current, and temperature for system safety

• Flexible Installation Options: Rack-mounted or container-based systems

Important Information

• Each battery module includes 1 x Communication Cable and 1 x Orange Power Cable

• BMS Requirement: One BMS unit and external cable kit per battery stack

• Minimum of 5 battery modules required for proper BMS operation

• For multiple BMS units, an MBMS is required for communication and control

• Warranty extension available via registration: PylonTech Support

• Batteries must be installed by a certified electrician or authorised installer for warranty validity

Technical Specifications

• Weight: 31 kg per module

• Battery Type: Lithium-Ion (LiFePO4)

• Nominal Energy: 3552 Wh

• Depth of Discharge: 90%

• Voltage: 48 V

• Continuous Discharge Rate: 1776 W

• Maximum Discharge Rate (5 Minutes): 3552 W

• Surge Discharge Rate (15 Seconds): 3552 W

• Maximum Charge Rate (5 Minutes): 3552 W

Benefits

• Customisable Energy Storage: Build systems from 5 to 72 modules for maximum flexibility

• Safe & Efficient: Advanced LiFePO4 technology and BMS protection reduce risk

• Long-Lasting Performance: Designed for high cycle life and reliable operation over years
