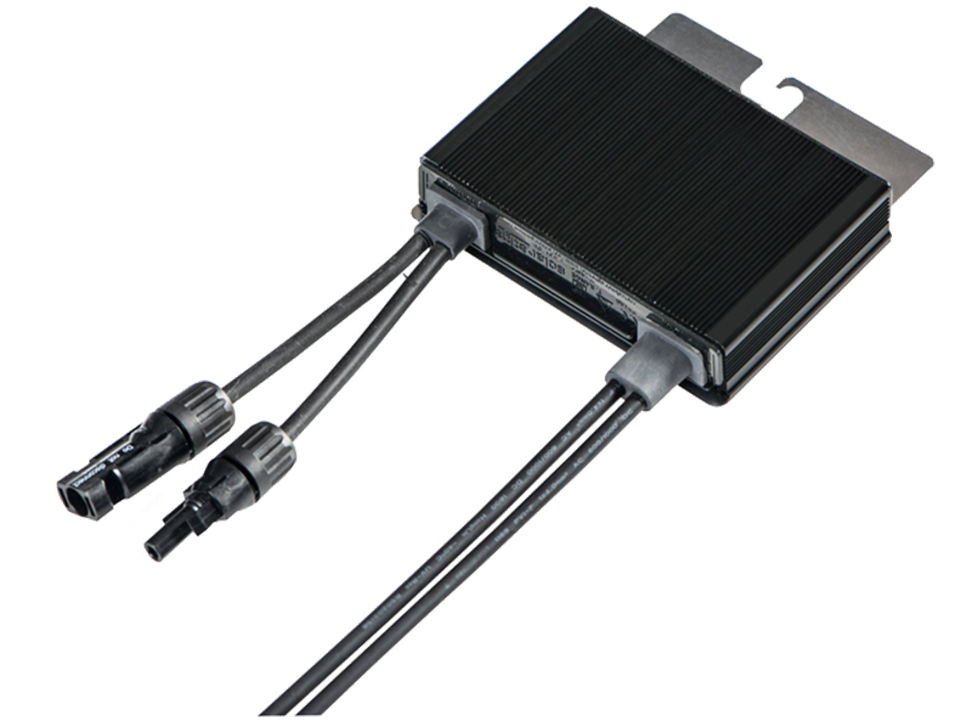

P850 Optimiser 850W MC4 2x High Power/Bi-facial 2.2m with 1.3m input length
#1: P850-2.2-LI-1.3-MC4 Inverters - Inverters - Optimisers
#3: 3481#4182
#4: S850-1GM4MRY
SE P850 Optimiser Data Sheet
SE P850 Optimiser Installation Manual
SE P850 Optimiser Warranty
SE P850 Optimiser Certification
Minimum order: 4 Units
P850-5RM4MBY
The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each PV module (or pair of modules) or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring platform for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDC™ feature which is designed to automatically shut down modules' DC voltage whenever the inverter or grid power is shut down.
This optimiser is ideal for commercial installations allowing the connection of two High Power or Bi-facial panels in Series to one power optimiser. It supports up to 850W and has a bent bracket (similar to the new P505 optimiser) to accommodate clearance of larger enclosures.
Weight: 1.06 kgMin PPT Voltage: 13 VMax PPT Voltage: 125 VDC Startup Voltage: 13 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 850 WMax AC Power (5 Minutes): 0 WSurge AC Power (1 Second): 0 WMax DC Current: 14.1 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 2Euro Efficiency: 98.6 %Transformer: N/AMPPT Quantity : 1Has Integrated DC Switch: NoWarranty: 25 years
