S1200 Power Optimiser £78 + VAT

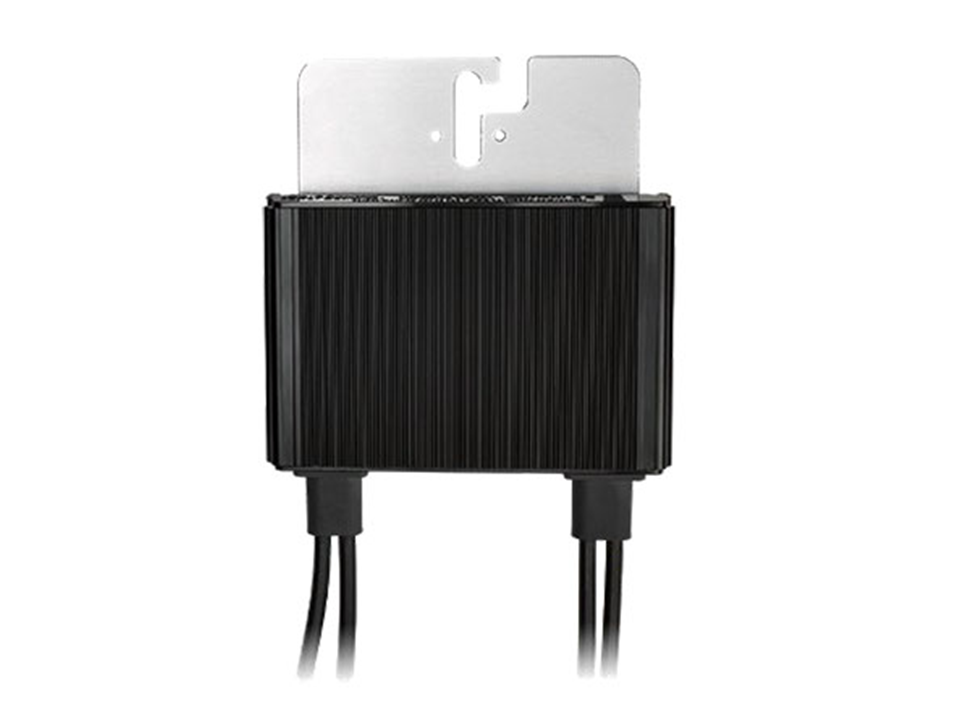

S1200 Power Optimiser

#1: S1200-MC4 Inverters - Optimisers

 SE S1200 Optimiser  Datasheet

Minimum order: 4 Units

Part No: S440-MC4 Inverters - Optimisers

• Specifically designed to work with SolarEdge Comercial inverters
• Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
• Faster installations with simplified cable management and easy assembly using a single bolt
• Detects abnormal PV connector behavior, preventing potential safety issues
• Module-level voltage shutdown for installer and firefighter safety
• Flexible system design for maximum space utilization
• Compatible with bifacial PV modules
• Superior efficiency (99.5%)

Note: The S1200 has a higher operating current. When pairing the S1200 with an inverter that has built-in 25A fuses, you must replace the fuses with 30A fuses before commissioning. A fuse replacement kit is available (Part number FLD-DCD-SEL1-FUSE). The applicable inverter Part Numbers are as follows: SExxK-xxxxIxxCx, SExxK-xxxxIxxDx, SExxK-TWxxIxxLx, SExxK-xxxxIxxZx.

Weight: 1.09 kg
Min PPT Voltage: 12 V
Max PPT Voltage: 125 V
DC Startup Voltage: 12 V
DC Shutdown Voltage: 125 V
Max Input Voltage: 125 V
Max DC Power: 1,200 W
Max DC Current: 15 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 12
MPPT Quantity : 1
Has Integrated DC Switch: No
Euro Efficiency: 98.6 %
Transformer: N/A
MPPT Quantity : 1
Has Integrated DC Switch: No
