Solis 5kW Hybrid Energy Storage Inverter 5G
#2: S5-EH1P5K-L (Smart) - 1P Meter
#4: S5-EH1P5K-L
Solis 5kW Inverter Data Sheet
Solis 5kW Inverter Manual
Solis 5kW Inverter Warranty
Solis 5kW G100 Certificate
For additional 5 year warranty click here.

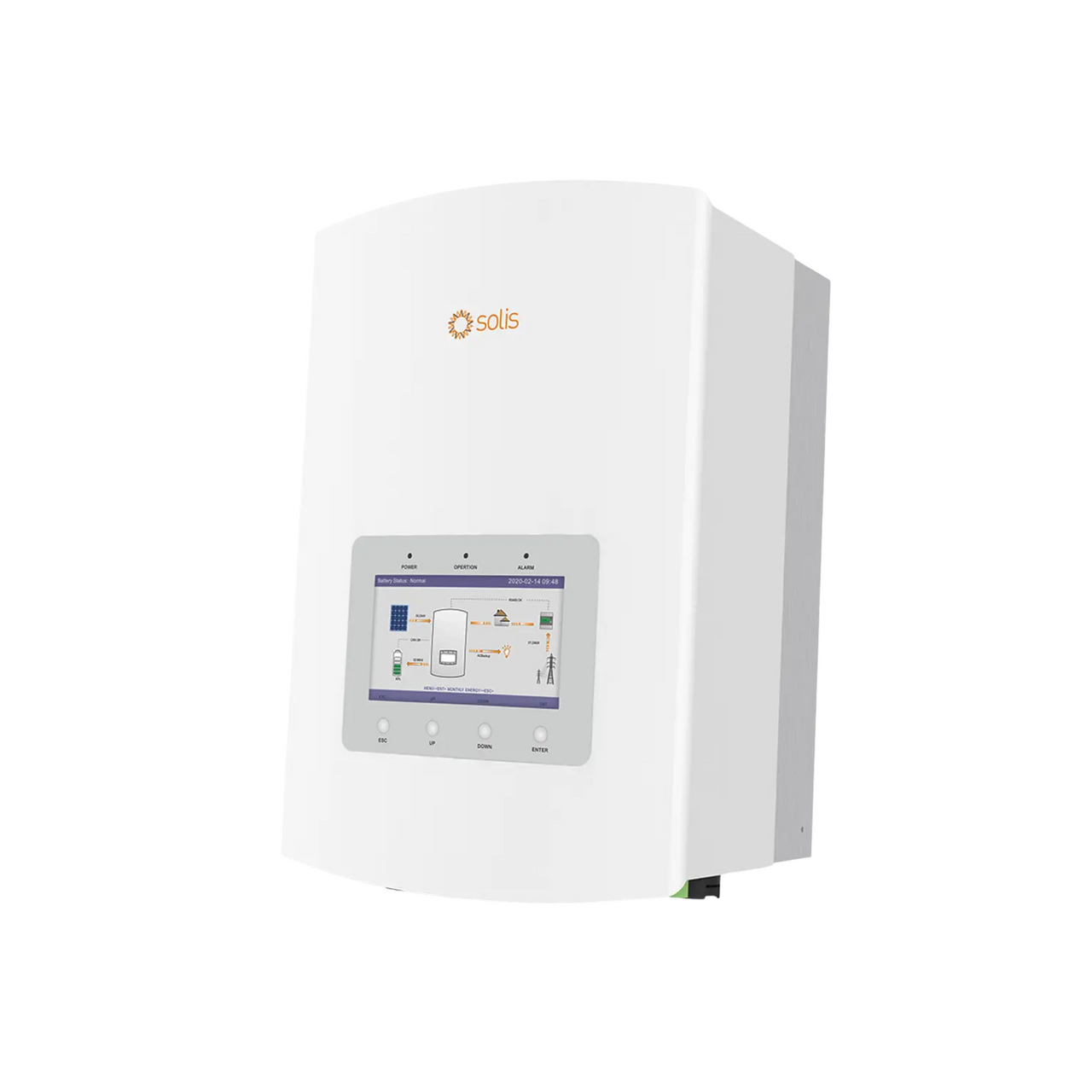

Solis S5-EH1P5K-L 5G Hybrid Inverter – Single-Phase Solar & Battery Solution
Please note: This product is supplied with a 3-phase energy meter and CT clamp, which can also be used for single-phase installations.
The Solis S5-EH1P5K-L is part of Solis’ latest 5G Hybrid inverter range, designed to provide power for critical loads during load shedding and optimise energy use during peak demand periods. This makes it the perfect solution for residential solar PV and battery storage systems.

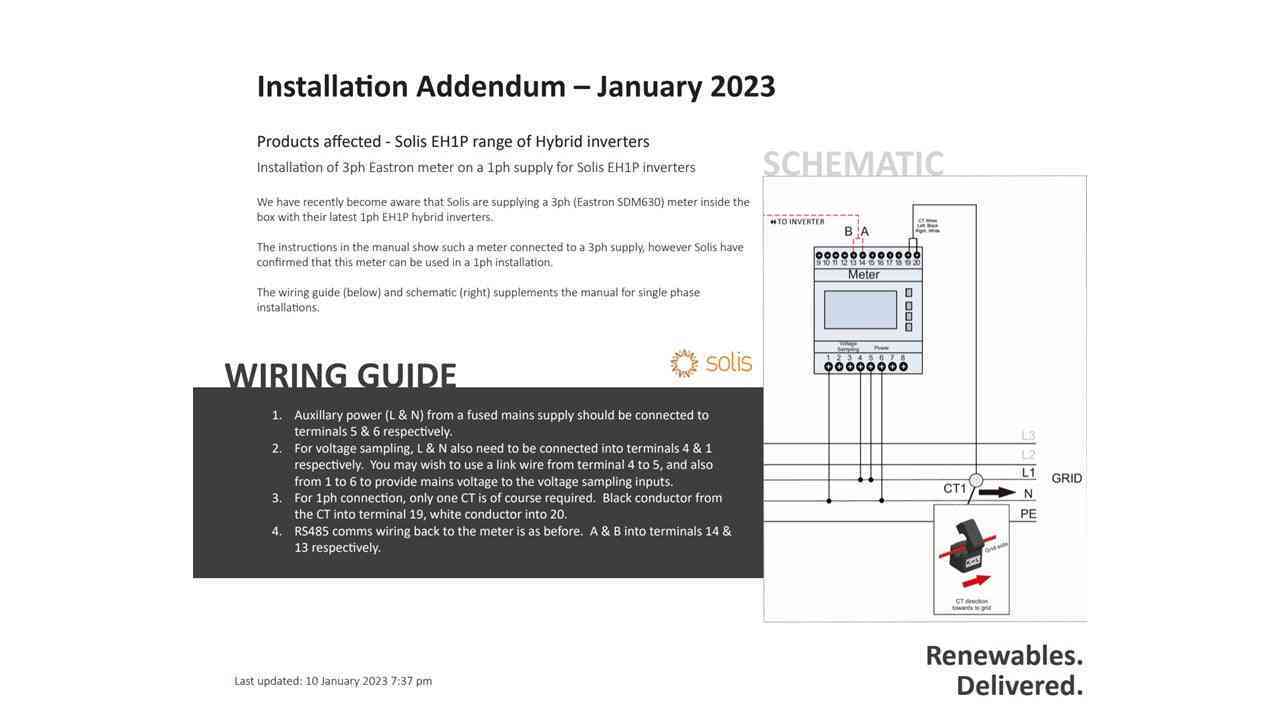

Solis have confirmed that the included 3-phase Eastron SDM630 meter can be used in a single-phase installation, despite the manual showing connection to a 3-phase supply.
Key Features of the Solis S5-EH1P5K-L
-
Fanless design with IP65 protection for reliable, quiet operation
-
High charge and discharge efficiency to maximise energy use
-
Multiple work modes for maximum self-consumption
-
Intelligent Battery Management System (BMS) function
-
24-hour real-time intelligent energy management
-
Remote control and firmware upgrades for convenience and monitoring
Technical Specifications
| Specification |
Details |
| Weight |
21.5 kg |
| Rated Power |
5,000 W |
| MPPT Voltage Range |
120 V – 520 V |
| DC Startup Voltage |
120 V |
| DC Shutdown Voltage |
90 V |
| Max Input Voltage |
600 V |
| Max DC Power |
8,000 W |
| Max AC Power (5 min) |
5,001 W |
| Surge AC Power (1 sec) |
5,501 W |
| Max DC Current |
30 A |
| Max DC Inputs |
2 |
| DC Fuses |
0 |
| Connector Type |
MC4 |
| Included Connectors |
2 |
| Euro Efficiency |
96.8% |
| Transformer |
None |
| MPPT Quantity |
2 |
| Integrated DC Switch |
Yes |
| Warranty |
5 years |
Why Choose the Solis S5-EH1P5K-L Hybrid Inverter?
The Solis S5-EH1P5K-L is ideal for UK homes looking for a smart, efficient, and reliable solar PV and battery storage solution. With its fanless IP65 design, advanced BMS, and multiple work modes, it ensures maximum energy self-consumption, intelligent energy management, and uninterrupted power for critical loads.
Order now from ITS Technologies – your trusted UK supplier of hybrid inverters, solar PV systems, and battery storage solutions.
