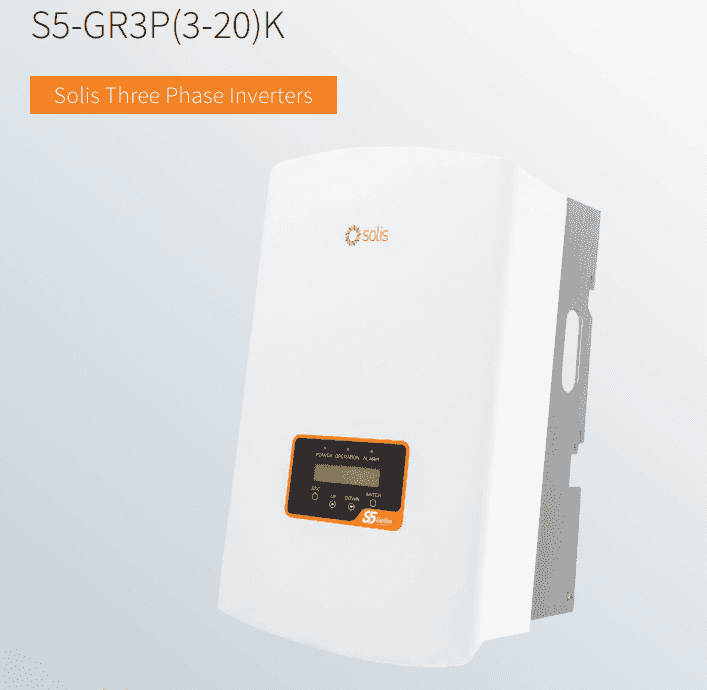

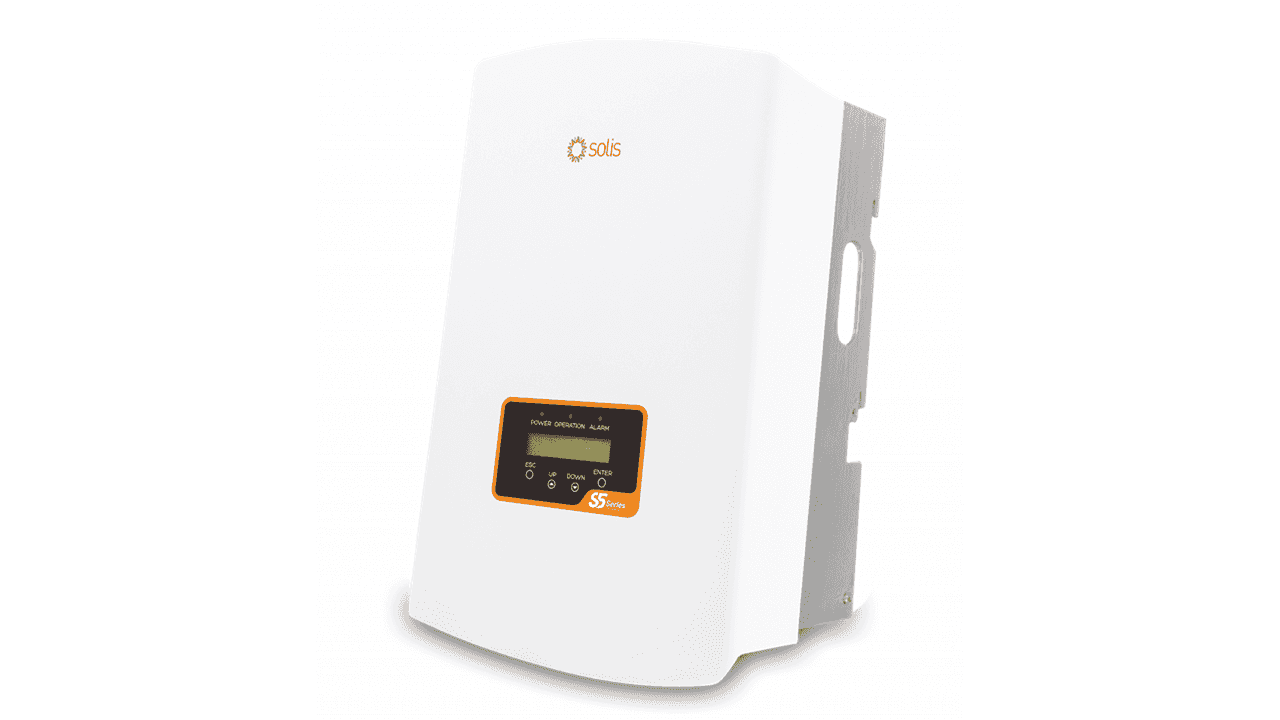

Solis Series 5 GR3P – 6kW Three-Phase Grid-Tied Inverter

The Solis Series 5 GR3P is a high-performance three-phase grid-tied inverter, designed for residential and commercial rooftop solar installations. With a maximum efficiency of 98.3%, it ensures optimal energy harvest from your PV system while maintaining safety and reliability.

This inverter is IP66-rated, robust, and equipped with advanced protections to handle a wide range of solar installations.

Key Features

• High Efficiency: Up to 98.3% maximum efficiency

• Over-Voltage Protection: Type-II surge protection for both DC and AC

• Wide Voltage Range: Ultra-low start-up voltage of 180V, max PV input voltage 1100V

• PV String Input: 16A per string x 2

• AC Output: Maximum AC power 6.6 kW

• DC Arc-Fault Protection: Integrated AFCI for enhanced safety

• IP66 Rated: Durable for outdoor installations

• Reverse Polarity Protection: Ensures system safety

• Warranty: 5 years standard

• Remote Monitoring: Register on SolisCloud for remote upgrade and system control

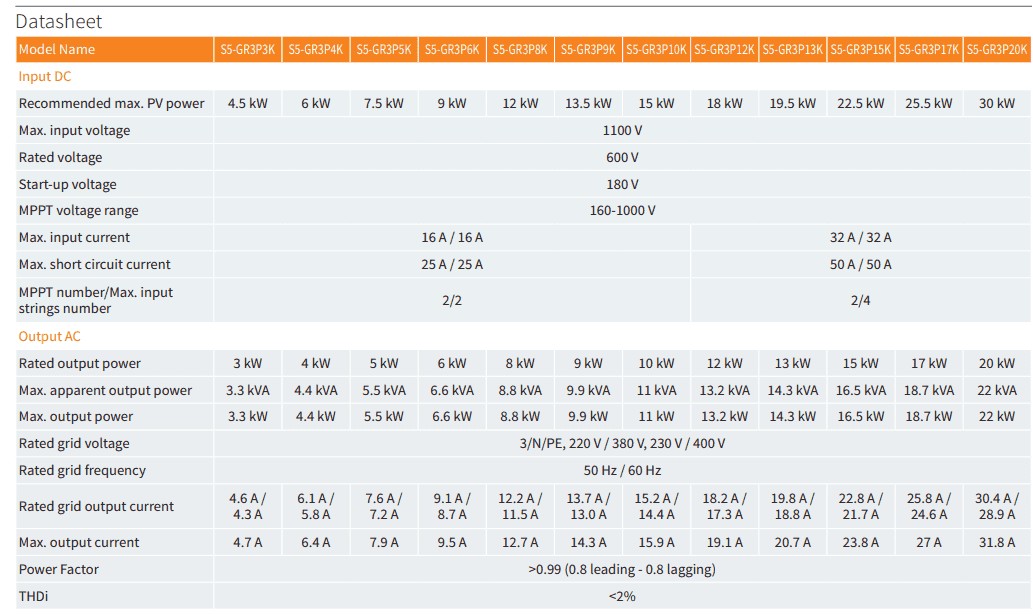

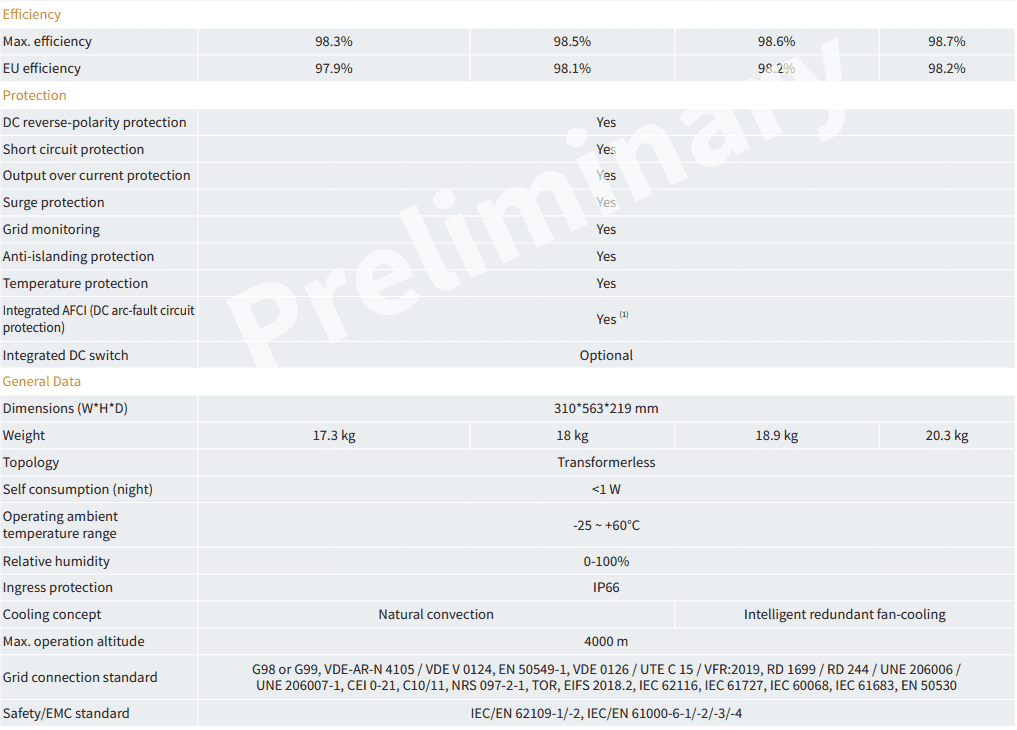

Specifications

• Weight: 19.48 kg

• Rated Power: 6,000 W

• Phases: 3

• Min PPT Voltage: 180 V

• Max PPT Voltage: 1,000 V

• DC Startup Voltage: 180 V

• DC Shutdown Voltage: 160 V

• Max Input Voltage: 1,100 V

• Max DC Power: 9,000 W

• Max AC Power (5 Minutes): 6,600 W

• Surge AC Power (1 Second): 6,600 W

• Max DC Current: 32 A

• Max DC Inputs: 2

• Connector: MC4

• Included Connectors: 4

• Euro Efficiency: 97.7%

• Transformer: None

• MPPT Quantity: 2

• Integrated DC Switch: Yes

Certifications & Compliance

• NRS-097-2-1 Certified – meets stringent safety and performance standards

✅ The Solis Series 5 GR3P inverter combines high efficiency, advanced safety, and robust construction, making it ideal for modern three-phase solar installations.
