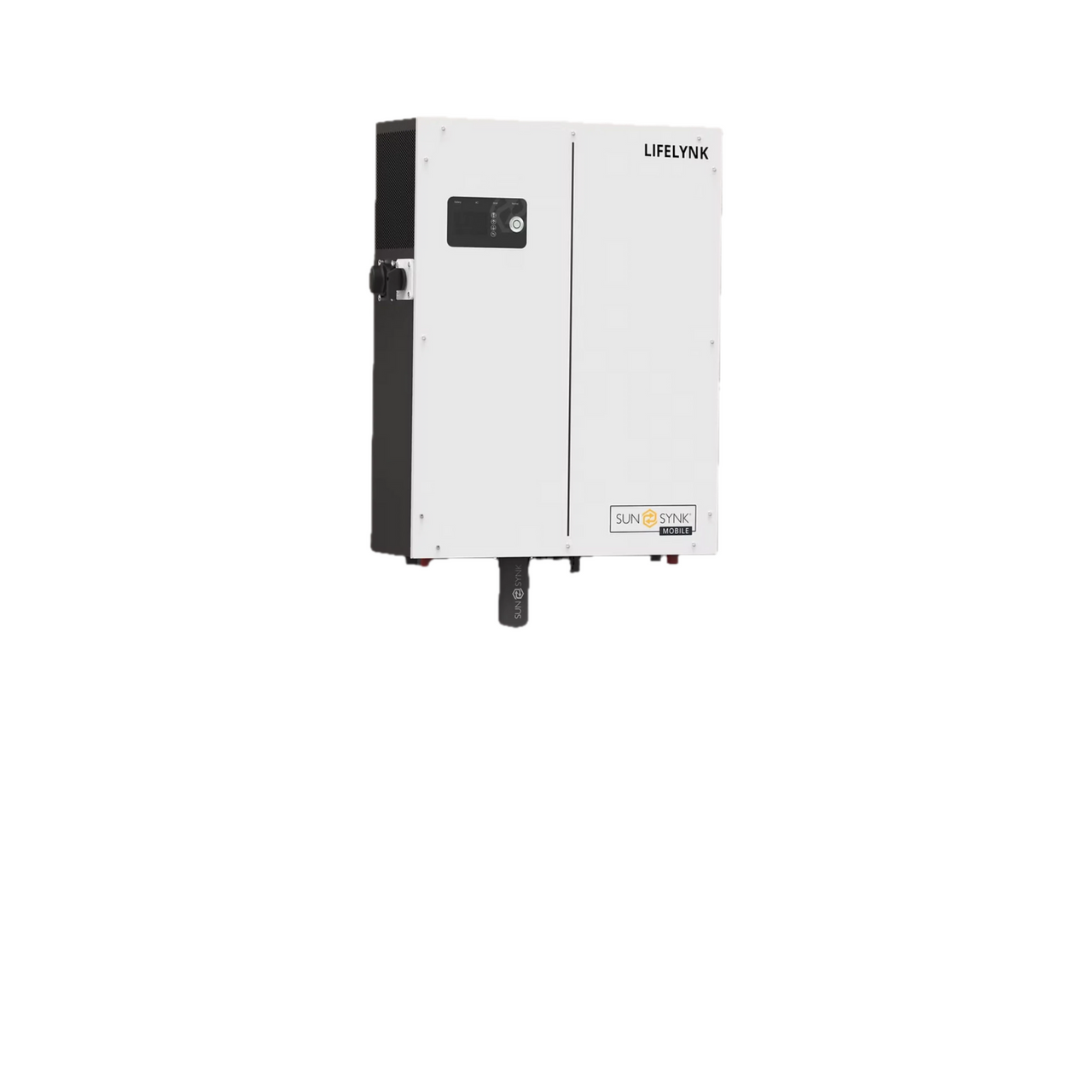

Sunsynk Lifelynk X 3.6kW All In One Hybrid Inverter with 3.84kWh battery IP21

Sunsynk Lifelynk X 3.6kW all in one Hybrid Inverter with 3.84kWh battery

5: SUN-LIFE3.6X-HYB Storage Systems - Hybrid Inverter

#2: LIFE-3.6-HYB02

Sunsynk Lifelynk Data Sheet

Sunsynk Lifelynk X 3.6kW LIFE3.6X-HYB Hybrid Inverter – Compact, Powerful, and Smart

The Sunsynk Lifelynk X 3.6kW Hybrid Inverter is an all-in-one, plug-and-play energy solution, designed to simplify installation while offering full control and visibility over your solar storage system. Perfect for retrofitting into existing solar PV systems or powering new installations, this inverter integrates a 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery, and 4.5kW MPPT into a compact and powerful unit.

Key Features

• Small and Mighty: Ideal for smaller properties, social housing, and local government projects.

• Built-In Power: 3.6kW hybrid inverter, 3.84kWh battery, and 4.5kW MPPT in a single compact unit.

• EPS Function: Supports 3.6kW output for essential loads during a power cut.

• Easy Installation: Wall-mountable bracket and pre-configured ports for Load, Grid, CT, and WiFi data logger.

• Plug & Play: Quickly get your system running without complex setup.

• Smart Energy Management: Compatible with Octopus Agile & Flux, enabling you to buy electricity at cheap rates and sell back via SEG payments.

• Expandable Battery Capacity: Increase battery storage in the future if needed.

• EV Charger Compatible: Supports installation alongside an electric vehicle charger.

Technical Specifications

• Rated Power: 3,600 W

• Battery Capacity: 3.84 kWh LiFePO4

• Max Charging Current: 60A

• Max Discharge Current: 80A

• DC Start-up Voltage: 150 V

• Dimensions: 700.6 x 534.6 x 182.2 mm

• Weight: 57.4 kg

• Warranty: 5 Years

App & Remote Control Features

• Complete Control via Sunsynk App: Monitor, configure, and control your hybrid inverter from anywhere.

• Real-Time Push Notifications: Instant alerts for power cuts, battery status, or generator operation.

• Remote Configuration: Change settings, priorities, and charging/discharging schedules from any location.

• Live Monitoring & Reporting: Access detailed energy usage statistics and generate custom reports to optimise savings.

• Integration with Octopus Agile, Flux & Go: Charge at the cheapest rates and discharge when electricity prices are high.

• Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.

Why Choose Sunsynk Lifelynk X?

• Compact, space-saving design with all-in-one functionality.

• Ideal for residential solar retrofits or new solar PV installations.

• Expandable and future-proof for growing energy needs.

• Supports emergency backup power and essential load management.

• Seamless integration with smart tariffs for maximum savings.

Upgrade your home energy system with the Sunsynk Lifelynk X 3.6kW Hybrid Inverter – powerful, compact, and fully controllable from your smartphone.
