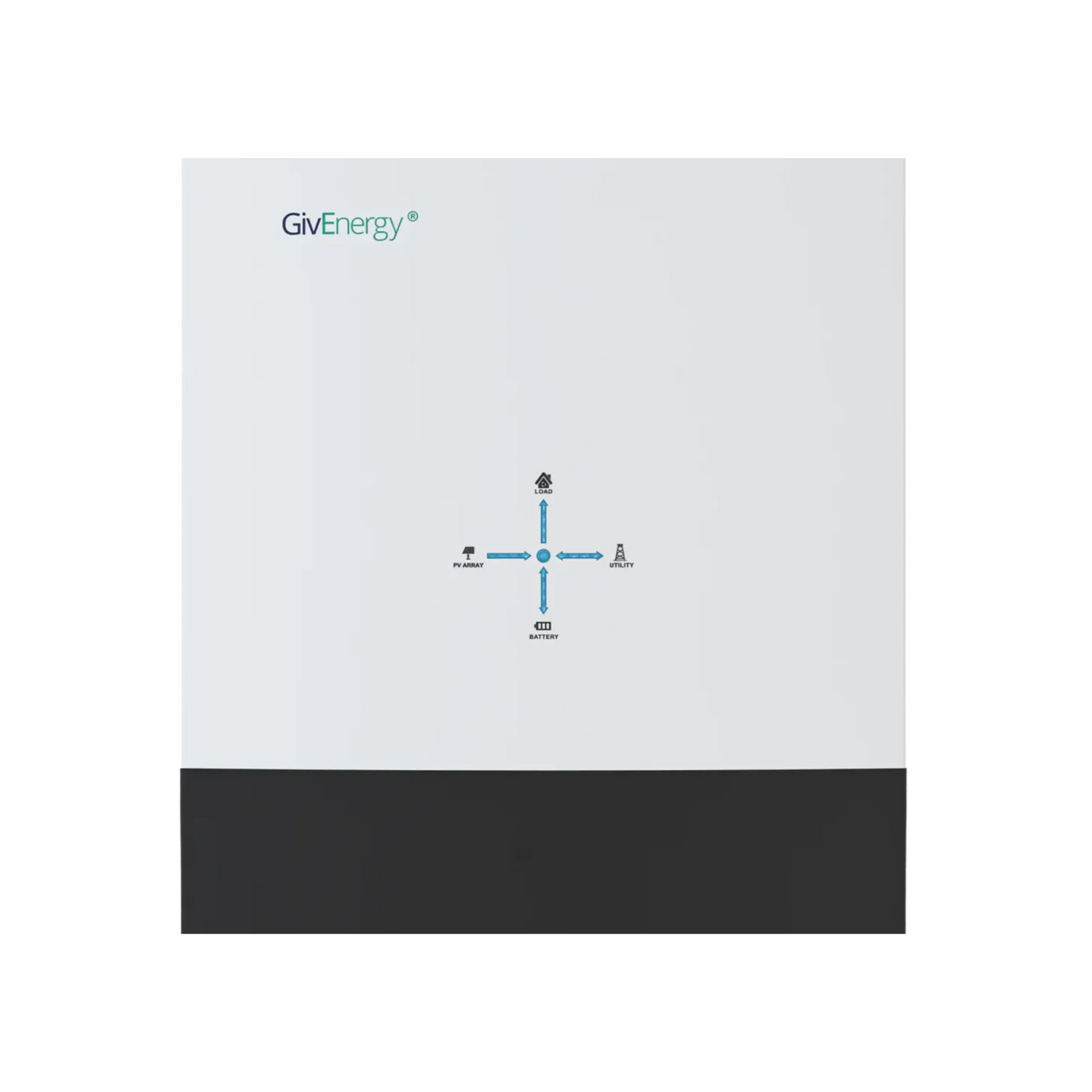

GivEnergy 5kW Gen 3 Hybrid PV Battery Inverter charges from the grid
3: GIV-HY-5.0-G3
GIV-HY 5.0 Data Sheet
GIV-HY 5 G99 Certificate
GIV-HY 5 G100 Certificate
GIV-HY 5 Warranty
GivEnergy Full Schematics
GivEnergy Welcome Pack
*Collections are not permitted due to health & safety regulations*
Kit includes items required specifically for the Gen 3 hybrid:
1 x GIV-HY-5.0-G3 GivEnergy 5kW Gen 3 Hybrid
1 x GIV-PE-KIT-G3 Earth bonding kit
To purchase 5 yr extended warranty please add warranty to your basket
Suitable for charging from Economy 7 such as Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understaning Economy 7
GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package.
The third generation of the GivEnergy Hybrid inverter is a DC-coupled storage solution which allows you to seamlessly integrate battery storage into PV systems.
The GivEnergy Gen 3 hybrid inverter offers all of the benefits of the GivEnergy Gen 2 hybrid inverter while benefiting from a cleaner design discretely enclosing the connection ports. The 5kW Gen 3 hybrid inverter comes with an increased backup power output capability of 5kW when Solar and Battery are used in tandem. Additionally, the Gen 3 has an increased max input current per string of 15A allowing for higher current panels to be utilised in your system designs and an increased MPPT range.
-
Inbuilt WiFi and LAN: Includes in-built WiFi and LAN for a hard-wired network connection.
-
Higher Charge/Discharge Rate: High efficiency, high battery discharge rates of up to 3.6kW.
-
Flexible Rate Tariff: Charge the battery off peak where its cleaner, greener and less costly, then discharge the battery during peak times for maximum saving.
-
12 Year Warranty: Supplied with a full manufacturers warranty, GivEnergy's UK team are on hand to help you should any issues arise.
AC attributes
Max power: 5kW
Max current: 21.7A
Number of phases: 1
DC attributes:
Max PV power: 7.5kW
Max Isc: 20A
Max I (per string): 15A
Max voltage: 580V
Start up voltage: 150V
No. of MPPTs: 2
MPPT Range: 120-550V
Battery:
Battery type: LiFePO4
Battery voltage range: 45-58V
Charge / discharge current: 65A / 81A
Max. Charge/Discharge: 3300W / 3600W
Backup Terminal Parameters (AC):
Nominal AC output power: 5000W (3600W battery only)
Nominal voltage: 230Vac
Max. output current: 21.7A
Automatic switch time: 10ms
System:
Max efficiency: 97.6%
Charge / discharge efficiency: 94% / 94%
IP rating: IP65
Weight: 32kg
Dimensions: 588*214*480mm
Key features:
- In-built WiFi and LAN for internet connectivity.:
- Backup for power cuts with 10ms automatic switch time.:
- Now with 12 year warranty with extensions available.:
