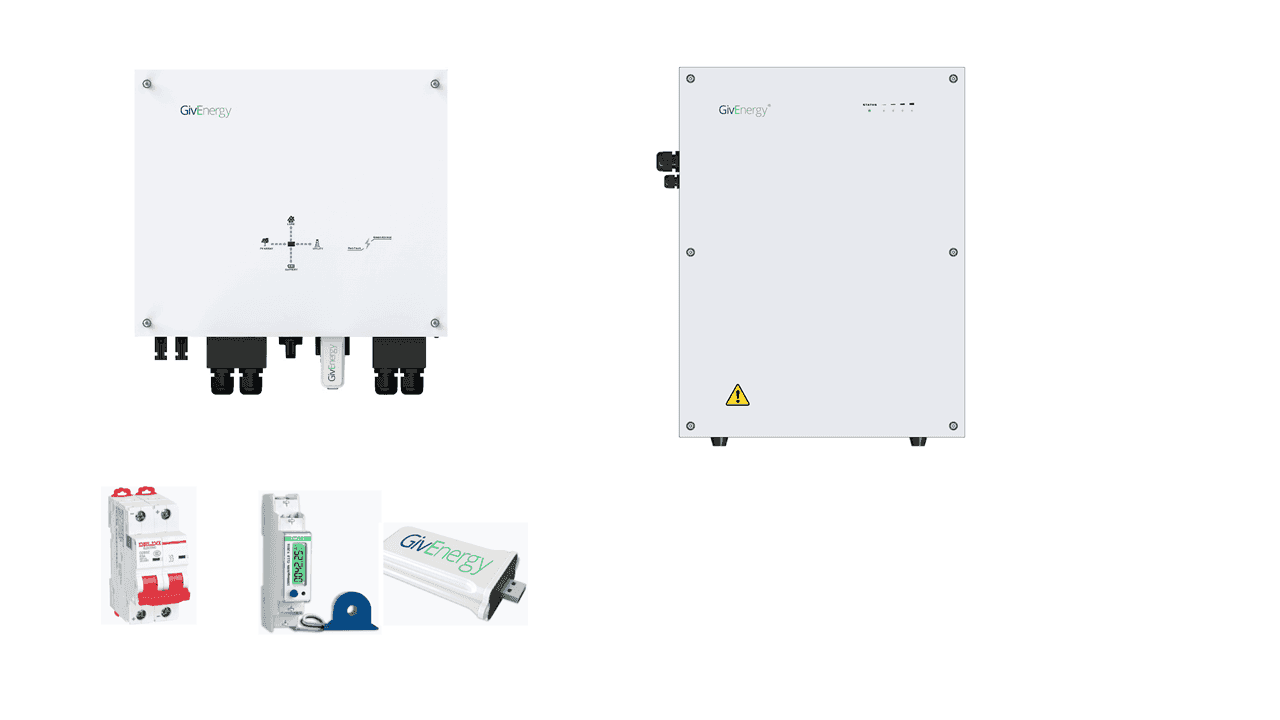

GivEnergy 9.5kWh Gen3 with 3kw AC coupled Gen1 charger Complete kit to charge from grid or solar
#3: 6472#6613
GivEnergy 9.5kWh Datasheet
GivEnergy 9.5kWh Installation Manual
GivEnergy 9.5kWh Warranty
GivEnergy Battery Cable Compatibility Chart
Suitable for charging from Economy 7 such as Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understanding Economy 7
*Collections are not permitted due to health & safety regulations*
Up to 5 batteries can used with each AC charger/hybrid inverter, multiple charger/inverters can be installed.
GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package. The LiFePO4 chemistry is the safest cell technology on the market, whilst GivEnergy in particular offer higher capacity cells, higher density cells and monitor individual cell voltage rather than overall pack voltage. The batteries also utilise prismatic cells rather than conventional soft pouch cells which minimise hear build-up and thermal hotspots.
Now with 12 year warranty - on all GivEnergy batteries and inverters.
Features
- Uses latest LiFePO4 prismatic cell technology
- Retrofit compatibility
- Remote firmware upgrades
- Easy install plug and play
- IP65 Rated
Specs
- Weight: 85kg
- Nominal Energy: 9,500 Wh
- Depth of Discharge: 100%
- Voltage: 51 V
- Continuous Rate of Discharge (Normal Use:: 6,144 W
- Maximum Discharge Rate (5 mins): 6,144 W
- Surge Discharge Rate (15 seconds) : 7,080 W
- Maximum Charge Rate (5 mins): 6,144 W
- Warranty: 12 years
Please note: Givenergy online portal login is required to fully commission this system. If you do not already have a login, please contact GivEnergy before installing. Further all installers need to ave attended GivEnergy Installer Training to install this item. A non-trained installer will void the warranty. A Givenergy system must be connected to the internet to benefit from full warranty services.
Charger:
This AC coupled 3kW unit will charge from surplus PV generation, and also from the grid if you're on an economy tariff. Wi-fi comes as standard and gives access to the powerful monitoring platform, along with remote, site-specific firmware upgrades and troubleshooting via web browser or app.
