GROWATT MIC 750TL X Single MPPT with Arc Fault Protection with DC £199 +VAT

£238.86 incl. VAT

GROWATT MIC 750TL X Single MPPT with Arc Fault Protection with DC £199 +VAT

£238.86 incl. VAT
Contact Us
Product description

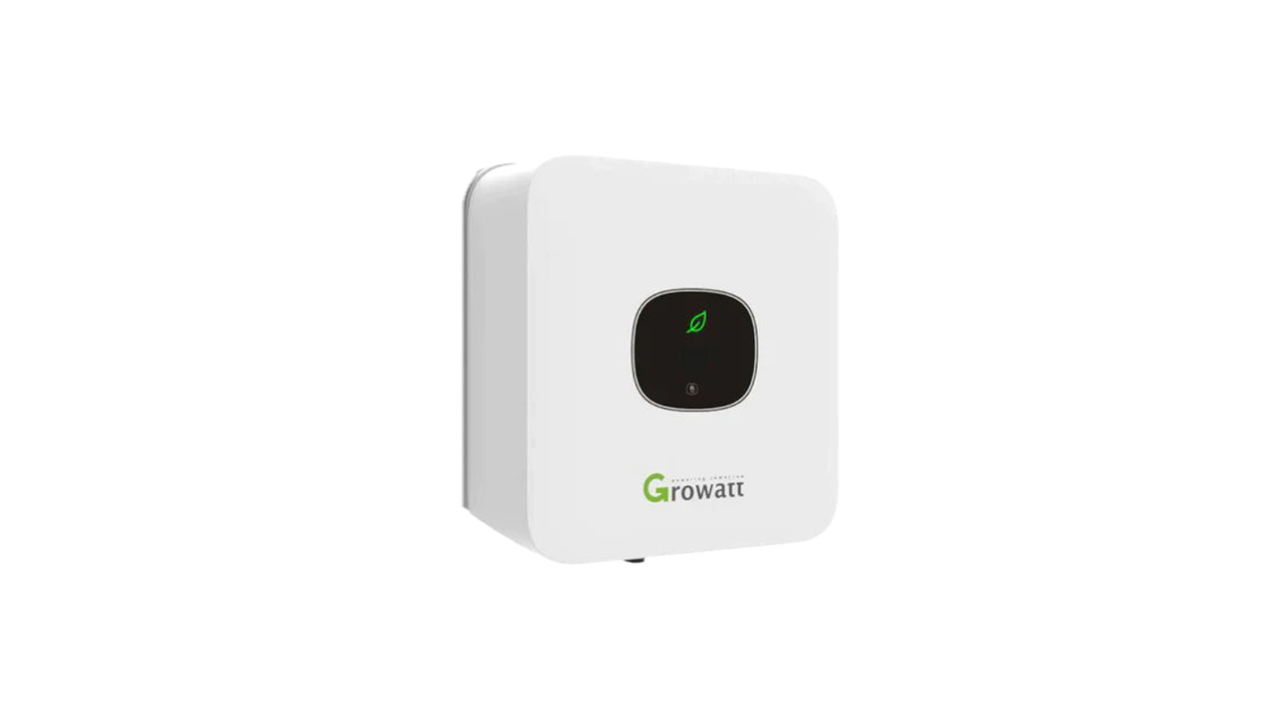

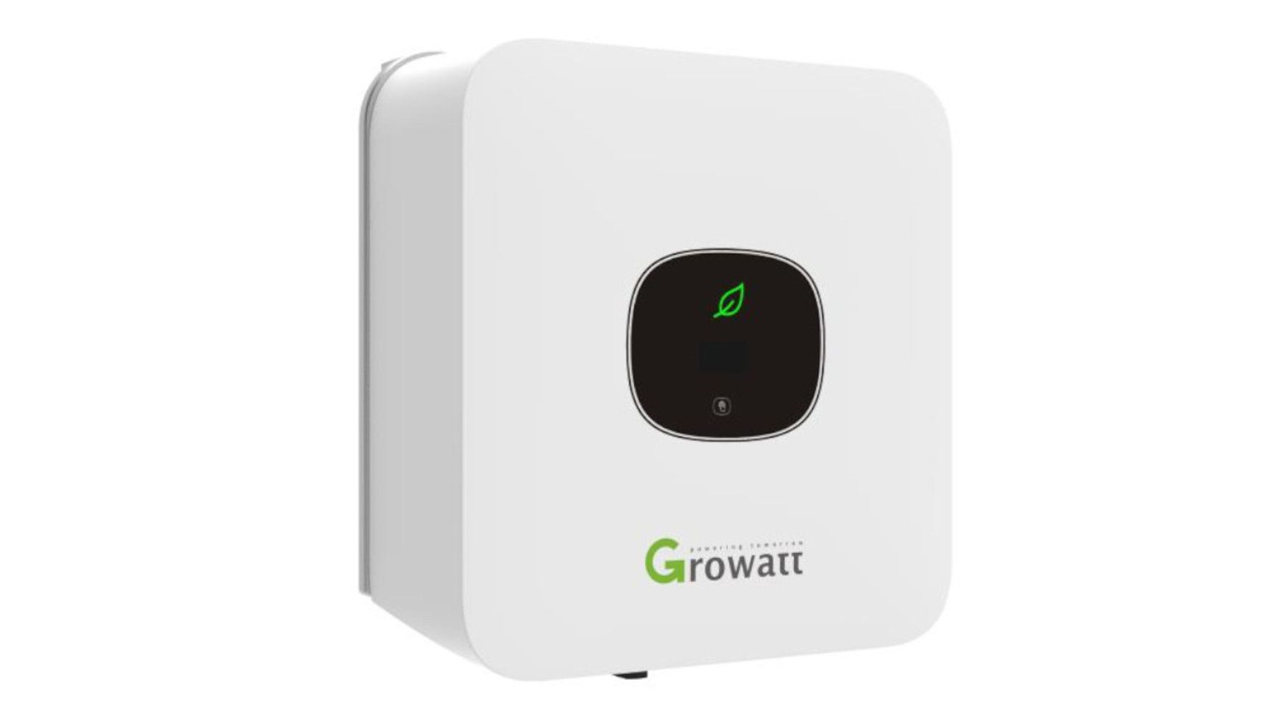

GROWATT MIC 750TL X Single MPPT with Arc Fault Protection with DC

#2: GROWATT-MIC750-TL-X-AFP-DC Inverters - Main Units
#3: 5389

Pdf free icon GROWATT 750TL X Data Sheet

Pdf free icon GROWATT 750TL X Manual

Pdf free icon GROWATT 750TL X Warranty

Pdf free icon GROWATT 750TL X G100 Certificate

*Collections are not permitted due to health & safety regulations*

Rating: 750W
Phases: 1

Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97.6% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.

The Growatt inverter range has the following leading-edge technology.

  • MPPT tracking accuracy of 99%
  • Max. Efficiency 97.6%, European Efficiency 96.5%
  • Transformerless design, offer lighter and more convenient installation
  • Power factor continuously adjustable
  • Flexible interface
  • Touch key & OLED display

UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. This means all installers will need to register an Installer Code to use the Growatt monitoring platform. This installer code can be provided to the end user to allow for the end user to monitor their account.

Weight: 6 kg
Rated Power: 750 W
Min PPT Voltage: 50 V
Max PPT Voltage: 500 V
DC Startup Voltage: 50 V
DC Shutdown Voltage: 50 V
Max Input Voltage: 500 V
Max DC Power: 1,050 W
Max AC Power (5 Minutes): 750 W
Surge AC Power (1 Second): 750 W
Max DC Current: 13 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 1
Euro Efficiency: 96.5 %
Transformer: None
MPPT Quantity : 1
Has Integrated DC Switch: Yes
Warranty: 10 years

Please note: In order to achieve anti reflux function on TL-X and TL-XE range, you must use Meter SPM-E. Using a CT clamp to try and achieve this is not possible. Please contact us for more details.
