K&N Single String DC Switch Disconnector 21A 800V - 20A 1000V £40 +VAT

£48.43 incl. VAT

Product description

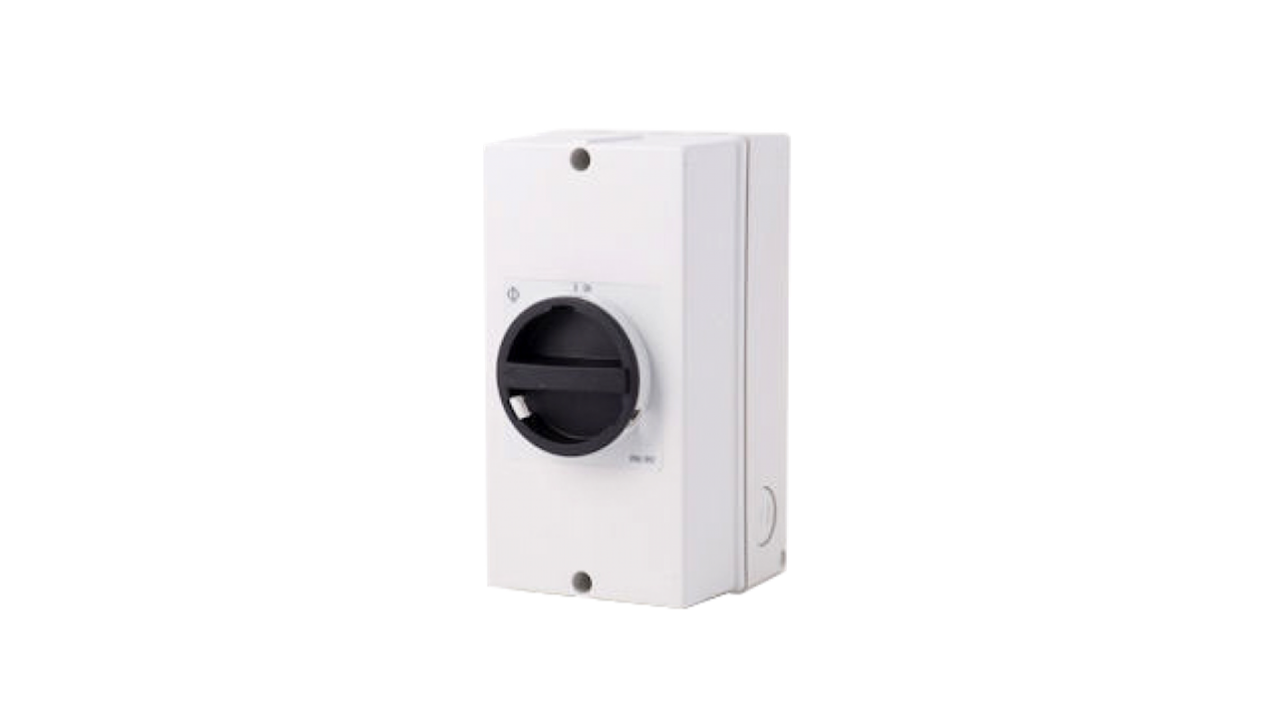

K&N Single String DC Switch Disconnector 21A 800V - 20A 1000V

#2: KG20B-T106D Switches - AC Isolators

Kraus & Naimer DC Switch

Switch Disconnectors. 2 pole for single string

Features

IP66/67 protection
Black Grey padlockable handle - lockable in the 'OFF' position
Class II compliant, Grey insulated enclosure
Switch interlocked with lid to prevent opening in 'ON' position

Specs

Weight: 0.68 kg
Rated Power: 9,600 W
Poles: 2
Max Cable: 6 mm2
Max Voltage: 1,000 V
Rated Current: 21 A
Rated Voltage: 800 V
Rated Current: 20 A
Rated Voltage: 1000 V
Dimensions: 100mm x 190mm x 93mm 9 (w x h x d) )plate backing grey
