SolarEdge Smart EV Charger - 7.4kW, 1ph, 6m Cable Type 2, for UK £931 +VAT

SolarEdge Smart EV Charger - 7.4kW, 1ph, 6m Cable Type 2, (for UK)

#4: SE-EVK74C00-01

SolarEdge EV Charger 7.4kW Data Sheet

SolarEdge EV Charger 7.4kW Installation Manual

SolarEdge EV Charger 7.4kW Registering EV Charger

This Smart EV Charger works seamlessly within the SolarEdge Home range. Homeowners can control and optimise all household energy from the mySolarEdge app. This tethered single phase charger is compatible with SolarEdge SetApp-enabled residential inverters up to 15kW excluding the Single Phase Inverter with Compact Technology.

Features

• Use excess solar power to charge EV

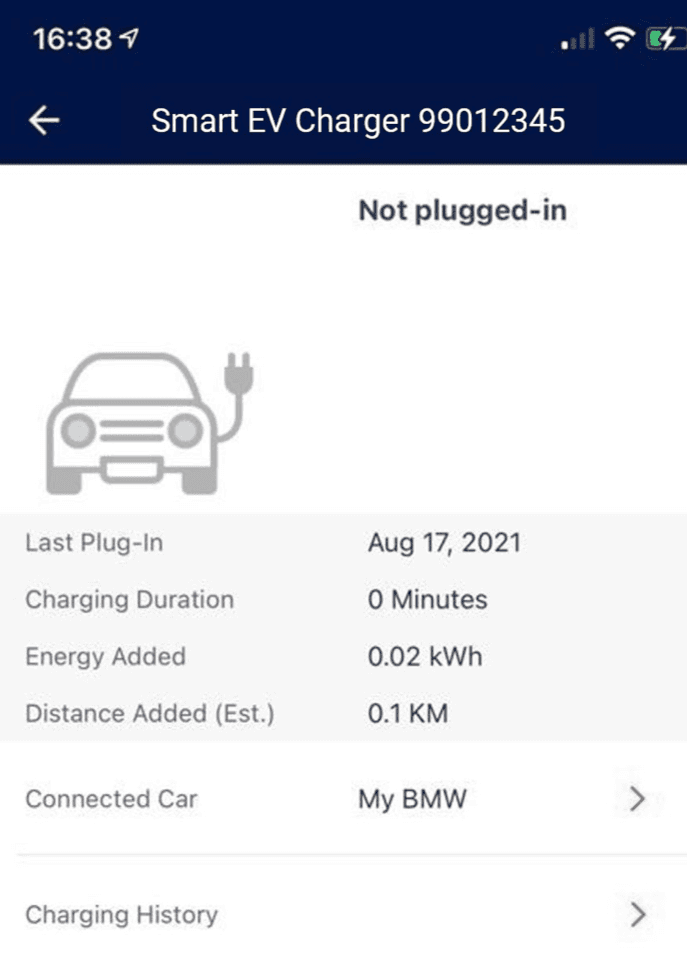

• Monitor and control PV and EV from a single app
• Customize charging schedule for automatic charging during low-rate periods
• G100 Issue 2 Amendment 2 compliant
• Tamper protection and protection from main circuit breaker tripping
• Dynamic balancing of charging power output
• Mode 3 charger combining PV and grid electricity
• Tethered 6m Type 2 cable included
• Smart-scheduling for use with Time-of-Use (TOU) rates — charge from the grid during off-peak hours

• Manual TOU – schedule one off events

• Track PV EV and grid consumption
• Warranty: 3 years

Installation Requirements

• Must install an Earth Electrode
• Residential systems only
• Maximum of three per site
• Must be installed with a system that contains an inverter and meter
• Installed vertically on an appropriate wall surface
• Options to communicate with the cloud and inverter via the local network router:
  • 1. Ethernet
  • 2. LSA+
  • 3. Wi-Fi

Specs

• Phases" 1 Phase
• EV Power Rating: kW7.4
• Dimensions: 260 x 764 x 385 (H x W x D)
