Sunsynk ECCO 8Kw On & Off grid Hybrid solar & wind Inverter & GSL 10.24 kwh kit
#1:SUN-8.0-ECCO-GSL-10.24 Storage Systems - Hybrid Inverter
Sunsynk 8Kw Data Sheet
Sunsynk 8Kw Installation Manual
Sunsynk 8Kw Warranty
Sunsynk 8Kw G99 Certificate
*Collections are not permitted due to health & safety regulations*
The Sunsynk 8kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.
Dual MPPT design
Compatible with most Lithium-ion batteries and Lead Acid batteries
Mobile App for monitoring
Automatic switching from Grid-Tied to Off-Grid mode
Zero export function
Up to 16 units with the same firmware can be paralleled
Essential and Non-Essential Loads outputs
Comes with the Wi-Fi logger and CT
Compatible with SolarMan App for Monitoring

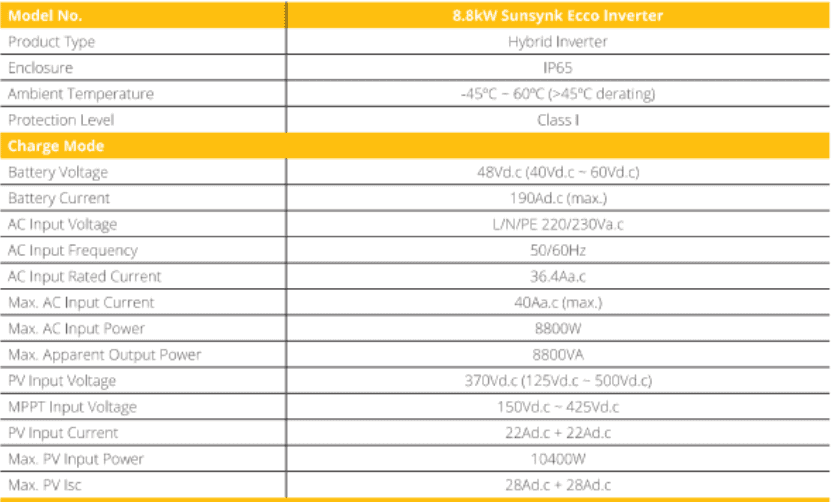

Supplier Part No: Sunsynk-8.8-K-SG01LP1 ECCO
Rated Power: 8,000 W
Min PPT Voltage: 125 V
Max PPT Voltage: 425 V
DC Startup Voltage: 150 V
DC Shutdown Voltage: 150 V
Max Input Voltage: 500 V
Max DC Power: 6,500 W
Max AC Power (5 Minutes): 5,500 W
Surge AC Power (1 Second): 11,000 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Included Connectors: 0
Euro Efficiency: 96.5 %
MPPT Quantity: 2
Has Integrated DC Switch: Yes
GSL 10.24kwh battery
1. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
2. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
3. Compatible to mains voltage or generator power, auto restart while AC is recovering.
4. Users can flexibly match battery capacity, standard battery packages or external batteries.
5. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
6. Integrated design, Easy transportation and installation.
7. Overload/Over temperature/short circuit protection.
9. Our products are CE/ ROSH/ VDE/ MSDS/ UN38.3/ IEC approved, meeting various certification requirements for different countries.
LiFePO4 LFP Battery, stable and safe.
Module, pack, system, triple protection.
Modulat design, single person can carry and install it.
Plug and play, 30 min quick installation.
Space saving: 0.15 sqm foot print.
Dimensions per battery: 621 x 214 x 550
Net weight per battery: 93kg
Max charging current: 100A
Max continuous charging current: 120A
Battery capacity: 200AH
