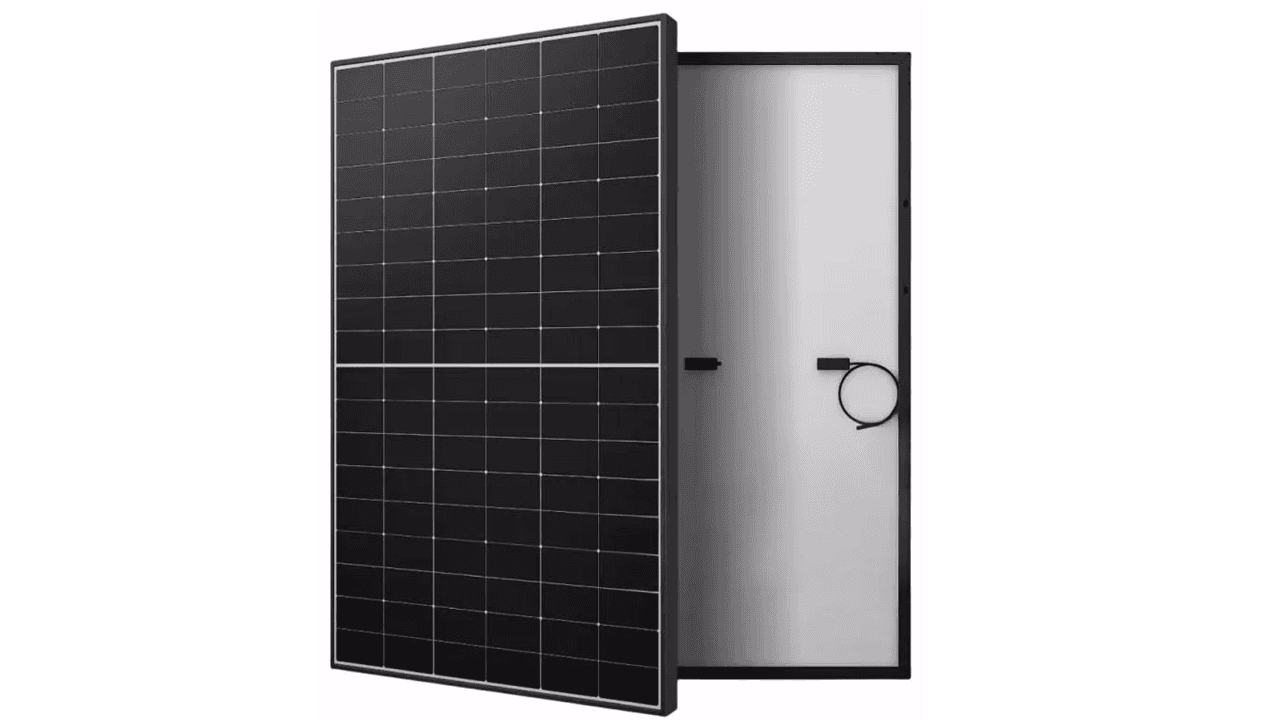

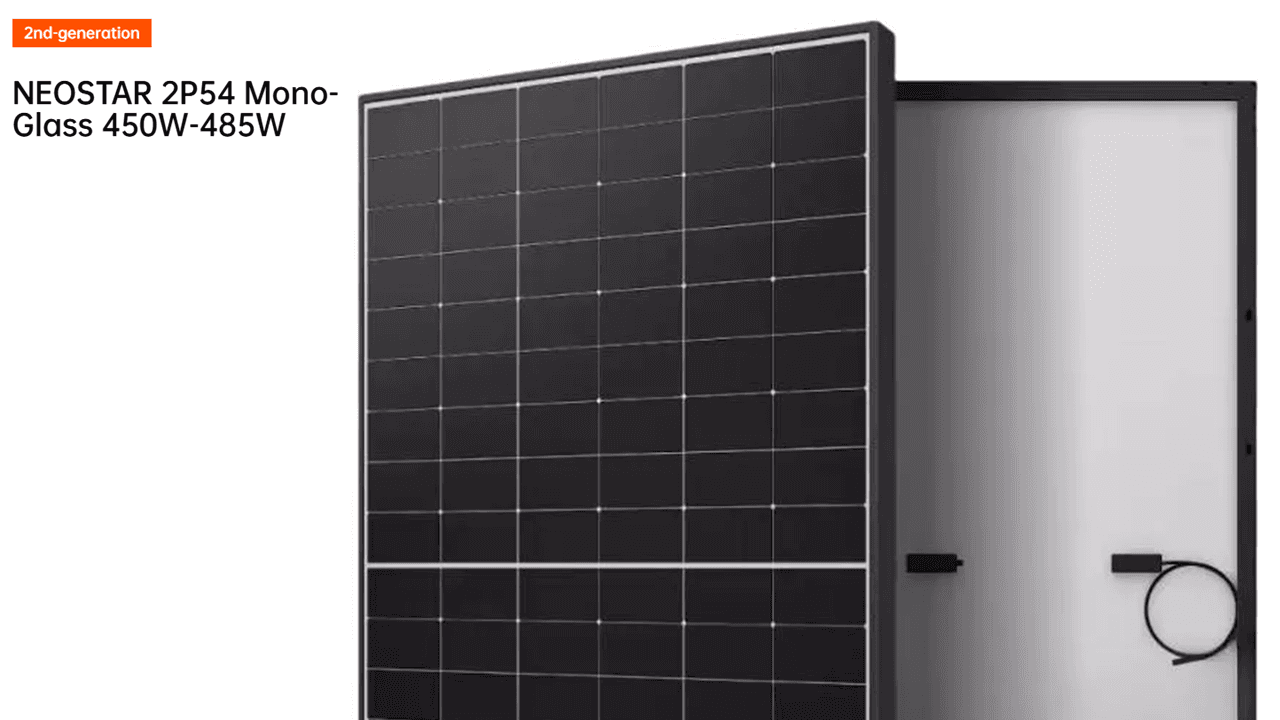

475W Aiko Neostar 2P N-Type ABC, 54 Cell, Mono Glass | Black Frame, Gen 2 | Cell-Level optimisation | Micro-crack resistant

475W Aiko Neostar 2P N-Type ABC, 54 Cell, Single Glass Black Frame, Gen 2

#2: AIK-A-MAH54-475-BF-G2  Panels - Monocrystallines

Aiko 475W Datasheet

Aiko 475W Installation Manual

Aiko 475W Warranty

Aiko MCS Certificate

Please check minimum order quantity prior to ordering as this varies depending on the specific panel.

Minimum order for this panel: 4 panels.

For orders with no minimum please visit our Single Panels page.

Aiko Monocrystaline N-type ABC

The AIKO Neostar 2P black frame panel features high efficiency as well as beautiful, elegant design that is suited to both residential and commercial buildings.  For not much more cost than budget panels you not only get the highest efficiency modules on the market at around 23% and with 15 yr product warranty & 30yr performance warranty but also 2 very unique advantages over any other panels yet on the market:

• Aiko N-Type ABC modules are resistant to micro-cracks which can easily occur with regular modules and can significantly reduce performance
• Aiko N-Type ABC modules have Cell-level partial shade optimization which significantly reduces the impact of shading on the panels, which can happen from any number of reasons such as dirt, clouds trees etc.

Features

• 2023 Winner of Intersolar Innovation Award
• 2023 Red Dot Design Award and 2024 ESG transparency
• No.1 efficiency in the market
• Cell-level partial shade optimisation (one and only in the industry)
• High temperature restriction for fire safety
• Micro-crack resistance
• Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
• Elegant no-busbar look

Specs

• Weight: Rating: 20.6kg
• Rated Power: 475 W
• Efficiency: 23.8%
• Width: 1,134 mm
• Depth: 30 mm
• Length: 1,757 mm
• VMPP: 34.8 V
• IMPP: 13.66 A
• Isc: 14.35 A
• Voc: 41.24 V
• Temp. Coefficient (Mpp):-0.26 %
• Clamp position on panel: Long and short side
• Connector: EVO2
