475W Aiko Neostar 3S N-Type ABC, 54 Cell, Mono Glass | All Black, Gen 3 | Cell-Level optimisation | Micro-crack resistant

£104.00 + VAT

475W Aiko Neostar 3S N-Type ABC, 54 Cell, Mono Glass | All Black, Gen 3 | Cell-Level optimisation | Micro-crack resistant

£104.00 + VAT
Contact Us
Product description

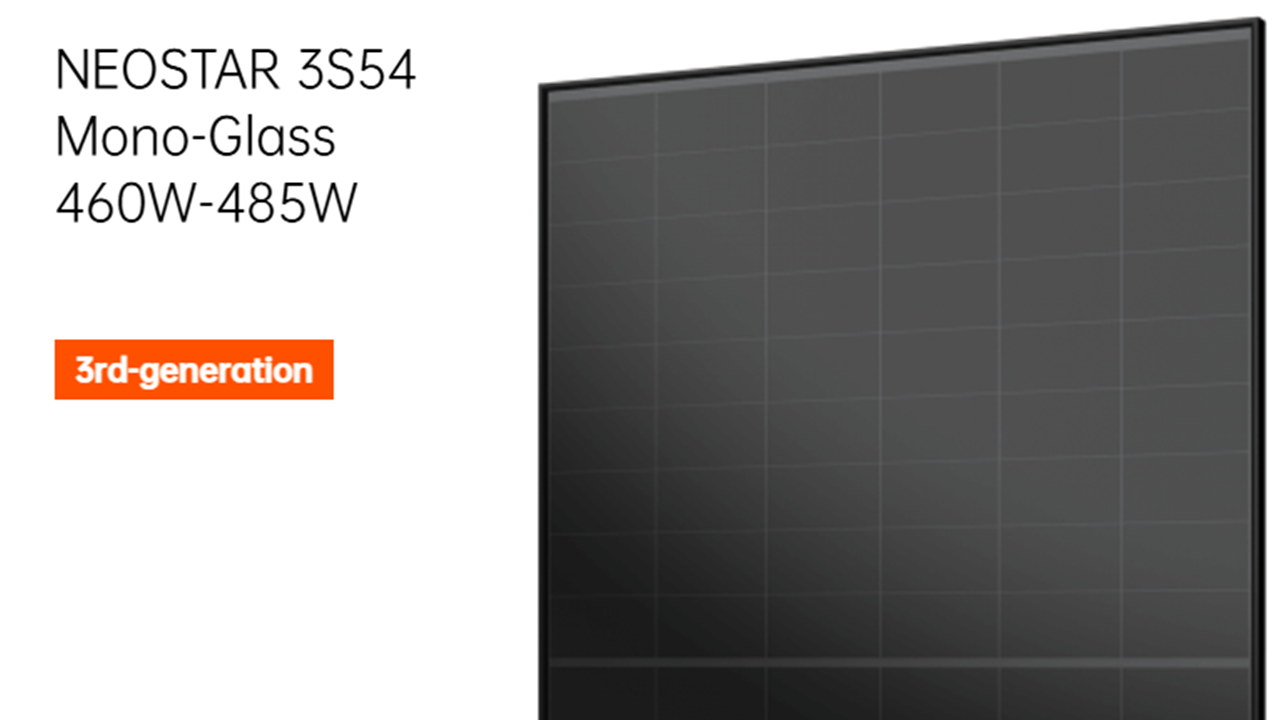

475W Aiko Neostar 3S N-Type ABC, 54 Cell, Mono Glass All Black, Gen 3

#2: AIK-A-MCE54-475-AB-G3

Pdf free icon Aiko 475W Datasheet

Pdf free icon Aiko 475W Installation Manual

Pdf free icon Aiko 475W Warranty

Pdf free icon Aiko MCS Certificate

Minimum order for this panel: 3 panels

Please view datasheet for more accurate product image.

Aiko Neostar 3S ABC  N-type Mono

AIKO’s cutting-edge technology have resulted in their new Gen 3 All-Black 54-cell panels. AIKO's third generation of modules have:

  •  an even higher efficiency and larger generating area,
  • a 15-20kW power rating increase over Gen2 panels

As per the previous module, panels feature a blacked-out effect and bezel-less edge providing a sleek look to the panel’s overall design. AIKO 54 cell panels are an excellent choice for residential builds looking for the highest efficiency available.

For not much more cost than budget panels you not only get the highest efficiency modules on the market at around 23% and with a 25 yr product warranty & 30yr performance warranty but also 2 very unique advantages over any other panels yet on the market:

  • Aiko N-Type ABC modules are resistant to micro-cracks which can easily occur with regular modules and can significantly reduce performance
  • Aiko N-Type ABC modules have Cell-level partial shade optimization which significantly reduces the impact of shading on the panels, which can happen from any number of reasons such as dirt, clouds trees etc.

Features

  • 2023 Winner of Intersolar Innovation Award
  • 2023 Red Dot Design Award and 2024 ESG transparency
  • No.1 efficiency in the market
  • Cell-level partial shade optimisation (one and only in the industry)
  • High temperature restriction for fire safety
  • Micro-crack resistance
  • Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
  • Elegant no-busbar look

Specs

  • Weight: 20.6kg
  • Rated Power: 475 W
  • Efficiency: 23.8%
  • Width: 1,134 mm
  • Depth: 30 mm
  • Length: 1,762 mm
  • VMPP: 34.4 V
  • IMPP: 13.81 A
  • Isc: 14.76 A
  • Voc: 40.8 V
  • Temp. Coefficient (Pmax):-0.26 %
  • Clamp position on panel: Long and short side
  • Connector: EVO2
  • Product Warranty: 25 Years
  • Performance Warranty: 30 Years
