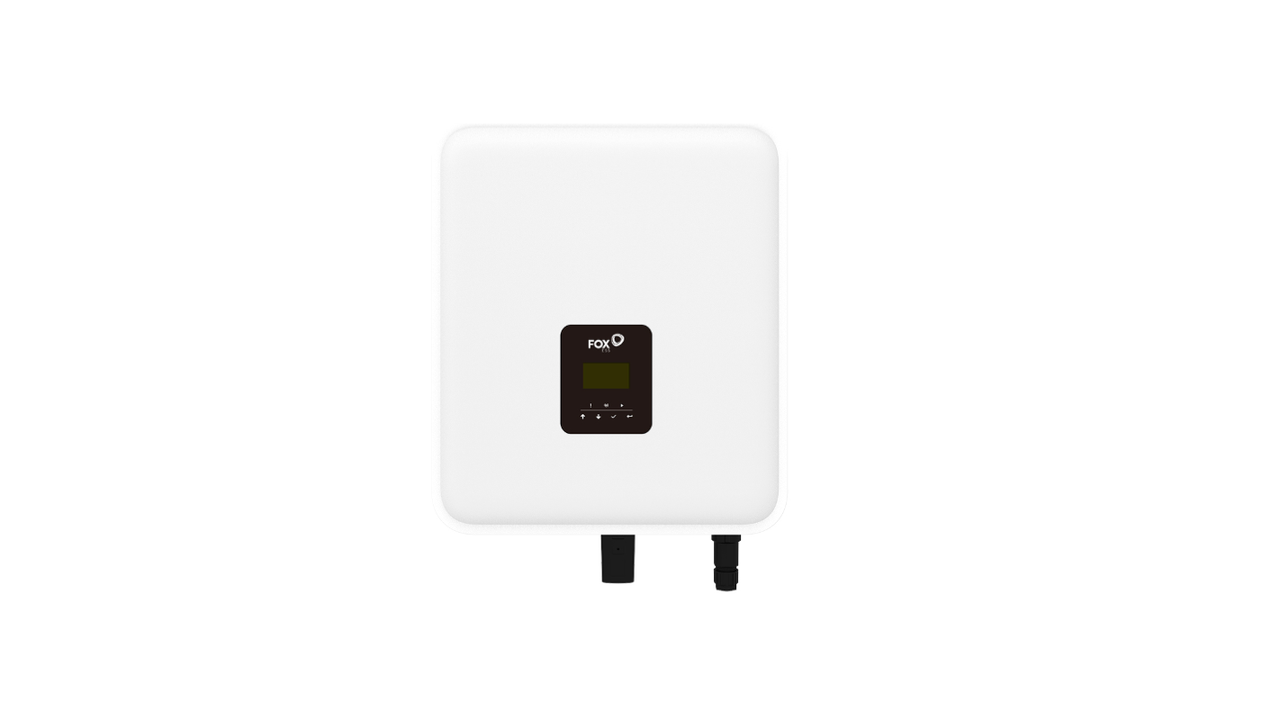

FoxESS KH7 7kW Single-Phase Hybrid Inverter
The FoxESS KH7 is a sleek 7kW single-phase full hybrid inverter built with IP65 protection and high-voltage battery compatibility. Designed for maximum efficiency, it delivers a 97.4% round-trip efficiency, ensuring you get the best performance from your solar installation.
Its triple MPPT design allows for optimal solar production even with panels on multiple roof orientations, while its expandable battery capacity makes it a flexible and future-proof solution.
Key Features
-
IP65 Rated – dust and water resistant, perfect for outdoor installation
-
Remote Monitoring – manage and track system performance anywhere
-

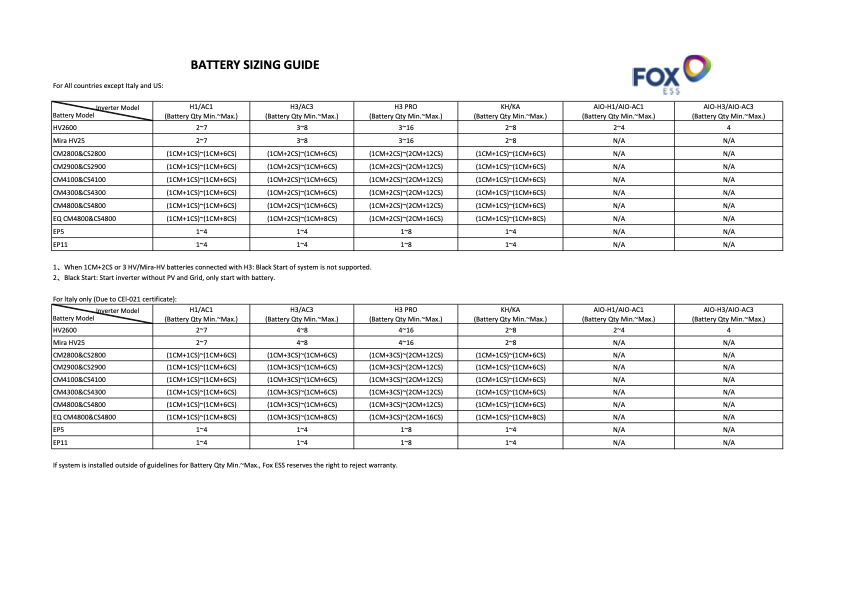

Expandable Storage – compatible with all Cube & EP5/11 batteries
-
Triple MPPT Design – ensures maximum energy harvest from multiple arrays
-
High Round-Trip Efficiency – up to 97% system efficiency
-
Plug & Play Installation – supplied with CT clamps and meter for convenience
Included in the Box
Technical Specifications
-
Weight: 29 kg
-
Rated Power: 7,000 W
-
Min PPT Voltage: 80 V
-
Max PPT Voltage: 500 V
-
DC Startup Voltage: 75 V
-
DC Shutdown Voltage: 601 V
-
Max Input Voltage: 600 V
-
Max DC Power (5 minutes): 10,500 W
-
Max AC Power (5 minutes): 7,000 W
-
Surge AC Power (1 second): 7,700 W
-
Max DC Current: 48 A
-
Max DC Inputs: 3
-
DC Fuses: None
-
Connector Type: MC4
-
Included Connectors: 6
-
Euro Efficiency: 97.4%
-
Transformer: None
-
MPPT Quantity: 3
-
Integrated DC Switch: Yes
-
Warranty: 5 years
Why Choose the FoxESS KH7?
The FoxESS KH7 inverter combines high efficiency, expandability, and smart monitoring in a compact design. It’s the ideal choice for homeowners and small businesses seeking to maximize solar production and ensure long-term reliability with flexible battery storage options.
Remember to register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page.
Please check the warranty document for more information.
