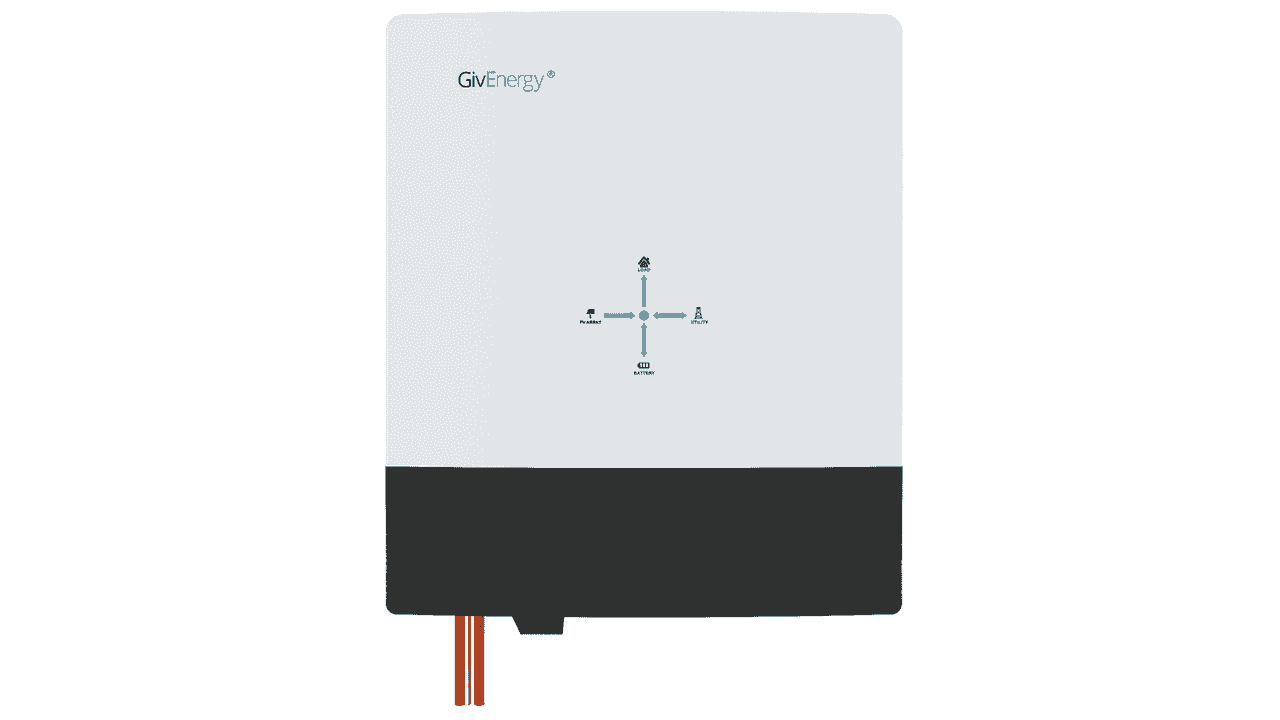

GivEnergy 3.6kW Gen 3 Hybrid PV Battery Inverter with Bonding kit
#2: GIV-HY-3.6-G3-PE
#3: Gen3 3.6kW
GivEnergy Full Schematics
GIV-HY 3.6kW DataSheet
GIV-HY 3.6 G98 Certificate
GIV-HY 3.6 Warranty
GivEnergy Welcome Pack
Kit includes items required specifically for the Gen 3 hybrid:
1 x GIV-HY-3.6-G3 GivEnergy 3.6kW Gen 3 Hybrid
1 x GIV-PE-KIT-G3 Earth bonding kit
Suitable for charging from Economy 7 such as Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understaning Economy 7
GivEnergy Gen3 Hybrid Inverter – High-Performance DC-Coupled Storage Solution
Upgrade your solar PV system with the GivEnergy Gen3 Hybrid Inverter, a next-generation DC-coupled solution designed for seamless battery integration. Combining cutting-edge technology, high efficiency, and a compact, clean design, the Gen3 inverter enhances your solar energy system while providing reliable backup power.
Key Features
-
Next-Generation Design: Third-generation GivEnergy hybrid inverter with a cleaner, more compact design enclosing all connection ports.
-
High Input Capacity: Increased maximum input current per string of 15A, allowing use with higher-current solar panels.
-
Dual MPPTs: Optimises energy harvest with a wide MPPT range of 120–550V.
-
In-Built Connectivity: Integrated WiFi and LAN for easy monitoring and remote access.
-
Flexible Tariff Operation: Charge the battery during off-peak periods and discharge at peak times to maximise savings.
-
Fast Backup Switching: 10ms automatic switch time ensures uninterrupted power during outages.
-
Extended Warranty: Supplied with a 5-year manufacturer’s warranty, extendable to 10–12 years, supported by GivEnergy UK.
AC Specifications
| Specification |
Details |
| Max AC Power |
3.6 kW |
| Max AC Current |
16 A |
| Phases |
1 |
| Nominal AC Output |
230 V AC |
| Automatic Switch Time |
10 ms |
DC Specifications
| Specification |
Details |
| Max PV Power |
7.5 kW |
| Max PV Current (Isc) |
20 A |
| Max String Current |
15 A |
| Max Voltage |
580 V |
| Start-Up Voltage |
150 V |
| Number of MPPTs |
2 |
| MPPT Range |
120–550 V |
Battery Compatibility
| Specification |
Details |
| Battery Type |
LiFePO4 |
| Voltage Range |
45–58 V |
| Max Charge Current |
65 A |
| Max Discharge Current |
81 A |
| Max Charge/Discharge Power |
3.3 kW / 3.6 kW |
System Performance & Design
-
Max Efficiency: 97.6%
-
Charge/Discharge Efficiency: 94% / 94%
-
IP Rating: IP65 for indoor or outdoor installation
-
Weight: 32 kg
-
Dimensions: 588 × 214 × 480 mm
Why Choose the GivEnergy Gen3 Hybrid Inverter?
The GivEnergy Gen3 Hybrid Inverter is perfect for homeowners and installers seeking:
-
Seamless DC-coupled battery integration
-
High efficiency solar energy harvesting
-
Reliable backup during power outages
-
Smart tariff optimisation to save money
-
Long-lasting performance with up to 12-year warranty coverage
