Sunsynk 5kW ECCO Hybrid Inverter – Smart Energy Management for Homes & Businesses
The Sunsynk 5kW ECCO Hybrid Inverter is a powerful and compact energy solution designed to optimise solar generation, reduce grid reliance, and unlock savings through smart energy management.
With API integration for Octopus Agile & Flux tariffs, this hybrid inverter allows you to buy electricity at cheaper off-peak rates and even sell excess energy back to the grid through SEG (Smart Export Guarantee) payments. It’s the perfect choice for modern households and businesses looking to take full control of their energy flow.
Key Features & Benefits
⚡ Advanced Power Management
-
Dual MPPT design for optimised solar efficiency.
-

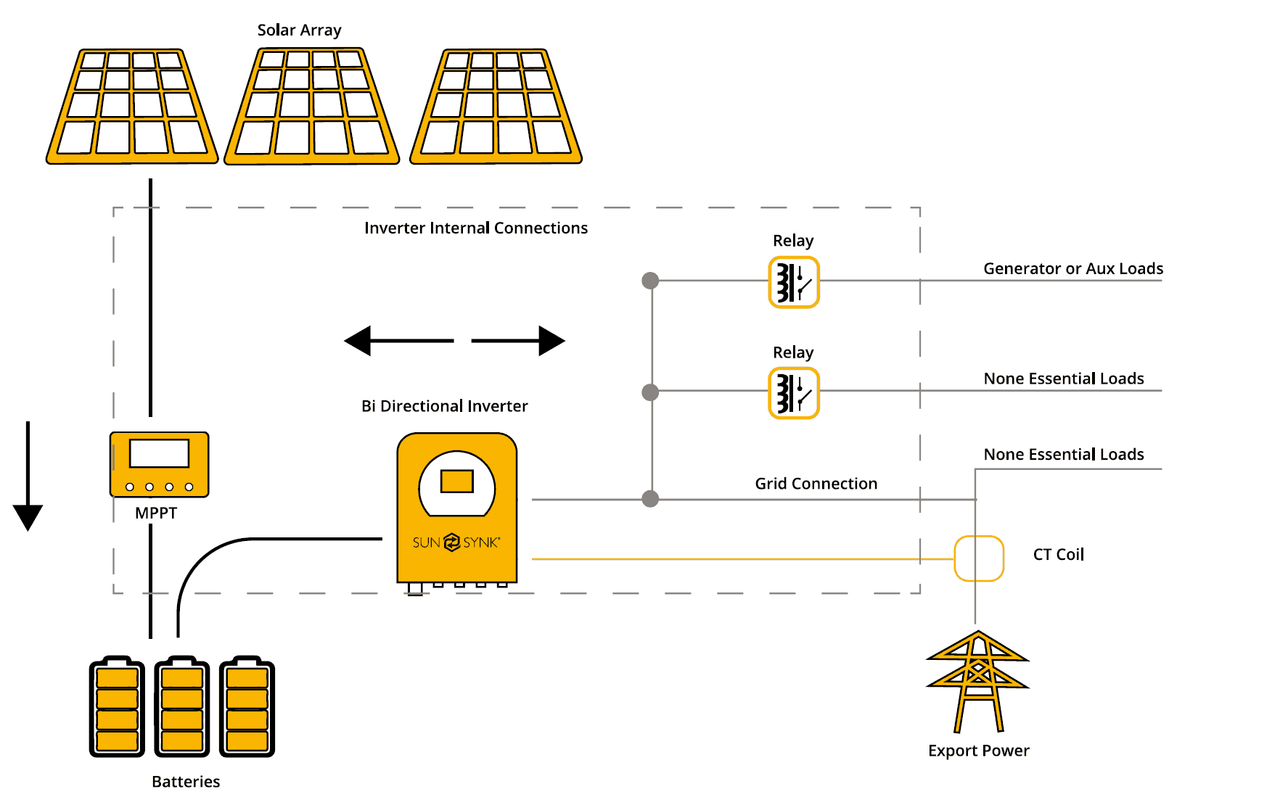

Seamlessly manages power from solar panels, the grid, and generators.
-
Zero export function for regulatory compliance.
📱 Smart Monitoring & Control
-
Built-in Wi-Fi logger and CT for real-time monitoring.
-
Remote access via Sunsynk App and SolarMan App.
-
Automatic Grid-Tied to Off-Grid switching for uninterrupted power supply.
🔋 Flexible & Scalable Energy Storage
-
Compatible with most Lithium-ion and Lead Acid batteries.
-

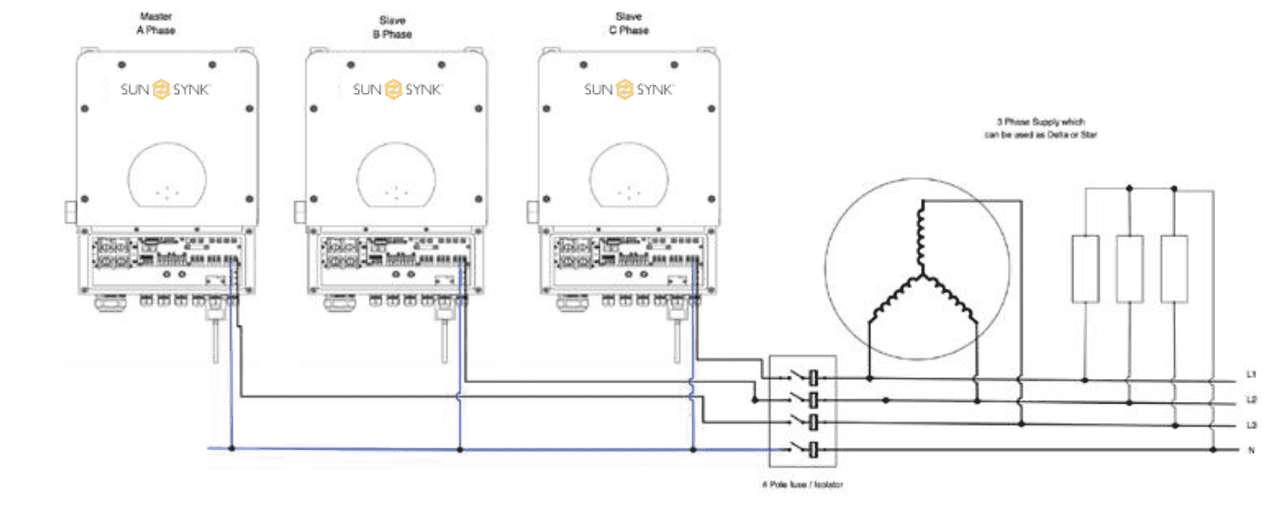

Parallel up to 16 units with matching firmware for larger systems.
-
Separate Essential and Non-Essential load outputs for smarter energy allocation.
🌦 Durable & Reliable
-
IP65-rated for indoor and outdoor installations.
-
Compact design with the full power of previous Sunsynk models.
-
High Euro efficiency of 96.5% for cost-effective energy conversion.

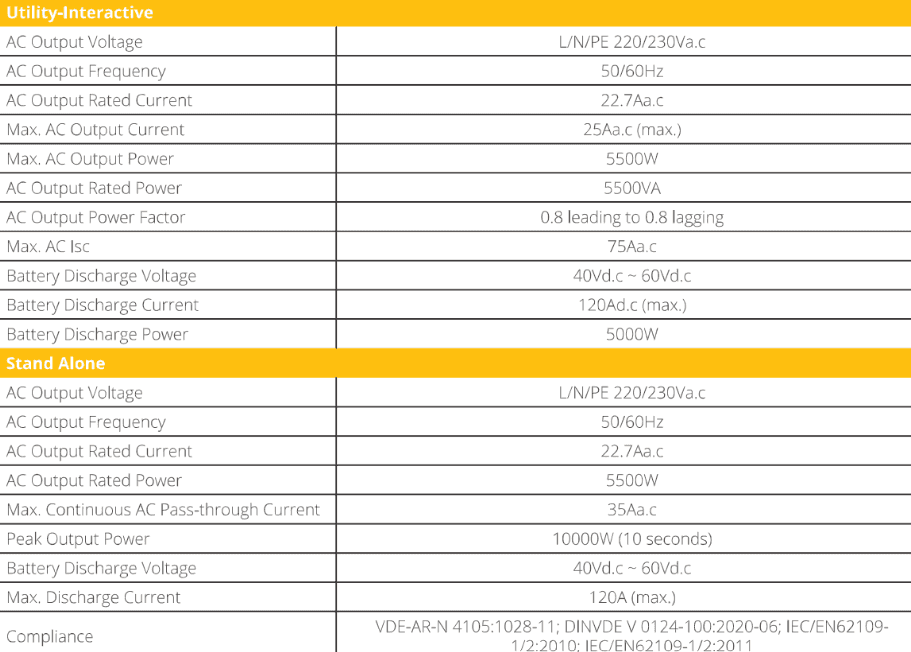

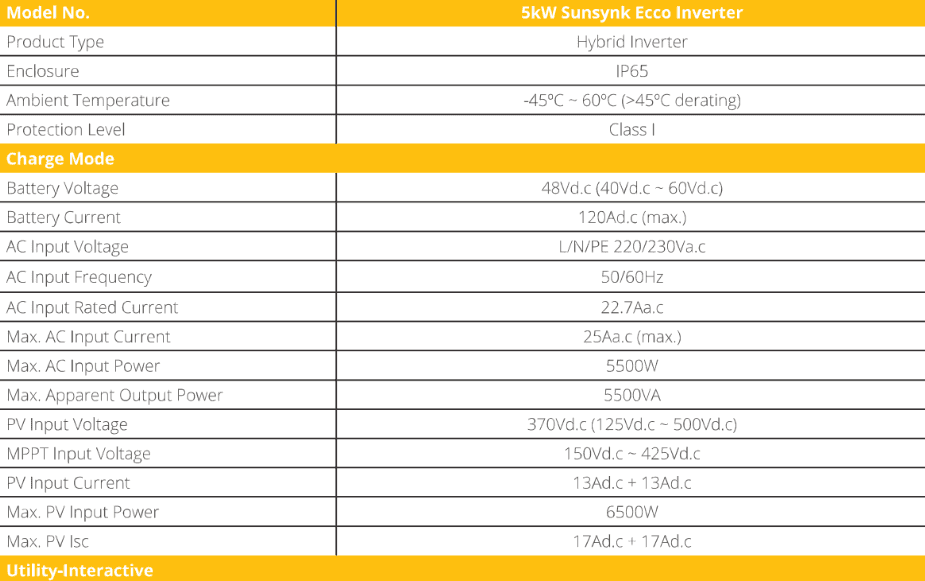

Technical Specifications
-
Rated Power: 5,000 W
-
Min MPPT Voltage: 125 V
-
Max MPPT Voltage: 425 V
-
DC Startup Voltage: 150 V
-
DC Shutdown Voltage: 150 V
-
Max Input Voltage: 500 V
-
Max DC Power: 6,500 W
-
Max AC Power (5 min): 5,500 W
-
Surge AC Power (1 sec): 11,000 W
-
Max DC Current: 22 A
-
Max DC Inputs: 2
-
DC Fuses: None
-
Connector Type: MC4
-
Included Connectors: 0
-
Euro Efficiency: 96.5 %
-
Transformer: None
-
MPPT Quantity: 2
-
Integrated DC Switch: Yes
Why Choose the Sunsynk 5kW ECCO Hybrid Inverter?
-
Save money by buying cheap off-peak electricity and selling excess back to the grid.
-
Seamless integration with Octopus Agile & Flux tariffs.
-
Future-proof design with parallel expansion up to 16 units.
-
Smart monitoring for total visibility and control.
-
Reliable and efficient with IP65 protection for indoor/outdoor use.
Take complete control of your inverter by using the Sunsynk App. Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.
Real time push notifications. For example Instant notification if you have a power cut or you are running on generator, or batteries
Change all settings remotely. Our data logger allows you to change and edit all settings remotely from anywhere in the world, provided that you have an Internet connection.
Complete control over your Hybrid Inverter. Using our data logger gives you complete control over your hybrid inverter. You will gain access to features that cannot be accessed via the inverter control panel, such as the update / upgrade feature to update the inverter operating system yourself.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Live stats and monitoring. You have access to multiple stats including live monitoring and reporting. Using this app allows you to see peaks in your energy usage, you can then customize your system to work around this to help you save money on your electricity bills.
Reporting. Generate custom reports and graphs to help you monitor and understand how your system is working and where you are saving money.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Sunsynk is integrated with Octopus Agile, Flux & Go. Our data logger platform has been integrated with Octopus Agile. Having access to these rates, you can setup and monitor your charge and discharge figures, this enables you to charge your battery at the cheapest rates. When the price increases your battery discharges and saves you money.
