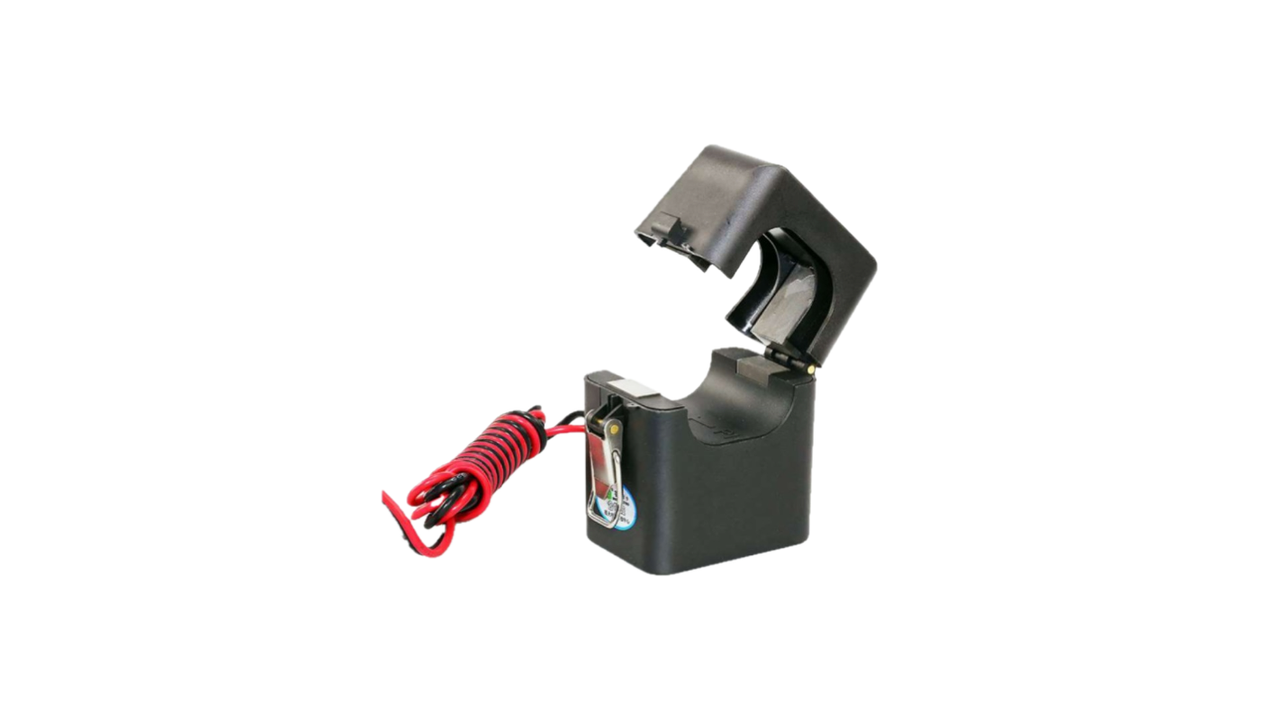

CT Clamp – 12A / 0.4A Split Core Current Transformer

Ensure accurate current monitoring with this high-quality CT clamp, designed for ease of installation and reliable performance. With its split-core design, it allows for simple retrofitting without the need to disconnect existing cables, making it ideal for both residential and commercial applications.

Perfect for monitoring energy usage, managing loads, and integrating with monitoring systems, this CT clamp is built to deliver precise readings while maintaining durability.

Key Features

• Split-Core Design – easy installation without cable disconnection

• Accurate Measurement – rated for 12A primary, 0.4A secondary

• Durable Build – engineered for reliable long-term use

• Flexible Application – suitable for energy monitoring and system optimisation

• Multiple Options Available – other sizes available on request

Technical Specifications

• Primary Rating: 12A

• Secondary Rating: 0.4A

• Hole Dimensions: 36.1mm (outer width) / 15.7mm (inner width)

• Internal Height: 16.3mm

• Overall Dimensions: 46.8mm × 32.3mm (H × D)

📦 CT Clamp Information

• Most CT clamps are supplied as split core for easier fitment.

• CT clamps must be rated to the maximum current of the monitored cable (typically the rating of the protective device).

• For best accuracy, select a CT clamp sized as closely as possible to the rated supply and ensure a tight fit around the cable or bus bar.

• Many other sizes are available on request.
