Solis 3.6kW Hybrid Energy Storage Inverter with DC switch for solar battery storage
#2: SOL-3.6K-RHI-48ES-5G-DC Storage Systems - Hybrid Inverter
#3 : S5-EH1P3.6K-L
Solis 3.6kw Hybrid Inverter Data Sheet
Solis 3.6kW Hybrid Inverter Manual
Solis 3.6kW Hybrid Inverter Warranty
Solis 3.6kW Hybrid Inverter G99 Certification
For additional 5 year warranty, please click here.

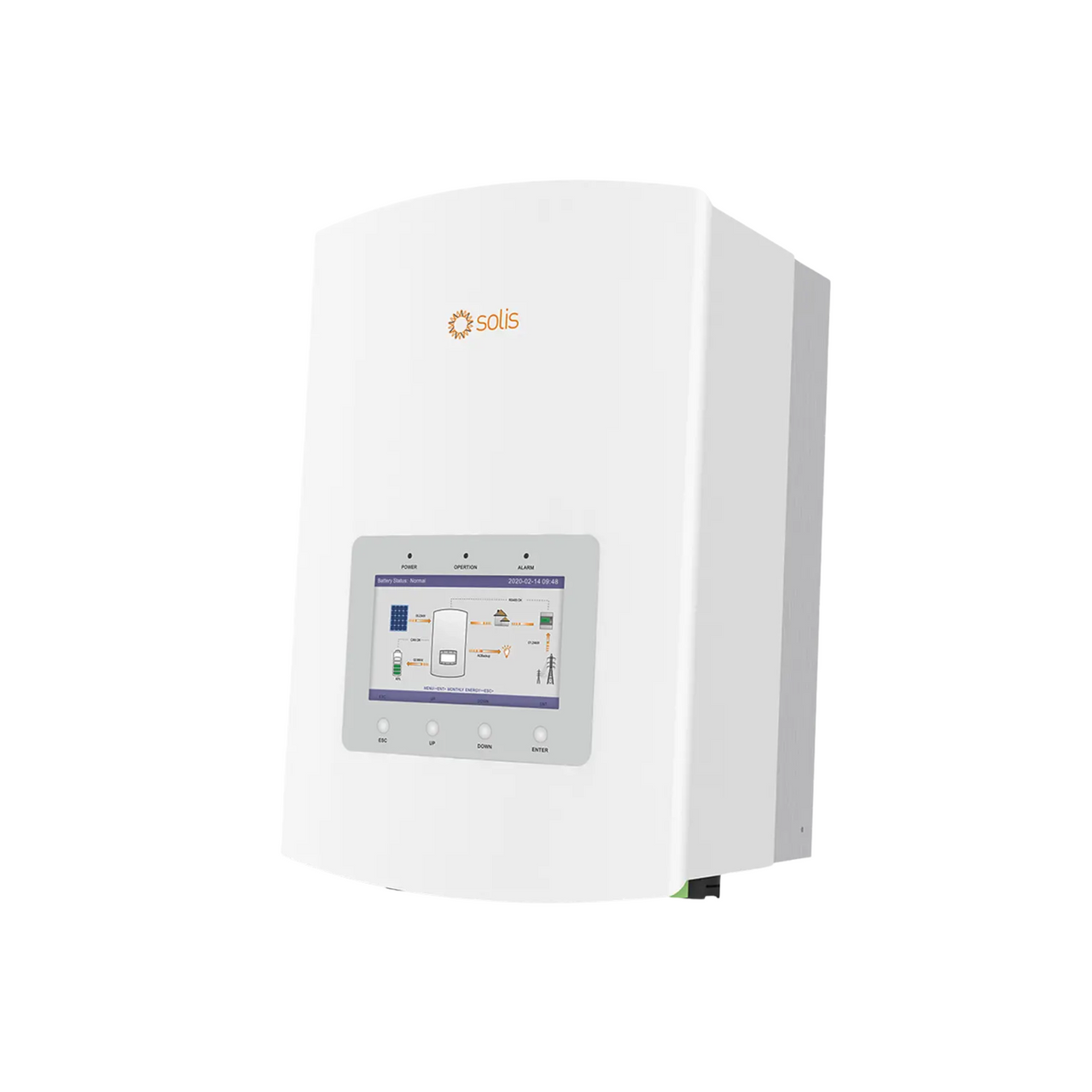

Solis S5-EH1P3.6K-L 5G Hybrid Inverter – 3.6kW (Single Phase)
Please note: This inverter is supplied with a 3-phase Eastron SDM630 energy meter and CT clamp, which can also be used in single-phase installations.
The Solis S5-EH1P3.6K-L 5G Hybrid Inverter is designed to deliver reliable backup power during load shedding and help reduce electricity costs by maximising self-consumption. With high efficiency, intelligent management features, and a fanless IP65 design, it is a robust and versatile solution for residential energy systems.
Key Features
-
Supplied with 3ph energy meter + CT clamp (compatible with 1ph)
-
Fanless IP65 design for silent, durable operation
-
High charge/discharge efficiency for maximum energy utilisation
-
Multiple operating modes to maximise self-consumption
-
Intelligent BMS function for enhanced battery safety
-
24/7 real-time energy monitoring and intelligent control
-
Remote monitoring, control, and firmware upgrades
Technical Specifications
-
Rated Power: 3,600 W
-
Max DC Power: 5,700 W
-
Max Input Voltage: 600 V
-
MPPT Voltage Range: 90 V – 520 V
-
DC Startup Voltage: 120 V
-
Max DC Current: 30 A
-
MPPT Trackers: 2
-
Euro Efficiency: 96.8%
-
Integrated DC Switch: Yes
-
Surge AC Power (1s): 4,000 W
-
Weight: 20.5 kg
-
Warranty: 5 years
The Solis S5-EH1P 5G Hybrid Inverter is the perfect balance of performance, safety, and smart energy management, making it an excellent choice for modern solar and storage setups.
