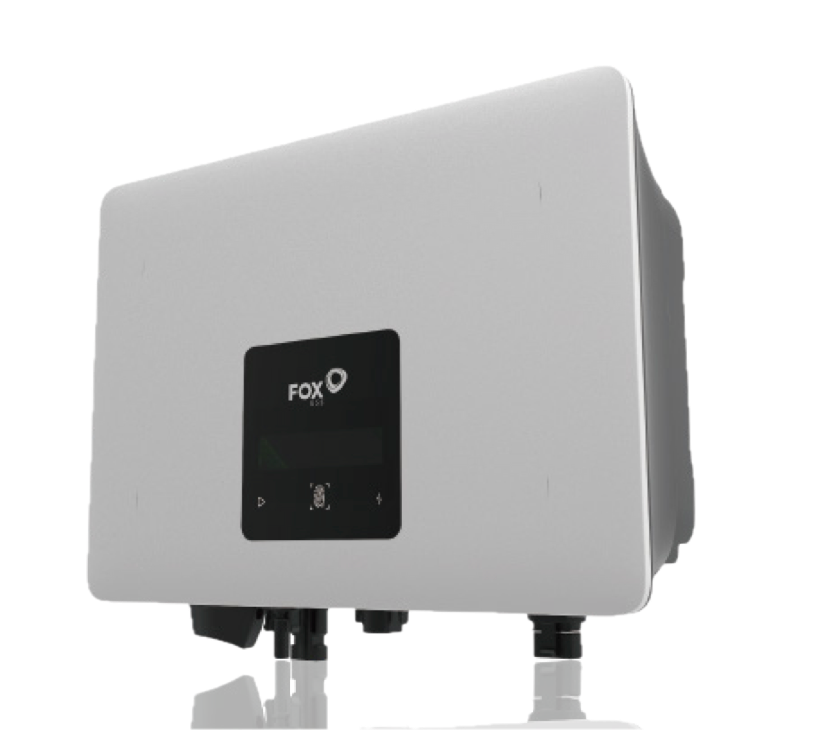

Fox ESS 0.7kW S Series 1PH Single Tracker PV Inverter

Fox ESS 0.7kW S Series 1PH Single Tracker PV Inverter

#2: FE-S700 Inverters - Main Units

Fox S Series 0.7kW Data Sheet

Fox S Series 0.7kW User Manual

Fox S Series 0.7.kW Install Guide

Fox ESS S Series Single-MPPT Inverter (0.7–3.0kW Models)

The Fox ESS S Series is a compact, high-efficiency solar inverter designed for small residential systems. With 97.4% maximum efficiency, a low start-up voltage, and single-MPPT design, it delivers reliable performance and maximum solar yields.

Engineered with an IP65 weatherproof rating, the S Series is suitable for both indoor and outdoor installations. Plus, it’s battery-ready, making future upgrades simple when paired with a Fox ESS charge controller.

⚠️ Warranty Notice: Standard warranty is 5 years. Register your install online with Fox to extend to 10 years.

Key Features

• High Performance: Wide voltage range, low start-up voltage, and up to 97.4% efficiency.

• Easy Installation: Plug-and-play configuration with flexible setup options.

• Durable Design: IP65 rated for outdoor installation and long-lasting reliability.

• Battery Ready: Upgrade easily by pairing with a Fox ESS charge controller.

• Smart Monitoring: Control and track system performance via the Fox app or web portal.

Technical Specifications

• Weight: 5.4 kg

• Rated Power: 700 W

• Min PPT Voltage: 60 V

• Max PPT Voltage: 500 V

• DC Startup Voltage: 60 V

• DC Shutdown Voltage: 500 V

• Max Input Voltage: 500 V

• Max DC Power: 1,050 W

• Max AC Power (5 Minutes): 700 W

• Surge AC Power (1 Second): 800 W

• Max DC Current: 14 A

• Max DC Inputs: 1

• Has DC Fuses: 1

• Connector Type: MC4 (1 included)

• Euro Efficiency: 96.5 %

• Transformer: None

• MPPT Quantity: 1

• Integrated DC Switch: Yes

• Warranty: 5 years (extendable to 10 years with registration)
