#2: SOL-S6-EH1P8K-L-PLUS
Solis 8kW Data Sheet
Solis 8kW User Manual
Solis 8kW Warranty

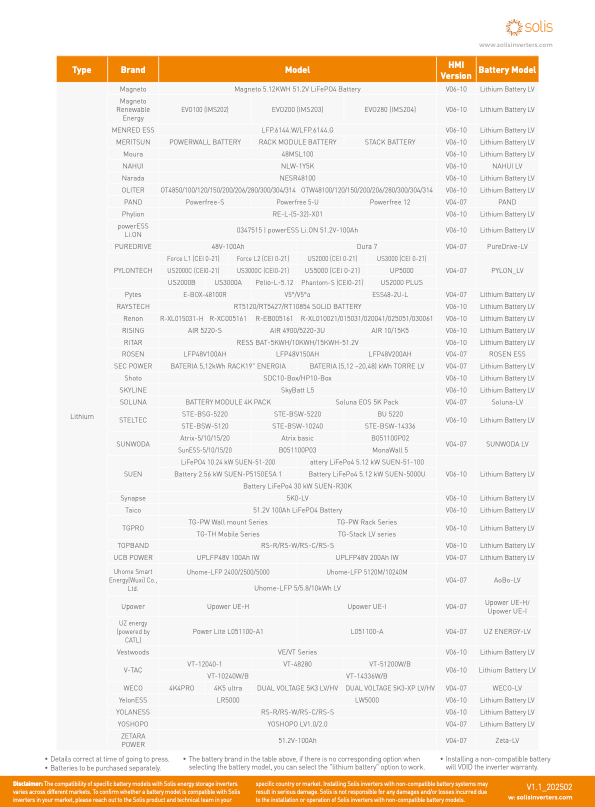

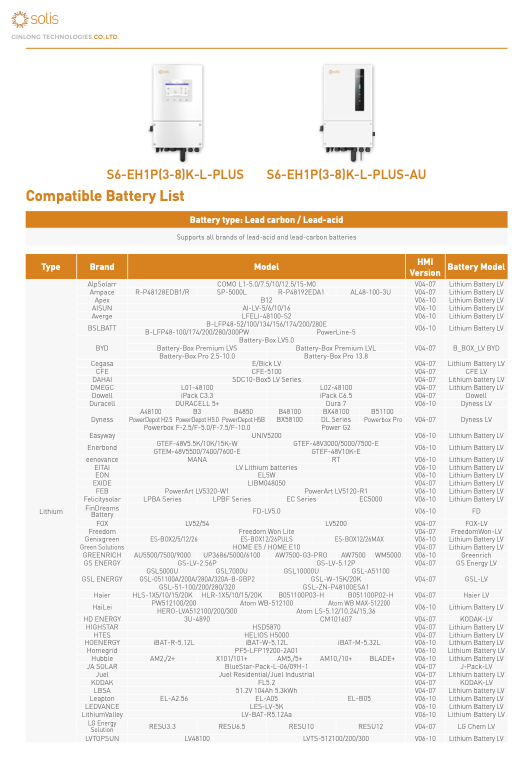

Solis Product Compatibility

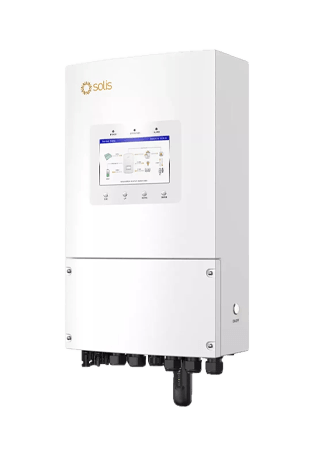

The Solis 8kW Single Phase Low Voltage Energy Storage Hybrid Inverter PLUS is designed for high-demand residential and commercial solar applications. With advanced energy management features, it delivers reliable backup power, peak shaving, and flexible connection options for lead-acid or lithium batteries. Ideal for modern grid-tied or off-grid systems, this inverter maximises self-consumption and protects your investment.
Built-in Backup Port with automatic UPS switching
Supports up to 190A max charge/discharge current
200% DC oversizing capability for flexible solar array configuration
Customisable charge/discharge times with 6 programmable settings
10-second 200% surge power backup for critical loads
Generator compatibility with automatic On/Off control
Flexible 1-phase or 3-phase parallel connection, supporting up to 48kW
AC coupling to upgrade existing grid-connected systems
Peak shaving control in both self-use and generator mode
Compatible with lead-acid and lithium batteries with multiple protection features
Supplier Part No: S6-EH1P8K-L-PLUS
Weight: 22.2 kg
Rated Power: 8,000 W
Max DC Power: 16,000 W
Max AC Power (5 min): 8,000 W
Surge AC Power (1 sec): 8,001 W
Max DC Current: 64 A
DC Inputs: 8, with MC4 connectors included
Min PPT Voltage: 90 V | Max PPT Voltage: 435 V
DC Startup/Shutdown Voltage: 90 V
Max Input Voltage: 500 V
MPPT Quantity: 8
Transformer: None
Euro Efficiency: 96.5%
Warranty: 5 years
This inverter does not include a DC cable for battery storage
A Solis 1-phase Meter ACR10R 16DTE with 120A CT is not compatible with the 8kW PLUS model
A Solis 1-phase Eastron meter is required for full functionality
