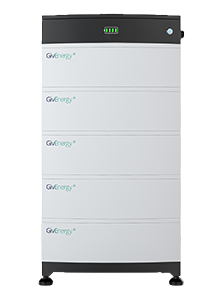

- 17.0kWh HV Li-Ion Battery Stack - Including BMU Cable and Base
#2: GIV-BAT-17.0-HV Storage Systems - Li-ion Battery Pack
GivEnergy 17.0kWh HV Li-ion Battery Stack Datasheet
GivEnergy 17.0kWh HV Li-ion Installation Manual
GivEnergy 17.0Wh HV Li-ion Battery Warranty
GivEnergy Battery Cable Compatibility Chart
This item includes:
5 x GIV-BAT-3.4-HV GivEnergy 3.4kWh High Voltage Li-Ion Battery
1 x GIV-BAT-HV-BMU High Voltage Battery BMU Cable and Base
Features:
Battery Type: Lithium iron phosphate (LFP)
Capacity: 17.0kWh
Nominal Voltage: 384 V DC
Operating Voltage Range: 200-600 V
Up to 5 stacks possible on an inverter
Warranty: 12 years
Specs:
Max Charge/Discharge Current: 25/25 A
Depth of Discharge (DoD): 100 %
Life cycles: Unlimited within the 12 year warranty
C Rating: 0.5C
No other accessories required other than the BMS
Communication: CAN BUS
Compatibility: Inverter connection for 1 & 3PH Hybrid (GIV Hybrid Inverter only)
