490W Longi | Hi-MO X10 Explorer HPBC | Half Cell Black Frame

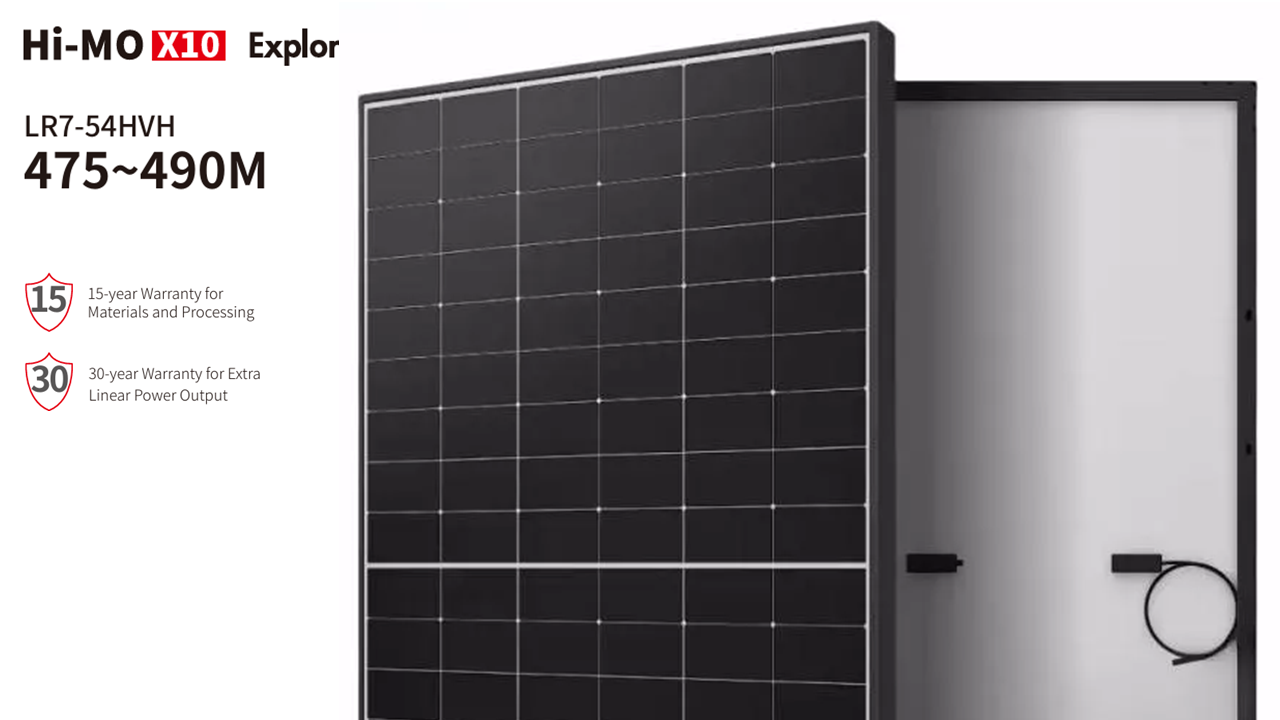

490W Longi Hi-MO X10 Explorer HPBC Half Cell Black Frame

#2: LR7-54HVH-490M

Longi 490W Data Sheet

Longi 490W Installation Manual

Longi Warranty

To view our full range of solar panels visit our main collection page here

Minimum order for this panel: 4 panel

This Longi LR7-54HTH series uses a 60 cell high efficiency hybrid passivated back contact cell creating a high performance module.

Features

• Up to 24.0% efficiency
• Maximum series voltage: DC1500V
• 40%W year 2-25 power degradation
• Power Tolerance: 0-3%
• Product: Warranty: 15 years
• Performance Warranty:  30 years

Specs

• Weight: 21.6 kg
• Rated Power: 490W
• Dimensions: 1,880 x 1,134 x 30mm
• VMPP: 33.51 V
• IMPP: 14.63 A
• Isc: 15.33 A
• Voc: 40.52 V
• Temp.Coefficient: -0.26%
• Clamp position on panel: Long and short side
• Connector Type: MC4
• Pallet: oversized
