GivEnergy 11kW 3ph Hybrid + 20.4kWh HV Battery Bundle £8,329 + VAT

GivEnergy 11kW 3ph Hybrid + 20.4kWh HV Battery Bundle

#3:  5480#5541

 GivEnergy 11kW 3ph Inverter Data Sheet

 GivEnergy 11kW 3ph Installer Guide

 GivEnergy 11kW 3ph Battery Data  Sheet

 GivEnergy Warranty

GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package.

The stackable battery is designed to work alongside the GivEnergy 3-Phase Hybrid Inverter. High voltage BMS allows for greater charge and discharge power running at a lower current, providing higher efficiency than our lesser voltage range.

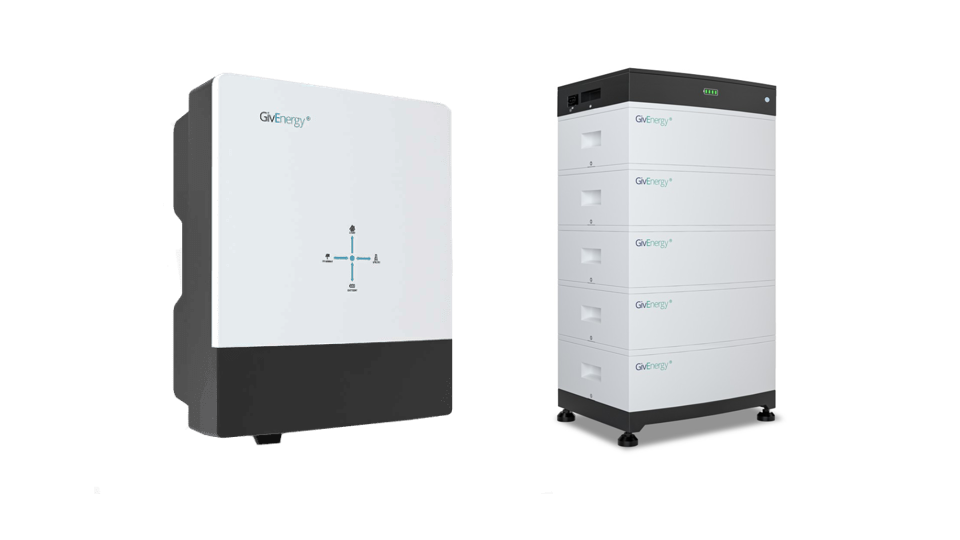

This Bundle Includes:

1 x GivEnergy Gen 3 11.0kW 3ph Hybrid Inverter
6 x GivEnergy 3.4kWh Stackable Battery
1 x Battery Management System (top and bottom)
1 x 630GEMCT Modbus Energy Meter 3ph

Specs

Dimensions: 658H x 214D x 480W (mm)
Weight: 35Kg
Charge / Discharge Efficiency: 97.6% / 96%
PV Max. Efficiency: 97.9%
MPPT Efficiency: 99.9%
Protection Class: IP65
Self-Consumption: <15W
Interface Communication
BMS: CAN
Meter: RS485
Portal: WiFi (USB)

Warranty: 12 years
