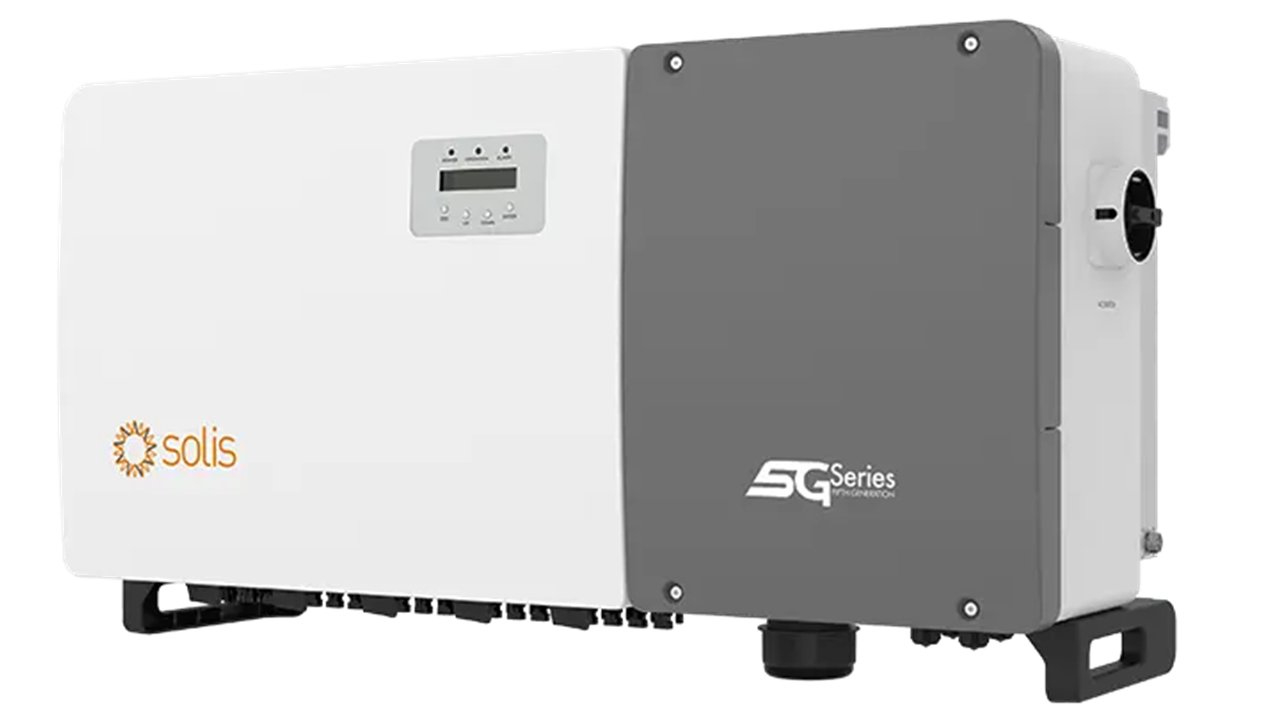

Solis 100kW S6 3 Phase 10x MPPT

Solis 100kW S6 3Phase 10x MPPT

#2 SOL-S6-GC100K  Inverters - Main Units

Solis S6 100kW Inverter Data Sheet

Solis S6 100kW Inverter Manual

Solis S6 100kW Inverter Warranty

Solis S6 100kW 3-Phase Inverter with 10× MPPT

The Solis S6 100kW three-phase inverter is designed for large commercial and industrial solar installations that demand maximum efficiency, high MPPT flexibility and long-term operational reliability. With ten independent MPPTs, advanced surge protection and smart monitoring, it delivers exceptional performance even in complex PV system layouts.

This model requires an EPM in the UK for export power management across the S6-GC(80–125)k range.

Key Features

High Power Output & Multi-MPPT Architecture

• Maximum PV DC input power: 150kW

• Equipped with 10 MPPTs, each featuring two 21A string inputs (20 total)

• Optimised for irregular or large-scale PV arrays

• Reduces mismatch losses and increases energy harvest

Smart Grid Compatibility & Protection

• Type-II surge protection on both AC and DC sides

• Integrated DC isolator for safe system shutdown

• Reverse-polarity protection for installation safety

• Fully compliant with NRS-097-2-1 grid standards

Wide Voltage Operation Range

• Ultra-low start-up voltage: 180V

• Maximum PV input voltage: 1100V

• MPPT operating range: 195V – 1000V

• Engineered for maximum yield in varying light conditions

Intelligent Monitoring & Remote Control

• Smart I-V Curve Diagnosis for rapid fault analysis

• Full remote monitoring via SolisCloud

• Supports remote firmware upgrades and system optimisation

Long-Term Efficiency & Warranty

• Euro efficiency: 98.3%

• Standard 5-year warranty, extendable up to 20 years

• Built for industrial reliability and long operational life

Technical Specifications

Electrical Performance

• Rated AC Power: 100,000W

• Max DC Power: 165,000W

• Max AC Power (5 minutes): 110,000W

• Surge AC Power (1 second): 121,000W

• Max DC Current: 320A

Input & Output Configuration

• Max Input Voltage: 1100V

• DC Start-up Voltage: 195V

• DC Shutdown Voltage: 180V

• MPPT Voltage Range: 195V – 1000V

• DC Inputs: 20

• MPPT Quantity: 10

• Connector Type: MC4

• Included Connectors: 40

Build & Warranty

• Weight: 90 kg

• Transformerless design for improved efficiency

• Integrated DC Switch: Yes

• Warranty: 5 Years (extendable to 20 years)
