Pylon US5000 4.8kWh Li-Ion Solar Battery 48V

Please view our battery storage information page for sizing and selecting the right battery storage system for you.

#4: US5000 / PYLON-US5000-1C
#16 PYLON-US5000
#17: Pylon 4.8kWh US5000 Li-ion Battery

US5000 Datasheet

US5000 Installation Manual

US5000 Warranty

US5000 Compatibility Sheet

Connecting cables included as standard

To view complete kits please visit our Pylontech main page

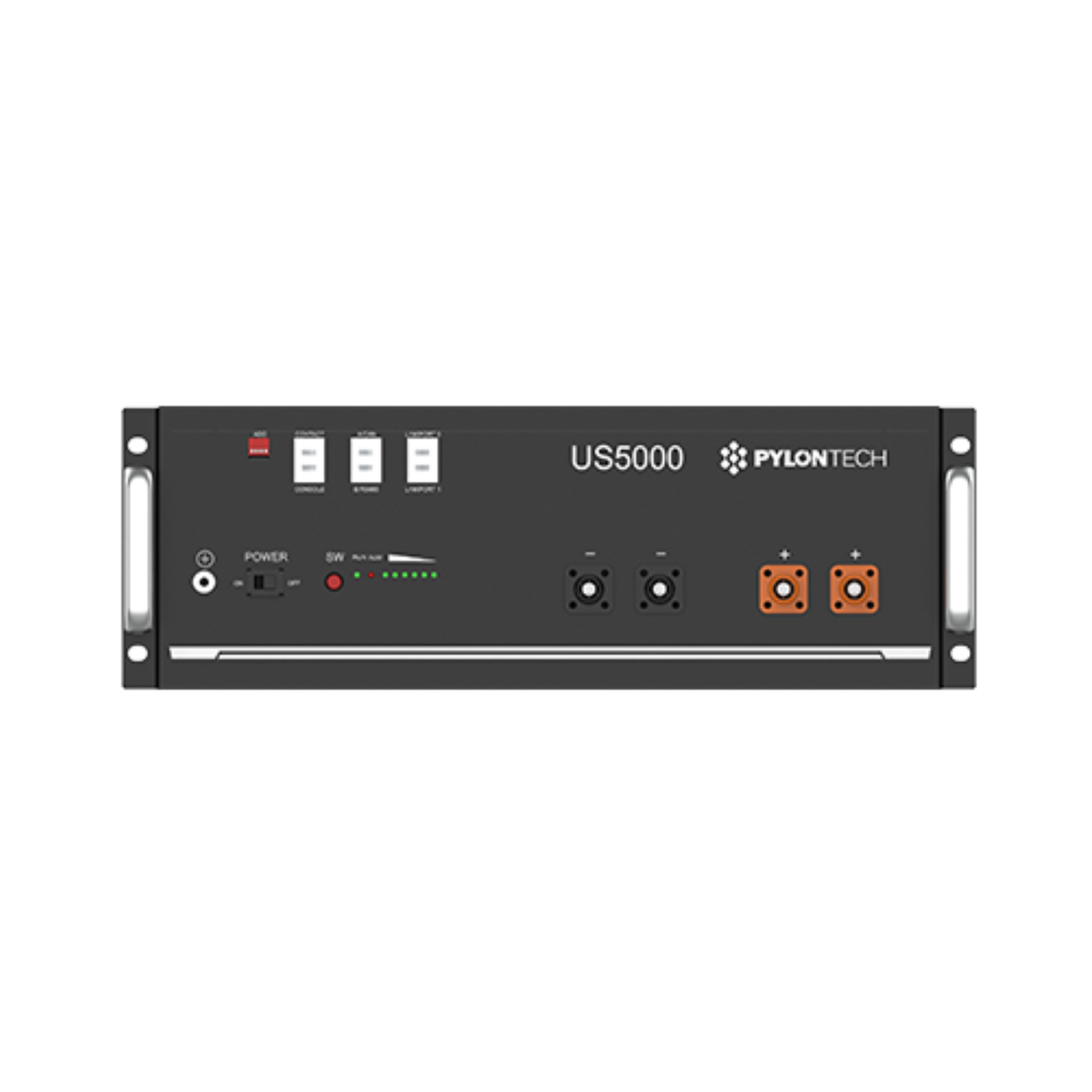

A new battery in the US series from Pylontech. The US5000 is a 48V battery with incredible features to provide a competitive edge in the market.

Product Features

• Modular design for ease of expansion
• Higher usable capacity resulting in less battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible
• Comes with a 5-year warranty extendable
• Long cycle life and superior performance
• Compatible with tier 1 inverter brands

To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support

Supplier Part No: US5000

Weight: 38 kg

Battery Type: Lithium Ion

Nominal Energy: 4800 Wh

Depth of discharge: 95.00 %

Voltage: 48 V

Continuous Discharge Rate (Normal Use): 2400 W

Maximum Discharge Rate (5 Minutes): 4800 W

Surge Discharge Rate (15 Seconds): 5808 W

Maximum Charge Rate (5 Minutes): 4800 W

* In accordance with Pylontech's warranty conditions. The warranty is only valid if the batteries have been installed by an electrician or authorised installer.
