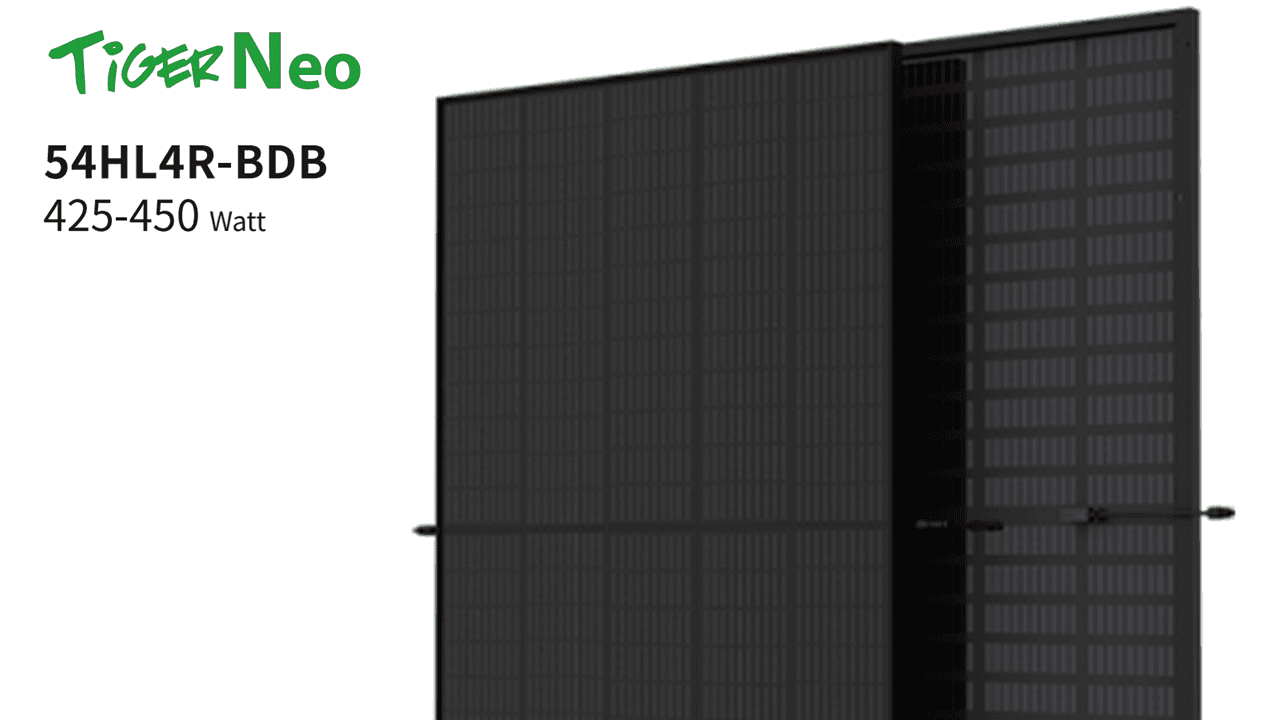

440W Jinko Tiger Neo 54 Dual Glass, Bi-Facial All Black

440W Jinko Tiger Neo 54 Dual Glass, Bi-Facial All Black Panel

#3:  6784

440W Jinko Tiger Data Sheet

 440W Jinko Declaration of Conformity

Please check minimum order quantity prior to ordering as this varies depending on the specific panel.

Minimum order for this panel: 1 panel

Tiger Neo N-type 54 Bifacial Dual Glass All Black

Features:

• Rating: 440W
• Efficiency: 22%
• Width: 1,134mm
• Height: 1,762mm
• Black silicon, busbar, & dark cells for enhanced visual appeal

• 2.0mm thick glass for superior mechanical performance, fire & hail resistance

• Boasts up to 445W output, 5W increase over prior generation
• Extended 25 year warranty for reliability
• 30 year extended warranty
• Versatile applications and numerous benefits


Specs:

• Weight: 25.4 kg
• Rated Power: 440 W
• Length: 1,762 mm
• Width: 1,134 mm
• Depth: 30 mm
• VMPP: 33.44 V
• IMPP: 13.16 A
• Isc: 13.98 A
• Voc: 39.16 V
• Temp. Coefficient (Mpp): -0.29 %
• Clamp position on panel: Long and short side
• Connector Type: MC4
• Efficiency: 22 %
• Pallet Size: Oversized
