Solis 3.6kW Hybrid Energy Storage Inverter with DC switch for solar battery storage
#1: SOL-3.6K-RHI-48ES-5G-DC Storage Systems - Hybrid Inverter
#3 : S5-EH1P3.6K-L

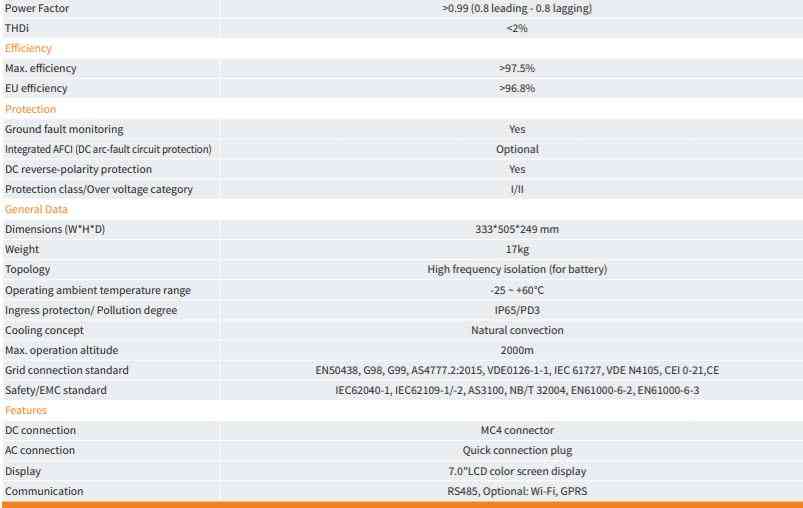

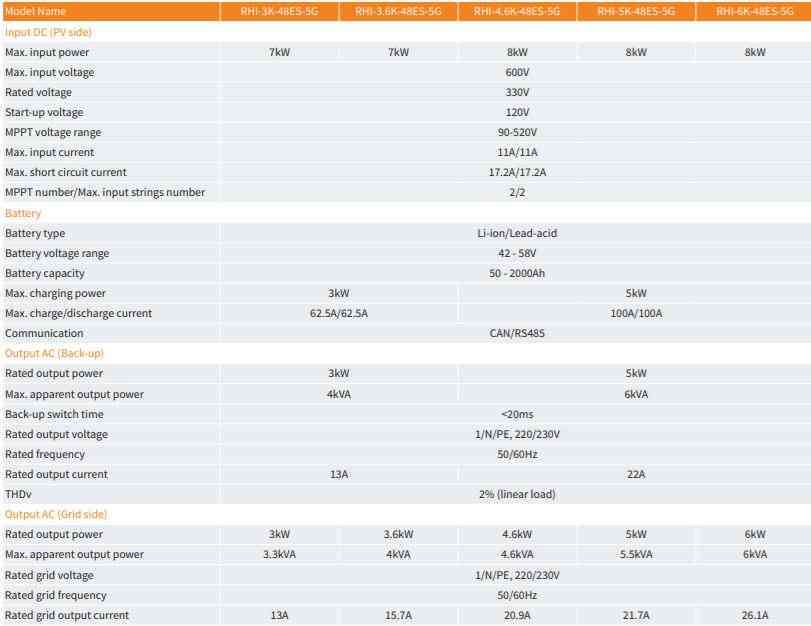

Solis 3.6kw Hybrid Inverter Data Sheet
Solis 3.6kW Hybrid Inverter Manual
Solis 3.6kW Hybrid Inverter Warranty
Solis 3.6kW Hybrid Inverter G99 Certification
*Collections are not permitted due to health & safety regulations*
For additional 5 year warranty, please click here.
Please note This product is supplied with a 3ph energy meter and CT clamp which can also be used on 1ph.
Solis new 5G Hybrid inverter range that supprt power for important loads during load shedding as well as saving power during peak demands. Making this the ideal solution you always wanted.

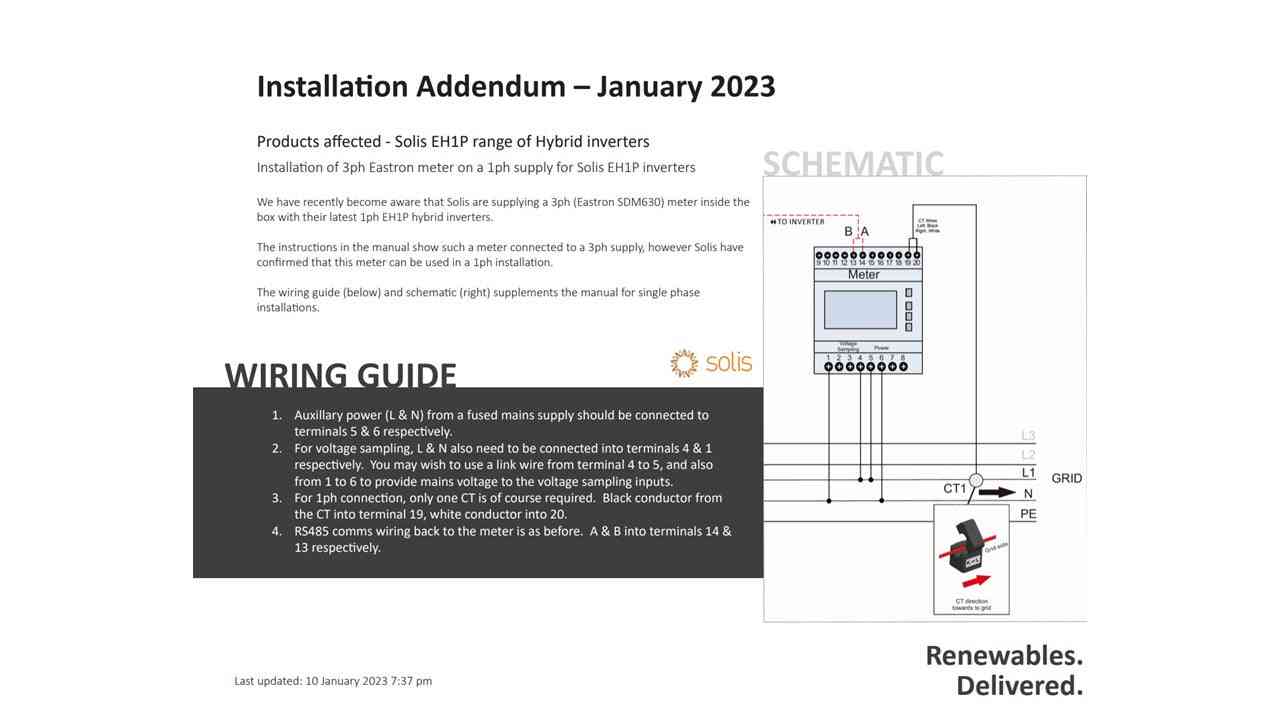

We have recently become informed that Solis are supplying a 3ph (Eastron SDM630) meter inside the box with their latest 1ph EH1P hybrid inverters. The instructions in the manual show such a meter connected to a 3ph supply, however Solis have confirmed that this meter can be used in a 1ph installation.
Product Features
-
Fanless design IP65
-
High charge and discharge efficiency
-
Multiple work modes resulting in max self-consumption
-
Intellegent BMS function
-
24 hour real-time intelligent energy management
-
Remotely control & upgrade
Supplier Part No: S5-EH1P3.6K-L
Weight: 20.5 kg
Rated Power: 3,600 W
Min PPT Voltage: 90 V
Max PPT Voltage: 520 V
DC Startup Voltage: 120 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 600 V
Max DC Power: 5,700 W
Max AC Power (5 Minutes): 3,601 W
Surge AC Power (1 Second): 4,000 W
Max DC Current: 30 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 2
Euro Efficiency: 96.8 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
