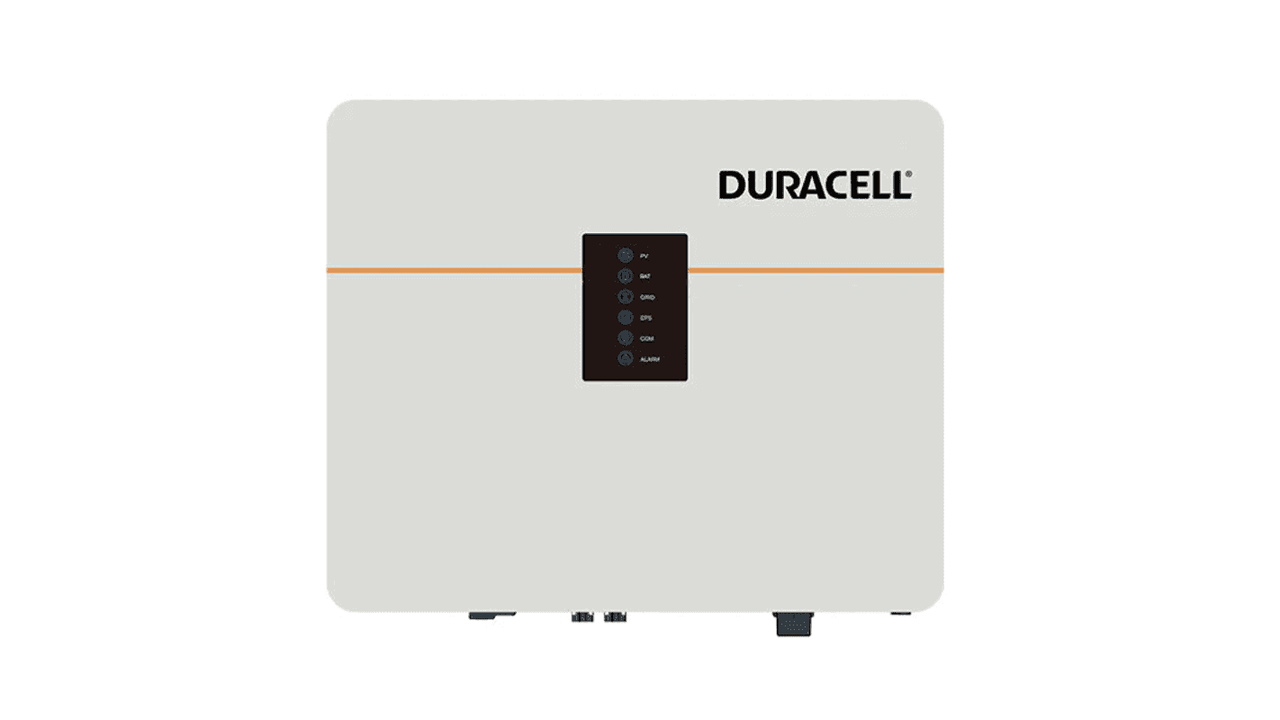

Duracell Energy Dura-i 4.6kW Hybrid Inverter

Duracell Energy Dura-i 4.6kW Hybrid Inverter PD-DH1P-4.6-G1

#5: DURACELL-PD-DH1P-4.6-G1

Duracell Inverter Data Sheet

Duracell Inverter Manual

Duracell Energy Dura-i 4.6kW Hybrid Inverter – PD-DH1P-4.6-G1

Boost your solar energy potential with the Duracell Energy Dura-i 4.6kW Hybrid Inverter, engineered for reliability, efficiency, and smart energy management. Ideal for residential or small commercial solar systems, this hybrid inverter is designed for seamless integration with solar panels, AC mains, and energy storage solutions.

Key Features

• Hybrid & AC Compatible – Works efficiently with both solar panels and AC mains.

• High Efficiency – Up to 97.3% PV-to-AC efficiency.

• Integrated Energy Meter – Track energy production and consumption in real time.

• Modular Design – Up to 6 inverters can be connected in parallel for scalable energy solutions.

• Battery Ready – Fully compatible with Dura5 Battery for energy storage and backup.

• Warranty Options – Standard 5-year warranty, extendable to 10 years.

Technical Specifications

• Rated Power: 4,600 VA AC output

• Weight: 25 kg

• Max Efficiency: 97.3% (PV→AC), 94.3% (BAT→AC)

• Max PV Power: 9,000 W

• Max PV Voltage: 550 V

• Max Charge/Discharge Current: 120 A

• Max Charge/Discharge Power: 5,000 W

• MPPT: 2 (1 string per MPPT)

• Output Current: 22 A

• Rated Voltage: 230 V

• Nominal Capacity: 100

• Installation: Wall mount

• Operating Temperature: -25 °C to +60 °C

• Display: LED

• Communication Ports: CAN / RS485

• Dimensions: 585 × 485 × 175 mm
