Fox EQ HV EQ4800-L2, 9.32kWh 1x Master 1x Slave
#2: FE-HV-EQ-2-4.8-9.6 Storage Systems - Li-ion Battery Pack
Fox EQ4800-Datasheet
Fox EQ4800 Manual
Fox Product Compatibility
Fox EQ4800 Warranty

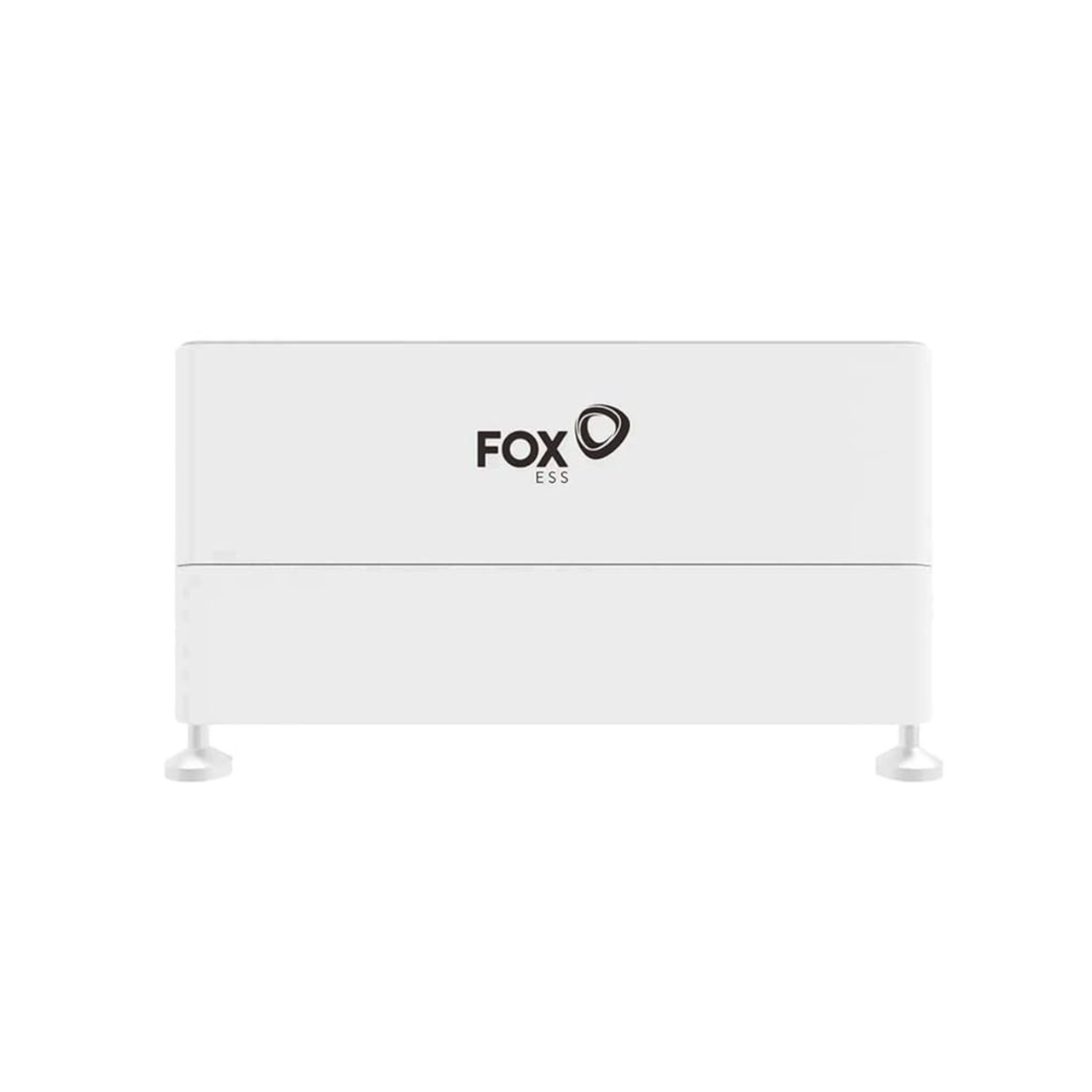

Fox EQ4800 High-Performance Scalable Battery Storage System
The Fox EQ4800 is a high-performance, scalable battery storage system designed for both residential and commercial energy applications. Its modular design allows for flexible system expansion, making it ideal for a broad range of storage needs. Additional modules can be added to achieve a maximum storage capacity of 41.94 kWh.
Warranty Reminder: To activate the full 12-year product warranty, you must register your installation with Fox online. Otherwise, the standard warranty is 5 years.
Fox EQ4800 4.66kWh Stack of 2 – 9.32kWh Useable Storage
This kit includes:
Compatibility: EQ4800 modules are compatible with ECS-4800 batteries.
Key Features
-
Plug-and-Play Installation: Quick and easy setup
-
Battery Capacity: 4.66 kWh per module
-
Scalable Design: Expandable up to 41.94 kWh
-
Depth of Discharge: 90% for maximum usable energy
-
Wide Temperature Tolerance: Reliable performance in diverse environments
-
Advanced Communication: CAN/RS485 connectivity for smart energy systems
-
High Voltage Operation: Supports faster charging and discharging
Technical Specifications
-
Weight: 83.5 kg
-
Rated Power: 4,800 W
-
Battery Type: Lithium-Ion (LiFePO4)
-
Nominal Energy: 9,320 Wh
-
Depth of Discharge: 90%
-
Voltage: 89 V
-
Continuous Discharge Rate (Normal Use): 2,240 W
-
Maximum Discharge Rate (5 Minutes): 4,480 W
-
Surge Discharge Rate (15 Seconds): 5,785 W
-
Maximum Charge Rate (5 Minutes): 4,480 W
-
Dimensions (W x H x D): 570 x 386 x 380 mm
Installation Notes
-
Minimum Modules Required: 2 (1 Master + 1 Slave)
-
Maximum Stack: Up to 9 modules (1 Master + 8 Slaves)
-
Compatibility: Ensure new battery modules match existing Energy Cube stacks
-
Professional Installation: Must be installed by a qualified electrician
✅ The Fox EQ4800 is a modular, high-performance energy storage solution, perfect for homeowners and businesses seeking reliable, scalable solar storage in the UK.
Please note: In order to increase the product warranty from 5 to 12 years you must register your install with Fox online to activate the 12 year warranty, otherwise it's 5 years as standard. Please click here for registration page. You can review the warranty document for more information.
