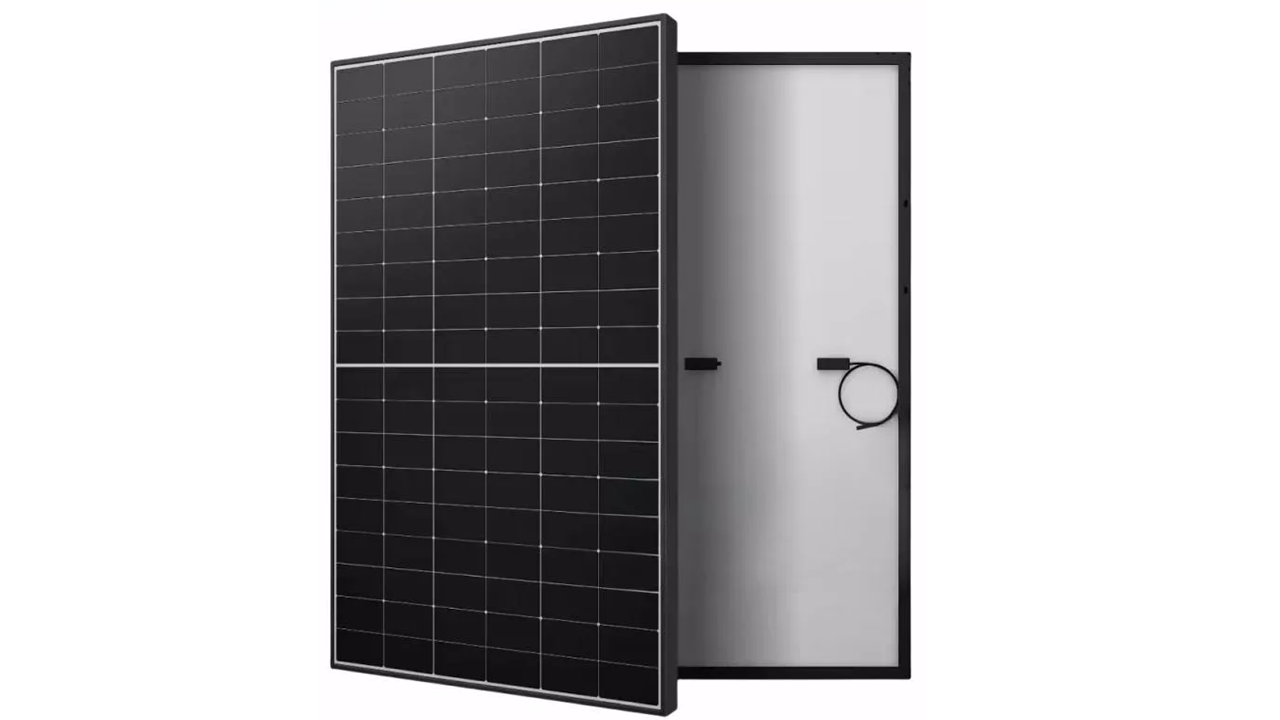

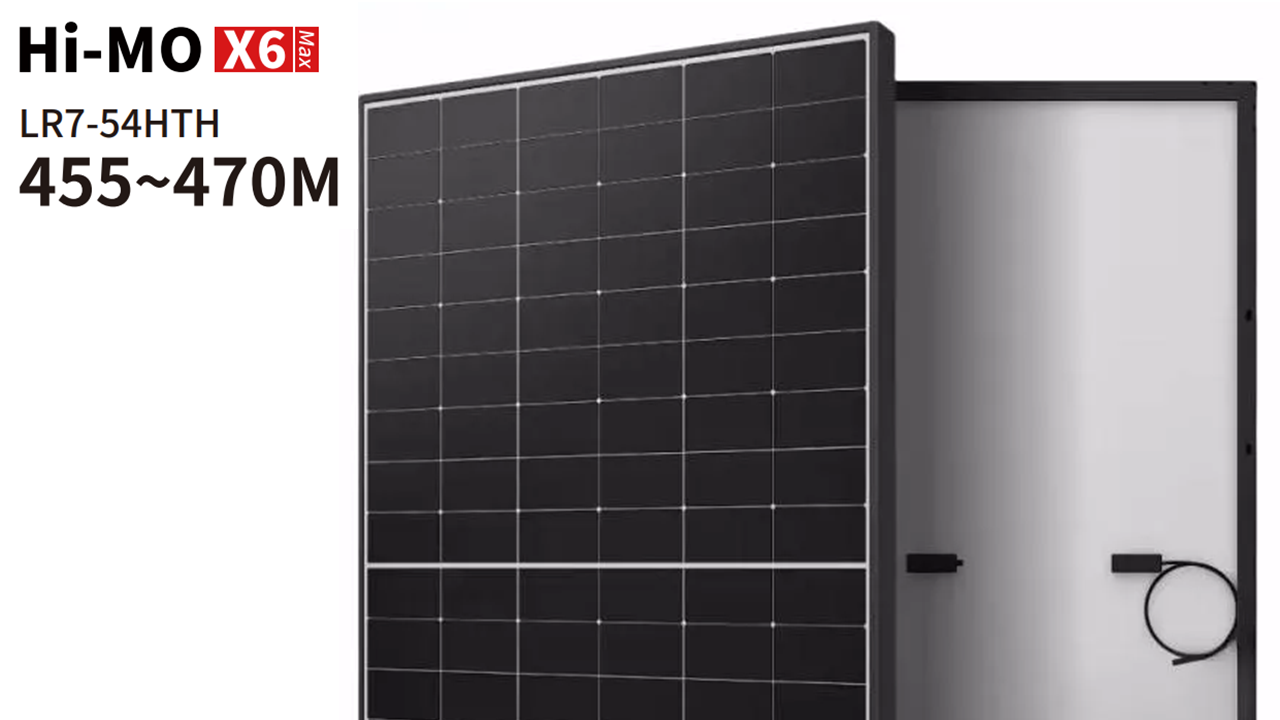

460W Longi | Hi-MO X6 Max Explorer HPBC | Half Cell Black Frame

460W Longi Hi-MO X6 Max Explorer HPBC Half Cell Black Frame SDM1

#2: LR7-54HTH-460M-SDM1

Longi 460W Data Sheet

Longi 460W Installation Manual

Longi Warranty

Longi MCS Certification

Please check minimum order quantity prior to ordering.

Minimum order for this panel: 4 panels

For orders with no minimum please visit our Single Panels page.

The Longi Hi-MO X6 Max series uses a high efficiency hybrid passivated back contact cell creating a high performance module, creating a full black module well suited for residential needs.

Longi was the winner of the 2021 Intersolar Award and RETC high achiever award 4 years in a row. The revolutionary Hybrid Passivated Back Contact (HPBC) Technology, high micro-crack resistance for improved reliability, Improved low light performance and a busbar-free modern design as well as a high temperature restriction for improved fire safety make this a very attractive panel.

Additional Features

• Up to 23% efficiency
• Maximum series voltage: DC1500V
• 40%W year 2-25 power degradation
• Power Tolerance: 0-3%
• Product: Warranty: 25 years
• Performance Warranty:  25 years

Specs

• Weight: 21.6kg
• Rated Power: 460W
• Length: 1,800mm
• Width: 1,134mm
• Depth: 30mm
• VMPP: 33.19 V
• IMPP: 13.86 A
• Isc: 14.86 A
• Voc:  39.35 V
• Temp Co-efficient (Mpp): -0.28%
• Connector: MC4
