K&N Single String DC Switch Disconnector 21A 800V - 20A 1000V

£48.00 + VAT

Product description

K&N Single String DC Switch Disconnector 21A 800V - 20A 1000V

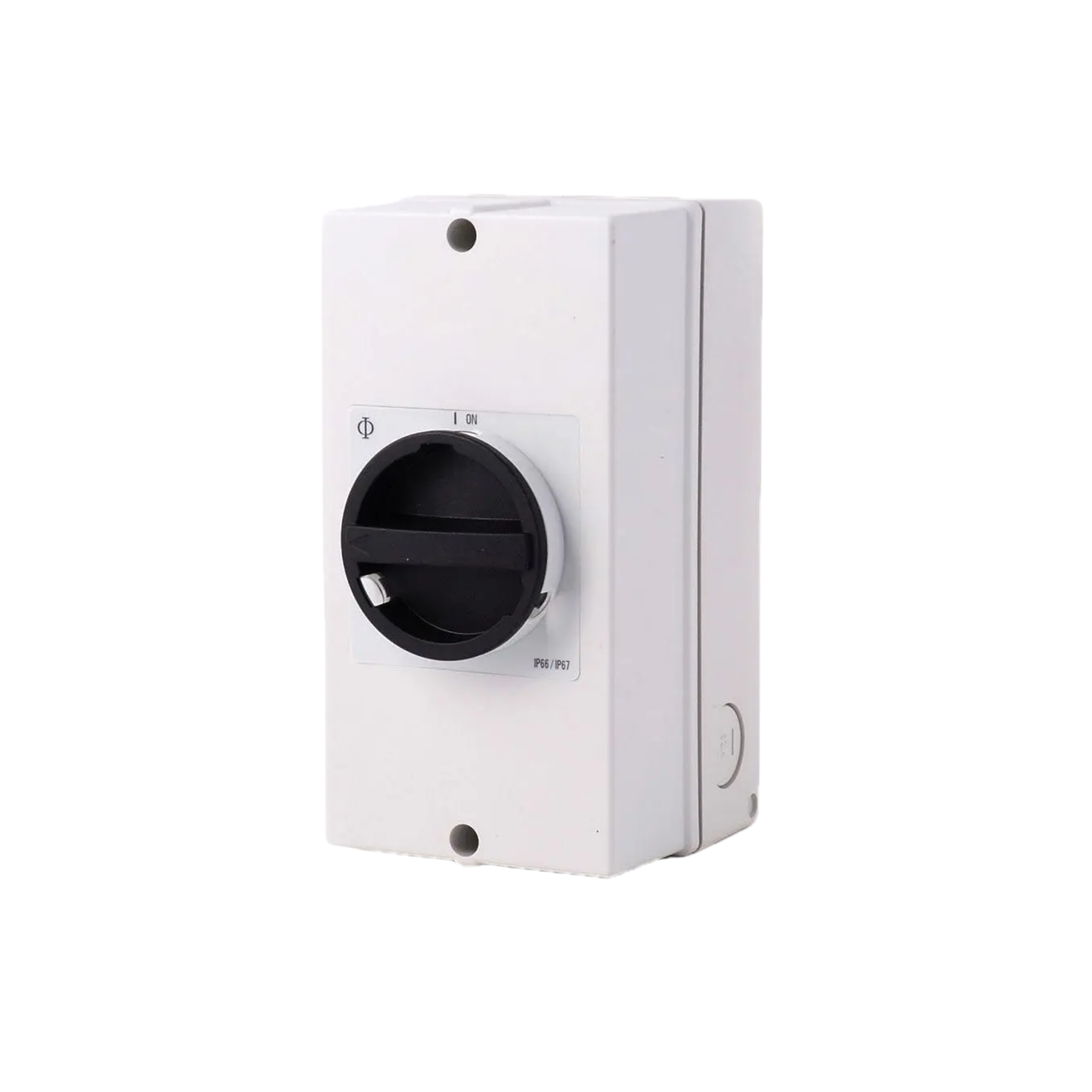

Kraus & Naimer KG20B-T106D – DC Switch Disconnector (AC Isolator)

The Kraus & Naimer KG20B-T106D DC Switch is a high-quality isolator designed for reliable and safe disconnection of DC circuits. Built with 2 poles for single string systems, this isolator ensures compliance with safety regulations while providing durability in harsh environments.

Its IP66/67-rated enclosure guarantees protection against dust and water, making it ideal for solar PV systems and industrial applications.

🔧 Key Features

2-pole disconnection for single string safety
IP66/67 rated – weatherproof and dust-tight
Lockable handle in the OFF position for extra safety
Class II compliant with insulated grey enclosure
Interlocked switch prevents lid opening while in the ON position
Trusted Kraus & Naimer quality for long-lasting performance

📦 Technical Specifications

Specification	Details
Model	KG20B-T106D
Type	DC Switch Disconnector / AC Isolator
Weight	0.68 kg
Poles	2
Max Cable Size	6 mm²
Max Voltage	1,000 V
Rated Current	20–21 A
Rated Power	9,600 W
Enclosure Protection	IP66/67
Handle	Black/Grey, padlockable
Dimensions	100mm (W) x 190mm (H) x 93mm (D)
