Solax Home Battery Storage - High Voltage & IP65

EcoFlow Ext CT Single‑Phase Meter 120A PowerOcean, PowerGlow  EcoFlow 1ph meter Installation Manual Add real‑time energy monitoring and intelligent control to your solar or inverter system with the EcoFlow External CT Meter (120 A). This smart meter enables import/export tracking, enables “zero feed‑in” control, and integrates seamlessly with EcoFlow inverters and the OASIS platform. Features Adds real‑time energy monitoring Intelligent control of solar or inverter system  Enables import/export tracking Enables “zero feed‑in” control Integrates seamlessly with EcoFlow inverters and the OASIS platform. Compatibility & Applicable Products This external CT meter is specifically compatible with the following EcoFlow products: PowerOcean (3‑phase) PowerOcean Plus (3‑phase) PowerOcean DC Fit PowerGlow It is especially suited for single‑phase setups needing external CT monitoring. When Is an Additional Flow (Smart) Meter Needed? If you already have a third‑party string inverter installed and wish to integrate energy tracking or zero feed‑in functionality When the built‑in meter of your inverter is insufficient or incompatible with EcoFlow’s monitoring/AI logic If your system requires external CT sensing (rather than built‑in) to monitor high current (120 A) circuits Specifications Model: ADL200N Rated Voltage: 230V AC CT Type: External split / clamp CT (D16 form) Communication: RS485

Fully Installed SolaX Integrated All-in-One Residential ESS (3.7kW, 6kW & 8kW Options) To view our full range of installed battery storage packages visit our collection page here To request a bespoke quote please complete our quotes form Nationwide Solar & Battery Installations Across the UK We provide professional solar and battery storage installations nationwide across most areas of the UK. Every system is fully certified and installed by qualified engineers, giving you peace of mind and long-term reliability. #5: INSTALLED-SolaX Storage Systems - Hybrid Inverter   SolaX X1-IES 1ph Datasheet This integrated All-in-One residential ESS (Energy Storage System) combines a hybrid single-phase inverter (3.7kW, 6kW, or 8kW) with extensible battery modules offering capacities from 5kWh up to 30kWh. Designed for UK homes, it delivers high efficiency, safety, and flexibility with advanced smart energy management features such as Virtual Power Plant (VPP) support, micro-grid compatibility, and intelligent scheduling. Flexible Adaptability All-in-one, plug-and-play design for easy installation Supports up to 20A DC input current for modern high-power solar panels Modular battery capacity – expand storage as your energy needs grow High Performance 50A max charge/discharge current for efficient energy use 200% oversizing and 200% PV input power capability 200% EPS output for 10 seconds to handle surge loads Low start-up voltage for extended daily operation Long lifespan with 6,000+ charge cycles Smart Energy Management Intelligent load control for devices such as heat pumps and smart EV chargers Micro-grid support ensures stable real-time grid/off-grid balancing Wireless meter compatibility for simplified system monitoring Global MPP scan technology for optimal solar energy harvest Assured Reliability IP66 protection for robust outdoor and indoor use Type II SPD protection on both AC & DC sides Optional AFCI protection for enhanced safety UPS-level switchover time <10ms for uninterrupted backup power Why Choose This All-in-One ESS? Complete home energy storage solution in a single system Scalable design with flexible battery capacity (5–30kWh) Advanced smart scheduling and load management Provides reliable backup power with fast switchover Fully compliant with UK safety and efficiency standards

SolaX V2 Triple Power HV 5.8kWh LFP Main Battery MASTER #2: HV-T-BAT-H-58-MASTER-V2 Storage Systems - Lion Battery Pack#3: 3211#4034 V2 batteries confirmed to be compatible with V1 slave batteries SolaX 5.8kWh Data Sheet SolaX 5.8kWh Manual SolaX 5.8kWh Warranty Solax Triple Power LFP Master Battery (T-BAT-H-58) – 5.8kWh The SolaX Triple Power LFP Battery is the ideal energy storage partner for the X1-Hybrid, X3-Hybrid, and X1-AC inverter ranges. Available as a 5.8kWh Master and 5.8kWh Slave, this modular system allows flexible scaling up to 23.2kWh. With high voltage architecture for thinner cabling, 90% depth of discharge, and 6,000 life cycles, the Triple Power battery is a reliable long-term storage solution. Key Features 5.8kWh capacity per module Scalable to 23.2kWh (Master + up to 3 Slaves, charger dependent) Up to 4kW charge/discharge rate 90% depth of discharge for optimal usage 6000 life cycles – long-lasting durability Compact, plug-and-play design – all cables supplied High-voltage design reduces cabling costs Arrives with Blue TOP (moving to Black TOP in future) Installation Notes Single-phase systems: 1x Master + max. 2 Slaves (3 batteries total) Three-phase systems: 1x Master + 2–3 Slaves (4 batteries total) Compatibility: Triple Power LFP 5.8kWh Slaves can only be paired with LFP 5.8kWh Masters. ⚠️ Not compatible with Generation 1 or 2 BMS or batteries. Technical Specifications Weight: 72.2 kg Battery Type: Lithium-Ion (LFP) Nominal Energy: 5,800 Wh Depth of Discharge: 90% Voltage: 115 V Continuous Discharge Rate (Normal Use): 2,875 W Maximum Discharge Rate (5 minutes): 4,000 W Surge Discharge Rate (15 seconds): 4,000 W Maximum Charge Rate (5 minutes): 4,000 W ✅ A future-proof, scalable battery solution, perfect for homes and businesses looking to expand storage capacity with their SolaX hybrid inverters.

SolaX V2 Triple Power HV 5.8kWh LFP Extension Battery SLAVE #3: HV11550-58-SLAVE-V2 Storage Systems - Lion Battery Pack SolaX V2 Datasheet SolaX V2 Installation Manual SolaX V2 Warranty    V2 batteries are compatible with V1 slave batteries SolaX Triple Power LFP Extension Battery (Slave) – HV11550-58 The SolaX Triple Power LFP 5.8kWh Slave Battery is designed to expand the storage capacity of your SolaX Master Battery system. Perfectly matched with the X1-Hybrid, X3-Hybrid, and X1-AC inverters, this high-performance lithium battery offers scalable energy storage up to 23.2kWh. ⚠️ Important: This is an extension (slave) battery only. It must be connected to a Triple Power 5.8kWh Master Battery (HV-T-BAT-H-58) and is not compatible with Generation 1 or 2 SolaX BMS or batteries. Key Features 🔋 5.8kWh lithium battery (Slave) – designed to work only with the Master battery 📈 Scalable to 23.2kWh – install up to 3 slaves with 1 Master (system dependent) ⚡ Up to 4kW charge/discharge rate ✅ High-voltage system – reduced cabling requirements 🛠️ Plug & play installation – supplied with cables for easy setup 🔄 90% depth of discharge – maximises usable storage 🔋 6,000+ life cycles – built for long-term reliability 🔒 Compact, modern design (Blue Top initially, moving to Black Top in newer versions) Compatibility Rules Single-phase system: 1 Master + up to 2 Slave batteries (max. 3 batteries total) Three-phase system: 1 Master + 2–3 Slave batteries (max. 4 batteries total) Only compatible with Triple Power 5.8kWh Master Battery   Technical Specifications Battery Type: Lithium Iron Phosphate (LiFePO4) Nominal Energy: 5.8kWh (5800Wh) Depth of Discharge (DoD): 90% Voltage: 115 V Continuous Discharge Rate: 2875 W Maximum Discharge Rate (5 Minutes): 4000 W Surge Discharge Rate (15 Seconds): 4000 W Maximum Charge Rate (5 Minutes): 4000 W Weight: 72.2 kg Why Choose the SolaX Triple Power LFP Slave Battery? The SolaX Triple Power Slave Battery is the ideal expansion module for growing households and businesses that want to increase storage capacity without replacing their entire battery system. With its scalable design, long lifespan, and efficient high-voltage performance, it’s a future-proof solution for clean, reliable energy storage.

SolaX X1 Fit AC Coupled Battery charger Inverter HV 5.0kW #2: X1-FIT-G4-5.0 Storage Systems - Charger-Inverter #3: 4614 Sola X1 RetroFit Inverter Data Sheet Solax X1 RetroFit Inverter User Manual Solax X1 RetroFit Inverter Warranty Solax X1 RetroFit G99 Certification Energy meter is required for SolaX charger to work WiFi stick is required for SolaX CloudFor a full list of SolaX products click here. SolaX X1 RetroFit AC Charger – Upgrade Your PV System Upgrade your existing solar PV system effortlessly with the SolaX X1 RetroFit AC Coupled Inverter Charger. Designed for single-phase inverters of any brand, this retrofit solution delivers high efficiency, flexibility, and reliable performance. Ideal for residential or commercial installations. Key Features High Efficiency – Up to 97% maximum efficiency for optimal energy usage Flexible Battery Support – Supports high-voltage batteries for reduced cable thickness Wide Compatibility – Works with any single-phase inverter brand Remote Monitoring – Monitor performance via SolaX XCloud Quiet & Low Maintenance – Natural cooling design for silent operation Technical Benefits Max Charge/Discharge – 6 kW Installation – Indoor or outdoor rated Smart Grid Ready – Supports grid trading with <0.5s response time Flexible Charging – Grid charging possible Connectivity – WiFi or LAN stick available separately Battery Requirements Minimum of 1 Solax battery per X1 AC inverter Maximum of 3 batteries, all must be same capacity (cannot mix 4.5kWh and 6.3kWh batteries) Compliance UK tested and certified under G98/G99 standards Requires latest firmware and hardware version for compliance The SolaX X1 RetroFit AC Charger is the perfect solution to extend the life and capabilities of your PV system while providing smart, high-efficiency energy management.

SolaX 5kW G4-V2 Hybrid Inverter with Wi-Fi #2: X1-HYBRID-G4-5.0-V2 SolaX 5.0kW Data Sheet SolaX 5.0kW Manual SolaX 5.0kW Warranty SolaX 3.7kW G99 Certificate For a full list of SolaX products click here. SolaX X1-Hybrid G4 Single Phase Hybrid Inverter & Charge Controller Overview The SolaX X1-Hybrid G4 is a fourth-generation single-phase hybrid inverter and AC charge controller, designed to deliver high-efficiency energy conversion and fast battery charging for residential PV systems. This model builds on the success of the previous generation while adding enhanced features for reliability, oversizing, and speed. Key Features Supports up to 150% PV oversizing for maximum energy production High reliability: HALT-tested, extreme temperature (-30°C to +60°C), salt spray tested, full load aging tested Fast installation: Quick setup in approximately 30 minutes Rapid charging: Can nearly fully charge a Triple Power battery in just one hour Element protection: Operates efficiently in extremely cold conditions down to -30°C Wi-Fi included: Remote monitoring and control without additional equipment Specifications Weight: 24 kg Rated Power: 5,000 W Min MPPT Voltage: 125 V Max MPPT Voltage: 550 V DC Startup Voltage: 125 V DC Shutdown Voltage: 125 V Max Input Voltage: 600 V Max DC Power: 7,500 W Max AC Power (5 Minutes): 5,001 W Surge AC Power (1 Second): 5,002 W Max DC Current: 28 A Max DC Inputs: 2 DC Fuses: None Connector Type: SUNCLIX Included Connectors: 2 Euro Efficiency: 97% Transformer: None MPPT Quantity: 2 Integrated DC Switch: No Warranty: 5 years This inverter is ideal for residential PV systems seeking fast charging, reliable operation in harsh environments, and maximized solar self-consumption.

SolaX X1 G4 Hybrid Inverter 6kW #1: X1-Hybrid-6.0-D #3: 4442 Solax X1 G4 Data Sheet Solax X1 G4 User Manual Solax X1 G4 Warranty Solax X1 G4 G99   SolaX X1 G4 Hybrid 6.0D – 4th Generation Hybrid Solar Inverter The SolaX X1 G4 Hybrid 6.0D represents the latest 4th generation of SolaX hybrid inverters, offering improved performance, enhanced reliability, and flexible energy storage options. Perfect for UK households and small commercial properties, this hybrid inverter allows you to store surplus solar energy in batteries for later use while retaining all the core features of previous generations. Key Features Intelligent Hybrid Functionality Stores excess solar energy in batteries for on-demand use. Functions as both an inverter and battery storage controller – ideal for retrofits or new installations. Supports up to 150% PV oversizing, ensuring maximum energy harvest. Built-in Safety & Reliability EPS (Emergency Power Supply) changeover switch included for backup during outages. Operates at full capacity in extreme temperatures down to -35°C. IP65-rated for outdoor installations, protecting against dust and water ingress. High Performance & Efficiency 30A charge/discharge capability for fast battery management. On-grid and off-grid operation for flexible system design. Max efficiency of 97.6%, ensuring optimal energy conversion. Connectivity & Monitoring Includes WiFi dongle for real-time system monitoring and remote management. Technical Specifications AC Attributes Max Power: 6,000 W Max Current: 28.6 A Number of Phases: 1 DC Attributes Max Power: 9,000 W Max Isc Current: 16 A Max Voltage: 600 V Start-up Voltage: 90 V System & Physical Max Efficiency: 97.6% IP Rating: IP65 Weight: 22 kg Dimensions: 482 × 417 × 181 mm

SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 10kW #2: X3-FIT-10#3: 4749 Solax X3 Inverter Data Sheet Solax X3 Inverter User Manual Solax X3 Inverter Warranty Solax X3 Inverter G99 Certification Modbus Energy meter is required for SolaX charger to work WiFi stick is required for SolaX CloudFor a full list of SolaX products click here.   Three-Phase Retro Fit 10.0kW AC Coupled Inverter Product Features Compatible with high-voltage batteries IP65 protection rating Natural cooling for low maintenance Maximum efficiency up to 96% EPS Functionality This is the W version of the inverter with a built-in EPS function. An external backup box is required to fully utilise the EPS capability. Battery Compatibility Supports 2 to 4 Solax Triple Power Batteries (all batteries must be the same size per system). Scalability This inverter can be paralleled up to 5 units per site, offering flexible expansion for larger installations.

SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 8kW #2: X3-FIT-8#3: 4748 Solax X3 8kW Inverter Data Sheet Solax X3 8kW Inverter User Manual Solax X3 8kW Inverter Warranty Solax X3 Inverter G99 Certification SolaX X3-FIT Series 3-Phase AC Coupled Hybrid Inverter Product Overview The SolaX X3-FIT Series is a fourth-generation, 3-phase AC coupled hybrid inverter designed for maximum solar energy utilisation. This retro-fit inverter directs excess solar energy into your battery for later use and can act as a backup power supply during grid outages, sending stored energy back to your home. Key Features Virtual Power Plant (VPP) Function Supports VPP integration for smart energy management Emergency Power Supply (EPS) Switchover time <10ms Provides up to 150% output for 60 seconds during power loss Flexible Energy Management Max. 110% nominal apparent AC power Flexible peak shaving for optimised energy use Optional three-phase unbalanced output Connectivity Compatible with WiFi V2.0 for SolaX Cloud monitoring WiFi stick required for remote monitoring Installation Notes For G100 applications, a software update is recommended Recommended use with SolaX CHINT three-phase CT energy meter Collections are not permitted due to health & safety regulations Technical Specifications AC Attributes Max power: 8,800 W Max current: 12.9 A Number of phases: 3 System Max efficiency: 98% IP rating: IP65 Dimensions & Weight Dimensions (H x W x D): 503 x 503 x 199 mm Weight: 30 kg

SolaX X3 G4-V2 Hybrid 3 Phase Inverter HV 10.0kW #2: X3-HYBRID-G4-10.0-V2#3: 4574 SolaX X3 Hybrid Data Sheet SolaX X3 Hybrid Manual SolaX X3 Hybrid Warranty SolaX X3 Hybrid G100 Certificate For a full list of SolaX products click here. SolaX X3 10.0kW Hybrid Inverter High Efficiency Supports 150% PV oversizing and 110% overload output Maximum 150% overload output High efficiency for charging and discharging, up to 97.5% Built-in shadow tracking function for optimal energy harvest Economic Performance Maximum 16A DC input current, compatible with high-power solar panels Stores surplus PV energy to the battery Low start output voltage extends inverter working time Minimal energy loss from battery to inverter Intelligent Features Switchover time: <10ms for uninterrupted power Quick configuration via U-disk Compatible with Lithium and Lead-acid batteries CT compatible, with loads responding within 0.3s Intelligent load management (e.g., heat pumps) On & Off-grid parallel function, scalable up to 150kW 5 work modes, 2 charging periods available VPP ready, supports ancillary services in power markets Three-phase unbalanced output: up to 50% nominal output on a single phase Connectivity Wi-Fi included with Solax X3-Hybrid-G4 V2 – no additional equipment required Specifications Weight: 34 kg Rated Power: 10,000 W Min PPT Voltage: 180 V Max PPT Voltage: 950 V DC Startup Voltage: 200 V DC Shutdown Voltage: 0 V Max Input Voltage: 950 V Max DC Power: 10,000 W Max AC Power (5 min): 10,001 W Surge AC Power (1 sec): 10,002 W Max DC Current: 24 A Max DC Inputs: 2 DC Fuses: None Connector: SUNCLIX Included Connectors: 0 Euro Efficiency: 97% Transformer: HF

SolaX X3 G4 Hybrid Inverter12.0D #3: 4575 SolaX X3 Hybrid Data Sheet SolaX X3 Hybrid Warranty SolaX X3 Hybrid G100 Certificate For a full list of SolaX products click here.   SolaX X-Hybrid 4th Generation – Three-Phase Hybrid Inverter Overview The SolaX X-Hybrid 4th Generation builds on the proven features of the previous generation, offering enhanced performance and improved functionality. This hybrid solar PV inverter and battery storage controller allows for efficient conversion of solar energy while storing surplus energy in batteries for later use. When retrofitting, it replaces your existing inverter and must be sized like a standard inverter. AC Attributes Maximum Power: 12,000 W Maximum Current: 19.3 A Number of Phases: 3 DC Attributes Maximum Power: 18,000 W Maximum Short-Circuit Current (Isc): 20 A Maximum Voltage: 1,000 V Start-Up Voltage: 200 V Key Benefits Hybrid functionality for simultaneous solar generation and battery storage Compatible for retrofit or new installations Efficient energy management across AC and DC inputs Suitable for medium to large-scale residential or commercial installations This inverter is ideal for homeowners or businesses looking for flexible hybrid energy solutions with high efficiency and scalable battery integration.

SolaX Triple Power T30 3.0kWh Battery Module #2: HV10230 Storage Systems - Li-ion Battery Pack   SolaX Triple Power 3.0kWh Data Sheet SolaX Triple Power Manual Important Note This listing is for the battery module only. A Battery Management System (BMS) is required for operation and must be purchased separately (T30 Battery BMS or MC0600). Features Battery Chemistry: Lithium Iron Phosphate (LiFePO4) Capacity: 2,500 Wh (2.5 kWh) Nominal Voltage: 102 V Safest LiFePO4 technology with 30 Ah cells Depth of Discharge: 90% Smart temperature balancing for enhanced safety and efficiency Working Temperature Range: -30°C to 50°C Cycle Life: > 6,000 cycles IP65 Protection – dust and water resistant Low self-consumption Quick and easy installation Performance Specifications Continuous Discharge Rate (Normal Use): 3,072 W Maximum Discharge Rate (5 Minutes): 3,072 W Surge Discharge Rate (15 Seconds): 3,100 W Maximum Charge Rate (5 Minutes): 3,072 W Weight: 34.5 kg Summary This Solax Triple Power 2.5kWh LiFePO4 battery module is a high-performance, safe, and compact storage solution. When paired with a compatible BMS, it is ideal for scalable solar energy storage setups. For a full list of SolaX products click here.

Solax T30 Battery BMS #2: MC0600  Storage Systems - Communication Module   SolaX Triple Power 3.0kWh Data Sheet SolaX Triple Power Manual SolaX Triple Power Warranty Solax Triple Power Battery BMS Overview The Solax Battery Management System (BMS), model MC0600, is designed for use with 1 to 4 Solax Triple Power 3.0kWh batteries. It ensures safe operation, maximizes battery life, and protects against overcharge, over-discharge, and other potential hazards. Key Features Compatible with 1–4 Solax Triple Power 3.0kWh batteries Safest LiFePO4 chemistry (30 Ah) for reliable and safe energy storage Wide operating temperature range: -30°C to 50°C Cycle life: over 6,000 cycles IP65 protection: suitable for indoor or outdoor installation Low self-consumption for efficiency Quick and easy installation Free from toxic heavy metals, environmentally safe Specifications Weight: 7.5 kg Protection Rating: IP65 Battery Type: LiFePO4 Max Batteries Supported: 4 The MC0600 BMS provides a robust, safe, and efficient solution to manage your Solax battery system while maintaining optimal performance over its lifecycle. For a full list of SolaX products click here.

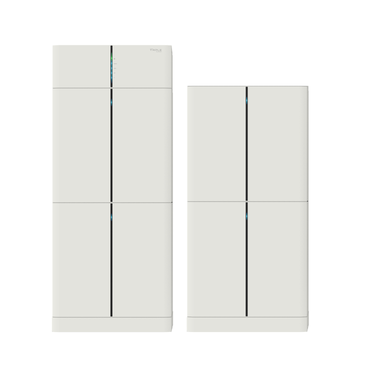

SolaX Triple Power 3.0kWh battery stack with BMS #2: T-BAT-H-3.0 #3: 4446 and 4502 (combined) SolaX Triple Power Data Sheet SolaX Triple Power Manual SolaX Triple Power 3.0kWh Battery Kit Experience the next generation of residential energy storage with the SolaX Triple Power 3.0kWh battery. Designed for flexibility, efficiency, and reliability, this battery is ideal for homeowners looking to maximise their solar energy usage and gain energy independence. Key Features High-Performance Lithium Battery Fully charges in just one hour for rapid energy availability Wide temperature tolerance for stable performance in varying conditions Scalable design: connect up to four batteries for a 12kWh system (depending on inverter compatibility) Plug-and-play installation with included cable kit Integrated Battery Management BMS Master Box included for safe and efficient battery control Wall mounting bracket and battery base ensure secure installation Smart monitoring and protection for long-term reliability Kit Components Included in the TP3.0 Kit 1 x SolaX Triple Power 3.0kWh Battery 1 x SolaX Master Box BMU 1 x Cable Kit Benefits Ideal for enhancing solar self-consumption and backup power Safe, reliable, and low-maintenance energy storage solution Compatible with SolaX G4 systems and most hybrid inverters For a full list of SolaX products click here.

SolaX Triple Power 6.0kWh battery stack with BMS #2:T-BAT-H-6.0 Storage Systems - Li-ion Battery Pack   SolaX Triple Power 3.0kWh Data Sheet SolaX Triple Power Manual SolaX Triple Power 6.0kWh Battery Stack with BMS Upgrade your home or commercial energy storage system with the SolaX Triple Power 6.0kWh battery stack, designed for high efficiency, safety, and scalability. This kit combines two 3.0kWh batteries with an integrated Battery Management System (BMS), providing reliable energy storage and smart system control. Key Features Advanced LiFePO4 Battery Technology Safest LiFePO4 chemistry with 30 Ah capacity Cycle life > 6,000 cycles for long-term performance Smart temperature balancing for optimal operation Wide operating temperature range: -30°C to 50°C IP65 protection for all-weather durability Efficient and Easy-to-Install Low self-consumption maximises energy efficiency Quick plug-and-play installation saves time and effort Compatible with SolaX inverters for seamless integration Kit Components Included in the 6.0kWh Stack 2 x SolaX Triple Power 3.0kWh Batteries (HV10230) 1 x SolaX Triple Power 3.0 BMS (MC0600) Specifications Weight: 76.5 kg Rated Power: 6,000 W Battery Type: Lithium Ion Nominal Energy: 6,100 Wh Depth of Discharge: 90% Voltage: 204 V Continuous Discharge Rate (Normal Use): 6,000 W Maximum Discharge Rate (5 Minutes): 5,500 W Surge Discharge Rate (15 Seconds): 8,000 W Maximum Charge Rate (5 Minutes): 6,100 W Benefits Scalable solution for home or commercial solar systems Safe, high-performance battery chemistry ensures reliability Real-time system management through integrated BMS Durable and weather-resistant for long-term outdoor or indoor use For a full list of SolaX products click here. Enhance your solar energy system with SolaX battery Triple Power T30 6.0kWh battery stack, featuring advanced BMS for optimal performance.

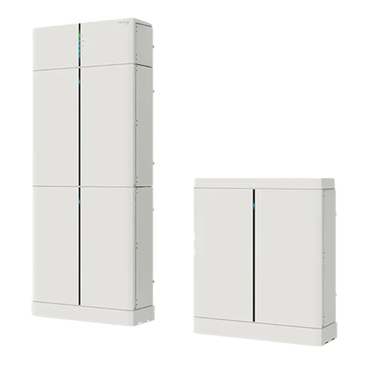

SolaX Triple Power 9.0kWh battery stack with BMS and base kit # 3: 3T-BAT-SYS-HV-3.0+BMU & T-BAT-3-4-BASE-KIT SolaX Triple Power Data Sheet SolaX Triple Power Manual SolaX Triple Power 3.0kWh Residential Battery Kit Upgrade your home energy storage with the SolaX Triple Power 3.0kWh (TP3.0) batteries, engineered for high performance and flexible integration with the G4 inverter system. These batteries feature fast one-hour charging and wide temperature tolerance, ensuring reliable and efficient energy management for modern solar PV systems. Key Features High-Performance Energy Storage Fast charge: fully charges in just one hour Wide operating temperature range for year-round reliability Compatible with SolaX G4 inverter systems Scalable System Design Connect up to four TP3.0 batteries for a 12kWh storage system (depending on inverter compatibility) Modular design allows easy expansion as energy requirements grow Kit Components Included in the 3-Battery Kit 3 x SolaX Triple Power 3.0kWh Batteries 1 x SolaX Master Box BMU (Battery Management Unit) 1 x SolaX Battery Base 1 x Triple Power X-ESS 3 and 4 battery install kit (cables and base) Triple Power 3 & 4 Battery Installation Pack Battery Base Wall Mounting Plate Top Cover Power Cable 1.2m Communication Cable 1.2m Small Parts & Earth Cable Power Cable 1.8m

SolaX Triple Power 12.0kWh battery stack with BMS and base kit #3: 4T-BAT-SYS-HV-3.0+BMU & T-BAT-3-4-BASE-KIT SolaX Triple Power Data Sheet SolaX Triple Power Manual   SolaX Triple Power 3.0kWh Residential Battery Kit Experience the future of residential energy storage with the SolaX Triple Power 3.0kWh (TP3.0) batteries. Designed for high performance, these batteries offer fast charging, wide temperature tolerance, and flexible system expansion, making them ideal for modern solar PV installations. Key Features High-Performance Energy Storage Fast charge capability: fully charge in just 1 hour Wide operating temperature tolerance for reliable performance in diverse climates Compatible with SolaX G4 inverter systems Scalable System Design Connect up to four TP3.0 batteries to create a 12kWh system (depending on inverter compatibility) Modular design allows easy expansion as energy needs grow Included in the Kit Battery Components 4 x SolaX Triple Power 3.0kWh Batteries 1 x SolaX Master Box BMU (Battery Management Unit) 1 x SolaX Battery Base 1 x Four-Battery Kit Installation Pack 3 & 4 Battery Installation Pack Battery Base Wall Mounting Plate Top Cover Power Cable 1.2m Communication Cable 1.2m Small Parts & Earth Cable Power Cable 1.8m Benefits Rapid, reliable charging to maximise self-consumption Fully integrated BMS Master Box ensures safe and efficient battery operation Flexible installation options with included mounting hardware and cabling

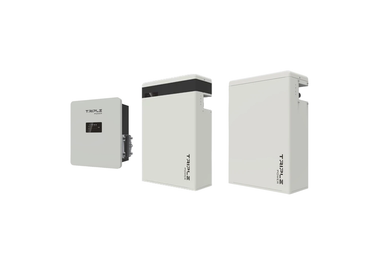

SolaX BMS Parallel Box with Triple Power T58 HV 23.2kWh #2:SOLAX-BMS-G2-HV-T58-2-11.6 - Li-ion Battery Pack SolaX BMS Parallel Box II G2 Data Sheet SolaX BMS Parallel Box II G2 Manual SolaX Triple Power T58 Installation Manual For a full list of SolaX products click here. SolaX BMS Parallel Box with Triple Power T58 HV 11.6kWh Overview The SolaX BMS Parallel Box is a cutting-edge battery management system, designed to enable the parallel connection of multiple batteries for enhanced energy efficiency and optimised usage. Built with state-of-the-art technology and robust construction, this solution is ideal for both residential and commercial installations. Kit Includes 1 × SolaX Triple Power 5.8kWh LFP Extension Battery SLAVE V2 (HV11550-58-SLAVE-V2) 1 × SolaX Triple Power 5.8kWh LFP Main Battery MASTER V2 (HV-T-BAT-H-58-MASTER-V2) 1 × SolaX BMS Parallel Box (SOLAX-BMS-PB-G2) T58 System Configurations X1 – Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries X3 – Three Phase: 4, 6 or 8 Triple Power 5.8kWh batteries Notes: The G1 BMS Parallel Box is incompatible with T58 Master batteries; the G2 BMS Parallel Box supports retrofitting to existing systems. Minimum requirements: 2 batteries for single-phase setups, 4 batteries for three-phase setups. Specifications Weight: 153.1 kg Battery Type: Lithium Ion Nominal Energy: 11,600 Wh Depth of Discharge: 90% Voltage: 230 V Continuous Discharge Rate (Normal Use): 5,750 W Maximum Discharge Rate (5 Minutes): 3,500 W Surge Discharge Rate (15 Seconds): 800 W Maximum Charge Rate (5 Minutes): 3,500 W

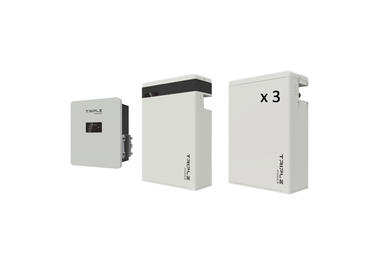

SolaX BMS Parallel Box with Triple Power T58 HV 23.2kWh #2: SOLAX-BMS-G2-HV-T58-4-23.2- Li-ion Battery Pack SolaX BMS Parallel Box II G2 Data Sheet SolaX BMS Parallel Box II G2 Manual SolaX Triple Power T58 Installation Manual *Collections are not permitted due to health & safety regulations* SolaX BMS Parallel Box with Triple Power T58 HV 23.2kWh The Solax BMS Parallel Box is an innovative battery management system. It facilitates the smooth parallel connection of multiple batteries, for optimal energy use and improved efficiency. With state-of-the-art technology and durable construction, this parallel box is an ideal option for both residential and commercial purposes. This Kit includes: 3 x SolaX Triple Power 5.8kWh LFP Extension Battery SLAVE V2 (HV11550-58-SLAVE-V2) 1 x SolaX Triple Power 5.8kWh LFP Main Battery MASTER V2(HV-T-BAT-H-58-MASTER-V2) 1 x SolaX BMS Parallel Box (SOLAX-BMS-PB-G2) For a full list of SolaX products click here. Possible T58 System Configurations X1 - Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries.  X3 - Three Phase: 4, 6, 8 Triple Power 5.8kWh batteries.  Please note: The G1 BMS Parallel Box does not work with the T58 Master battery but the G2 BMS does, making it easier to retrofit to an existing system. A minimum of 2 batteries (single phase) and 4 batteries (three-phase) must be used with this product.   Weight: 297.5kg Battery Type: Lithium Ion Nominal Energy: 23,200Wh Depth of discharge: 90.00 % Voltage: 460 V Continuous Discharge Rate (Normal Use): 1,150 W Maximum Discharge Rate (5 Minutes): 3,500 W  Surge Discharge Rate (15 Seconds): 16,000 W Maximum Charge Rate (5 Minutes): 3,500 W

SolaX BMS Parallel Box with Triple Power T58 HV 34.8kWh #2: SOLAX-BMS-G2-HV-T58-6-34.8 Storage Systems - Li-ion Battery Pack SolaX BMS Parallel Box II G2 Data Sheet SolaX BMS Parallel Box II G2 Manual SolaX Triple Power T58 Installation Manual *Collections are not permitted due to health & safety regulations* SolaX BMS Parallel Box with Triple Power T58 HV 34.8kWh The Solax BMS Parallel Box is an innovative battery management system. It facilitates the smooth parallel connection of multiple batteries, for optimal energy use and improved efficiency. With state-of-the-art technology and durable construction, this parallel box is an ideal option for both residential and commercial purposes. This Kit includes: 5 x SolaX Triple Power 5.8kWh LFP Extension Battery SLAVE V2 (HV11550-58-SLAVE-V2) 1 x SolaX Triple Power 5.8kWh LFP Main Battery MASTER V2(HV-T-BAT-H-58-MASTER-V2) 1 x SolaX BMS Parallel Box (SOLAX-BMS-PB-G2) For a full list of SolaX products click here. Possible T58 System Configurations X1 - Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries.  X3 - Three Phase: 4, 6, 8 Triple Power 5.8kWh batteries.  Please note: The G1 BMS Parallel Box does not work with the T58 Master battery but the G2 BMS does, making it easier to retrofit to an existing system. A minimum of 2 batteries (single phase) and 4 batteries (three-phase) must be used with this product.   Weight: 441.9kg Battery Type: Lithium Ion Nominal Energy: 35,200Wh Depth of discharge: 90.00 % Voltage: 690 V Continuous Discharge Rate (Normal Use): 17,250 W Maximum Discharge Rate (5 Minutes): 3,500 W  Surge Discharge Rate (15 Seconds): 24,000 W Maximum Charge Rate (5 Minutes): 3,500 W

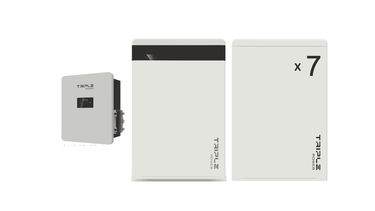

SolaX BMS Parallel Box with Triple Power T58 HV 46.4kWh #2: SOLAX-BMS-G2-HV-T58-8-46.4 Storage Systems - Li-ion Battery Pack SolaX BMS Parallel Box II G2 Data Sheet SolaX BMS Parallel Box II G2 Manual SolaX Triple Power T58 Installation Manual *Collections are not permitted due to health & safety regulations* SolaX BMS Parallel Box with Triple Power T58 HV 46.4kWh The Solax BMS Parallel Box is an innovative battery management system. It facilitates the smooth parallel connection of multiple batteries, for optimal energy use and improved efficiency. With state-of-the-art technology and durable construction, this parallel box is an ideal option for both residential and commercial purposes. This Kit includes: 7 x SolaX Triple Power 5.8kWh LFP Extension Battery SLAVE V2 (HV11550-58-SLAVE-V2) 1 x SolaX Triple Power 5.8kWh LFP Main Battery MASTER V2 (HV-T-BAT-H-58-MASTER-V2) 1 x SolaX BMS Parallel Box (SOLAX-BMS-PB-G2) For a full list of SolaX products click here. Possible T58 System Configurations X1 - Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries.  X3 - Three Phase: 4, 6, 8 Triple Power 5.8kWh batteries.  Please note: The G1 BMS Parallel Box does not work with the T58 Master battery but the G2 BMS does, making it easier to retrofit to an existing system. A minimum of 2 batteries (single phase) and 4 batteries (three-phase) must be used with this product.   Weight: 586.3kg Battery Type: Lithium Ion Nominal Energy: 46,400Wh Depth of discharge: 90.00 % Voltage: 920V Continuous Discharge Rate (Normal Use): 22,300 W Maximum Discharge Rate (5 Minutes): 3,500 W  Surge Discharge Rate (15 Seconds): 32,000 W Maximum Charge Rate (5 Minutes): 3,500 W

Solax Pocket WiFi stick #2 SOLAX-WIFI Display - Web Interfaces SolaX Pocket WiFi Plus V2.0 Dongle – Wireless Cloud Connectivity Enhance your SolaX solar inverter installation with seamless cloud monitoring using the SolaX Pocket WiFi Plus V2.0 Dongle. Perfect for situations where running a cable is impractical, this compact dongle connects your inverter wirelessly to your home router, enabling full access to the SolaX Cloud monitoring platform. Key Features Wireless Internet Connection: Easily connect your SolaX inverter to the cloud without running Ethernet cables. Improved Signal Coverage: External antenna boosts WiFi signal strength, ideal for attics, garages, or outbuildings. Plug & Play Installation: Quick setup with intuitive operation – no technical expertise required. Durable Design: IP65-rated protection ensures stability and reliability in challenging environments. Compatible Inverter Models: X1-Mini G3.0 and earlier X1-Boost G3.2 and earlier X1-Hybrid G4.0 and earlier X3-Mic / Pro G1 X3-Hybrid G4.1 and earlier Technical Specifications Protection Rating: IP65 Connectivity: WiFi, external antenna included Installation: One dongle required per inverter Meta Description:SolaX Pocket WiFi Plus V2.0 Dongle – wireless cloud connectivity for SolaX inverters. IP65-rated, easy plug & play setup with external antenna for enhanced WiFi signal.

Solax Pocket Wifi+LAN #2: SOLAX-WIFI-LAN Solax Data Sheet Solax WiFi Setting Instructions Solax Cloud Signing up Solax Warranty SolaX Internet Dongle – Connect Your Inverter to the Cloud Easily connect your SolaX inverter system to the SolaX Cloud with the SolaX Internet Dongle. This robust device allows both Ethernet and WiFi connections to your internet router, enabling stable and reliable communication for monitoring your solar energy system. Key Features Plug & Play Installation: Quick and easy setup for seamless connection. Dual Connectivity: Supports 10/100M Ethernet and 2.4GHz WiFi for versatile network options. IP65 Rated: Dustproof and water-resistant design ensures durability in outdoor environments. Stable Data Transmission: Reliable performance with offline data storage capability. Live Monitoring: 10-second real-time data updates for efficient system tracking. Protocol Support: Compatible with Modbus TCP and IEEE2030.5 for advanced communication. Important Information One Dongle per Inverter: Each SolaX inverter requires its own dongle. Lightweight Design: Only 0.8kg, compact and easy to install. Enhance Monitoring: Perfect for homeowners who want precise, real-time solar system insights via the SolaX Cloud. Stay connected and maximise your solar energy efficiency with the SolaX Internet Dongle.

SOLAX CTSA016 100A CT Clamp #2: CTSA016 CT Clamp for X1-AC   CTSA016 100A CT Clamp Installation Manual
