Sunsynk - Eastron - Digital Meter Kit - Three-Phase
- #20: E-METER3-SUNSYNK | Storage Systems | Storage Energy Meter
Eastron Digital Meter User Manual User Manual
Eastron Three Phase Meter Kit (V1, includes V2 Manual)

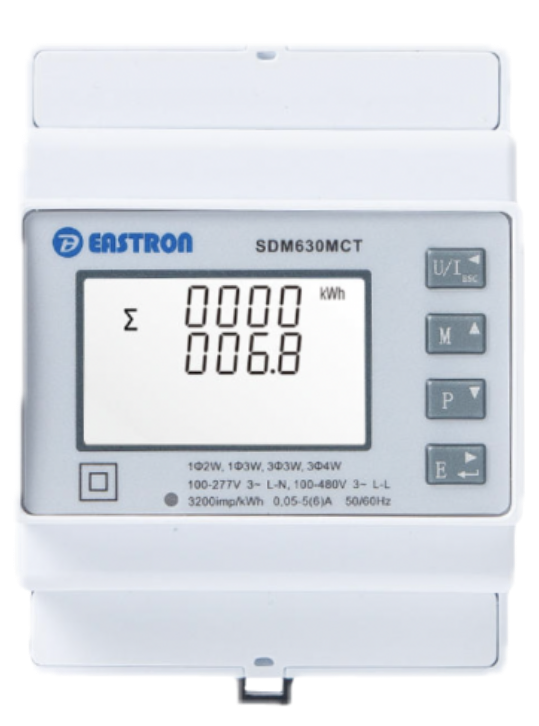

The Eastron SDM630MCT‑ETL Meter Kit is a high‑precision energy meter designed for reliable, real-time monitoring of electrical consumption. Paired with CT clamps, it enables detailed measurement of three-phase or single-phase systems. Ideal for solar PV installations, battery systems, micro‑grids, and advanced energy management setups.
This meter kit is tailored for the UK, compliant with ETL standards, and includes essential accessories to get you started.
What’s in the Box
-
1 × Eastron SDM630MCT‑ETL Meter
-
4 × CT clamps, rated 150 A / 1 A
-
Note for Sunsynk 3‑Phase Inverter Users:
The Sunsynk 3‑phase inverters include 4 × CT clamps rated 100 A / 50 mA (not 150 A /1 A). Please check compatibility before installation.
To Ensure CT clamp rating compatibility: The included 150 A / 1 A clamps suit most domestic and commercial setups, but some inverters (e.g. Sunsynk 3‑phase) expect 100 A / 50 mA clamps — double-check before installation.
Key Features
-
High‑accuracy CT metering for precise measurement
-
Support for three-phase or split-phase installations
-
ETL certified (ensuring safety and compliance)
-
Supplied manual in V2 version – easier to follow, more features
-
Downloadable original V1 manual for archival use
-
Robust construction for long-term reliability
-
Compatible with energy systems, inverters, and smart controllers
Technical Specifications
| Parameter |
Specification |
| Meter Model |
Eastron SDM630MCT‑ETL (V1) |
| CT Clamps Supplied |
4 × 150 A : 1 A clamps |
| Accuracy Class |
Typically ±0.5% (check manual) |
| Measurement Type |
AC current, voltage, power, energy |
| Supported System |
1‑phase, 3‑phase, split phase |
| Communication Interface (if any) |
(State if modbus/RS485 or pulse, as applicable) |
| Operating Temperature |
(Specify if known, e.g. –10 °C to +60 °C) |
| Enclosure / IP Rating |
(If applicable) |
| Power Supply |
(Voltage range) |
Why Choose the Eastron Three Phase Meter Kit
By combining high precision, UK warranty compliance, and full documentation support, this meter kit is an excellent addition to your energy monitoring setup.
Sunsynk products are automatically covered under warranty.
