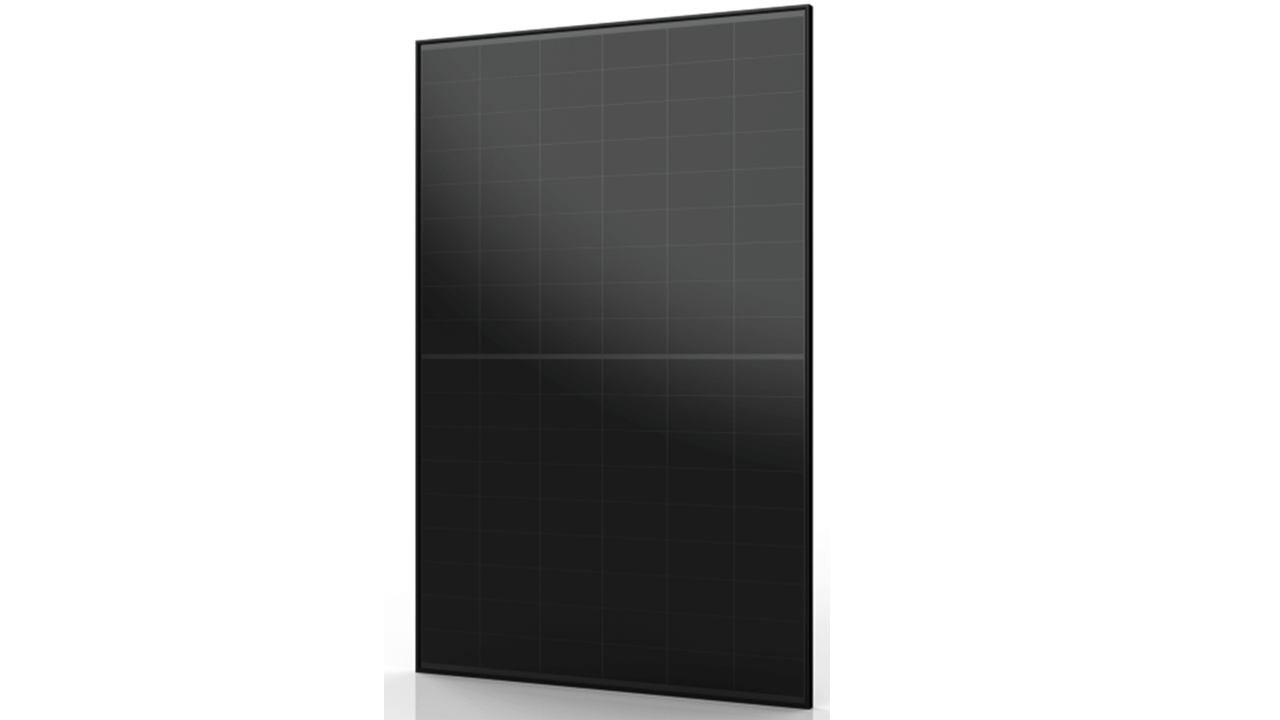

465W Aiko Neostar 2S N-Type ABC, 54 Cell, Mono Glass| All Black, Gen 2 | Cell-Level optimisation | Micro-crack resistant

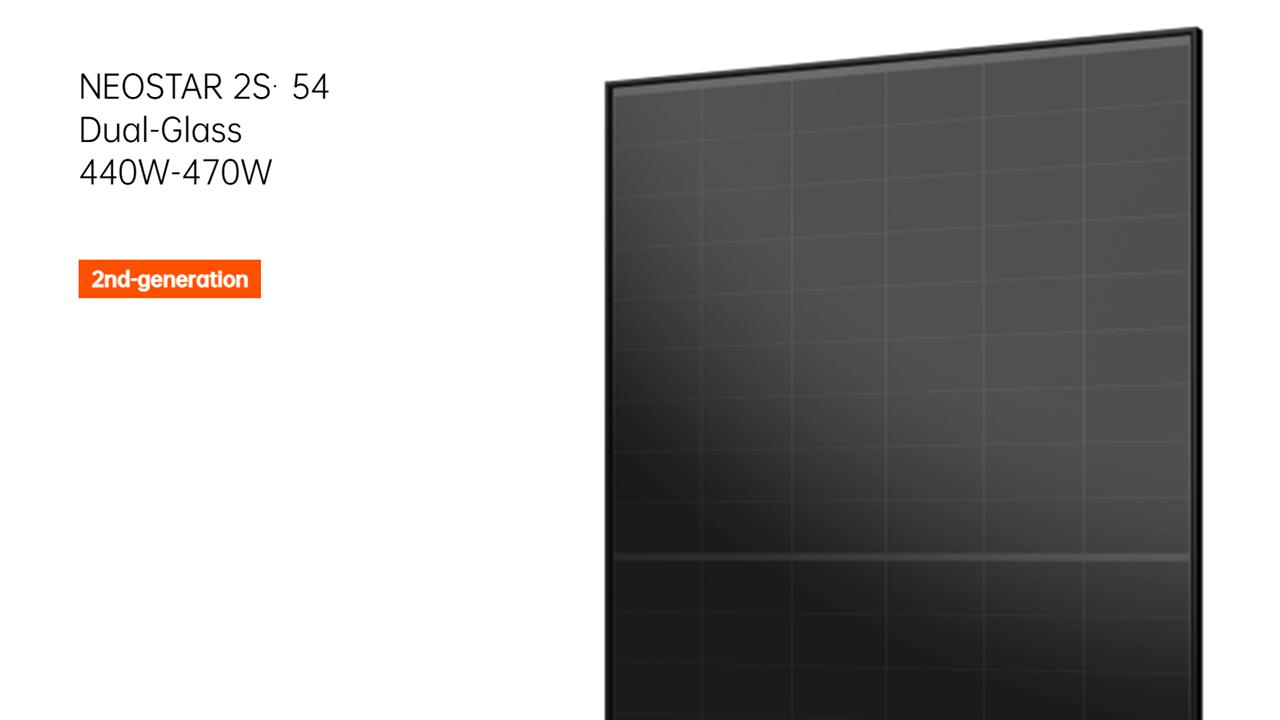

465W Aiko Neostar 2S N-Type ABC 54 Cell Mono Glass All Black Gen 2

#2: AIK-A-MAH54-465-AB-G2

Aiko 465W Datasheet

Aiko 465W Installation Manual

Aiko 465W Warranty

Aiko Certificate of Compliance

Minimum order for this panel: 1 panel

Aiko Neostar 2S N-Type ABC, 54 Cell, Mono Glass All Black

Aiko's All-Black 54-cell gen 2 panels are a result of cutting-edge technology, delivering a 23.6% efficiency rating. These sleek panels feature a blacked-out effect and bezel-less edge providing a stylish edge to the panel’s overall design. The AIKO 54 cell panel is perfect for residential homes looking for the highest efficiency available.

For not much more cost than budget panels you not only get the highest efficiency modules on the market and a 15 yr product warranty & 30yr performance warranty but also 2 very unique advantages over any other panels yet on the market:

• Aiko N-Type ABC modules are resistant to micro-cracks which can easily occur with regular modules and can significantly reduce performance
• Aiko N-Type ABC modules have Cell-level partial shade optimization which significantly reduces the impact of shading on the panels, which can happen from any number of reasons such as dirt, clouds trees etc.

Features

• 2023 Winner of Intersolar Innovation Award
• 2023 Red Dot Design Award and 2024 ESG transparency
• No.1 efficiency in the market
• Cell-level partial shade optimisation (one and only in the industry)
• High temperature restriction for fire safety
• Micro-crack resistance
• Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
• Elegant no-busbar look

Specs

• Weight: 21.5kg
• Rated Power: 465 W
• Efficiency: 23.3%
• Width: 1,134 mm
• Depth: 30 mm
• Length: 1,757 mm
• VMPP: 34.68 V
• IMPP: 13.41 A
• Isc: 14.29 A
• Voc: 41.12 V
• Temp. Coefficient (Mpp):-0.26 %
• Clamp position on panel: Long and short side
• Connector: EVO2
• Product Warranty: 15 Years
• Performance Warranty: 30 Years
